M80-32A

Female 12 AWG Right-Angled Solder Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

90° Angled Solder, suitable for 12 AWG cable.
Specified as 32A in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact area and termination.

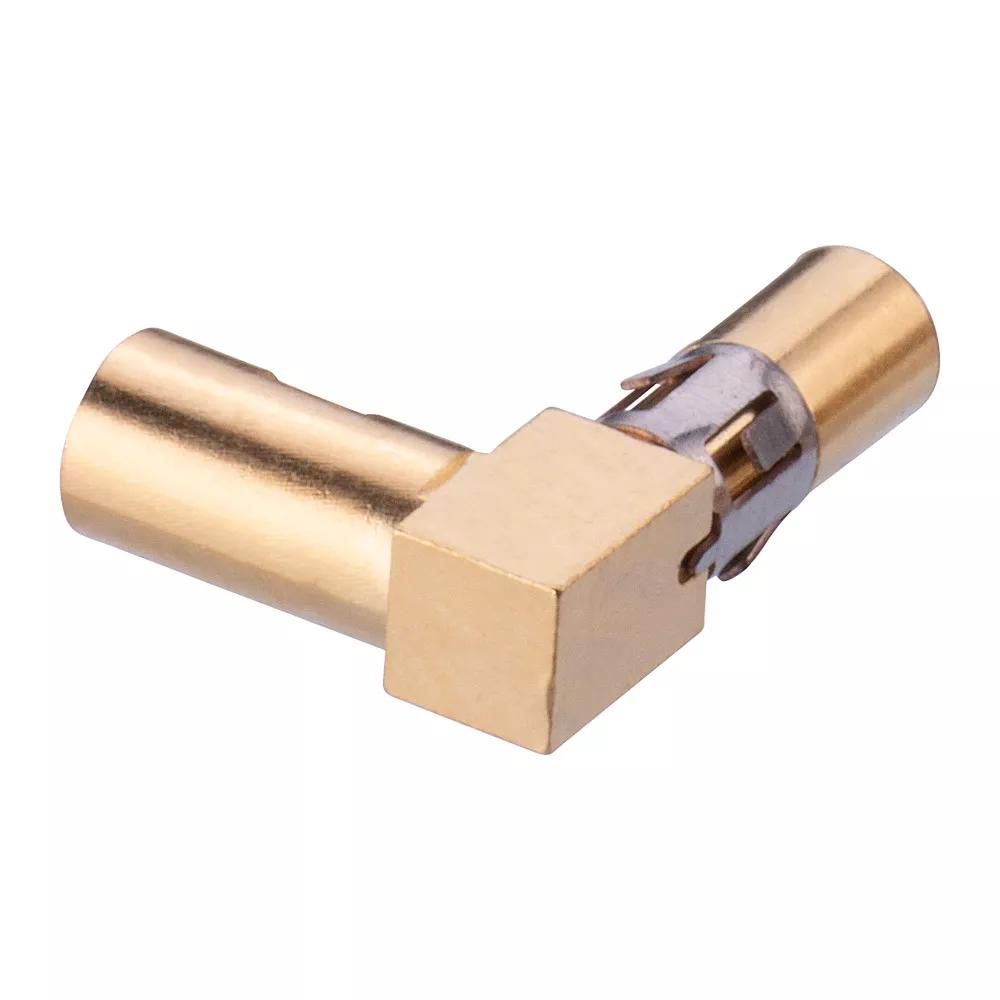

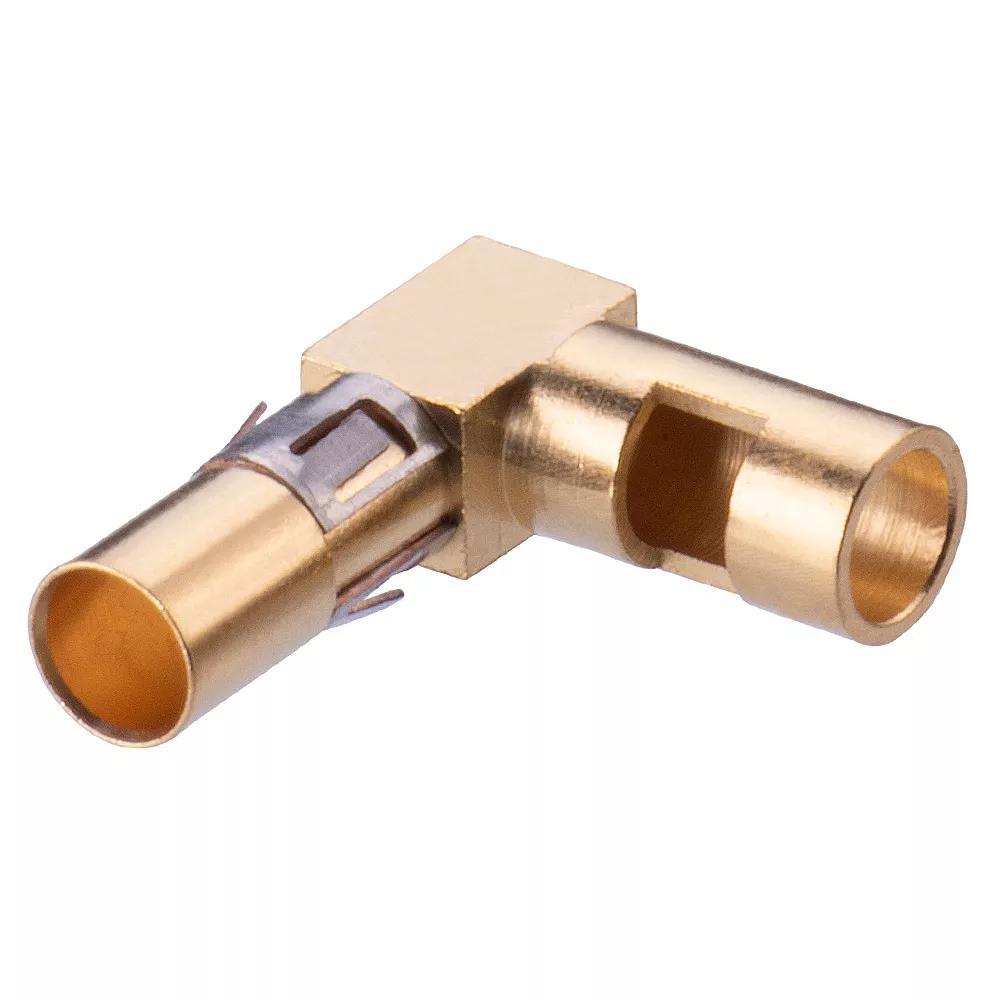

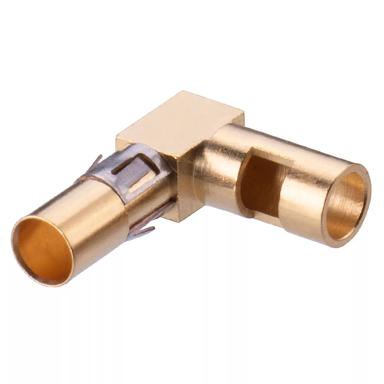

M80-32A - Female 12 AWG Right-Angled Solder Power Contact

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Solder)

Cable Conductor Size:

12 AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.727g

Overall Dimensions (L x W x D) in mm:

11.20 x 3.38 x 9.00

Frequently Asked Questions Ask a Question

There’s no specific orientation, you can use them with the cable exiting on whichever side of the housing works best for your application. You can even have them mixed in one housing if required.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
