Home > M80-319
Active

M80-319

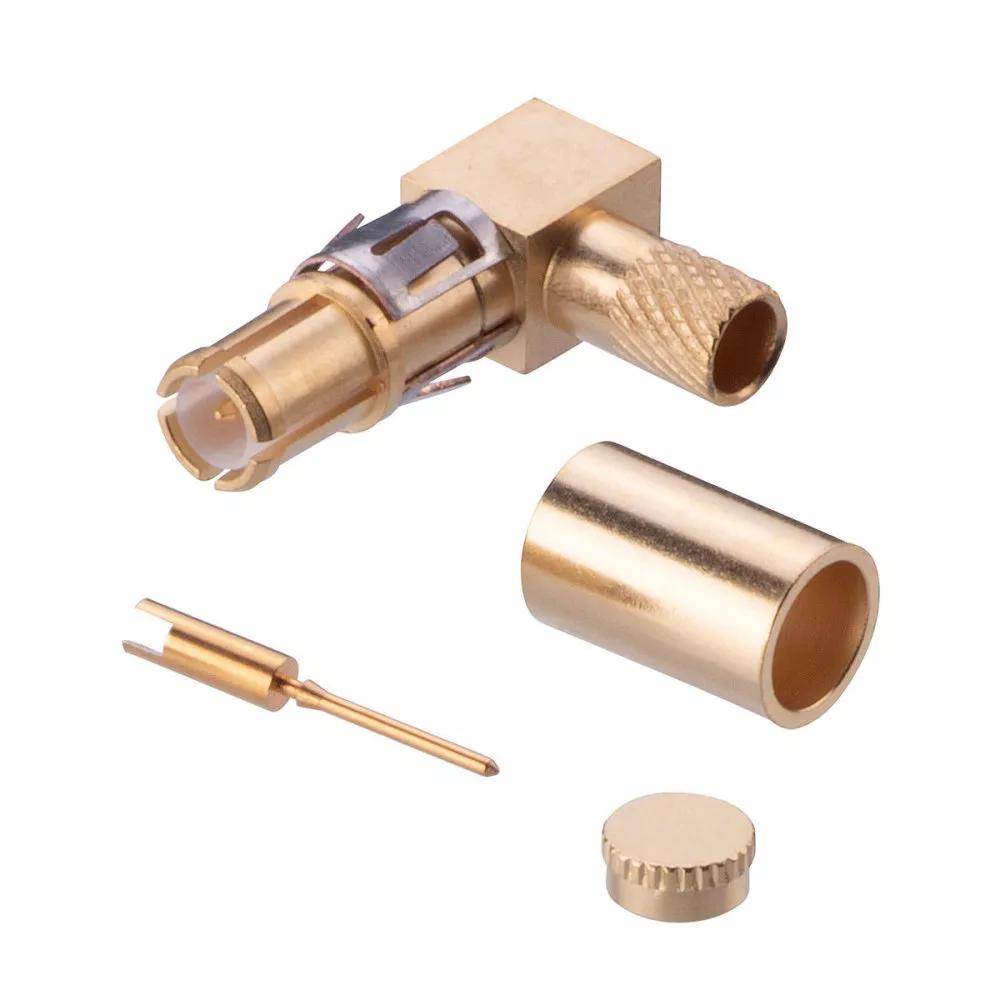

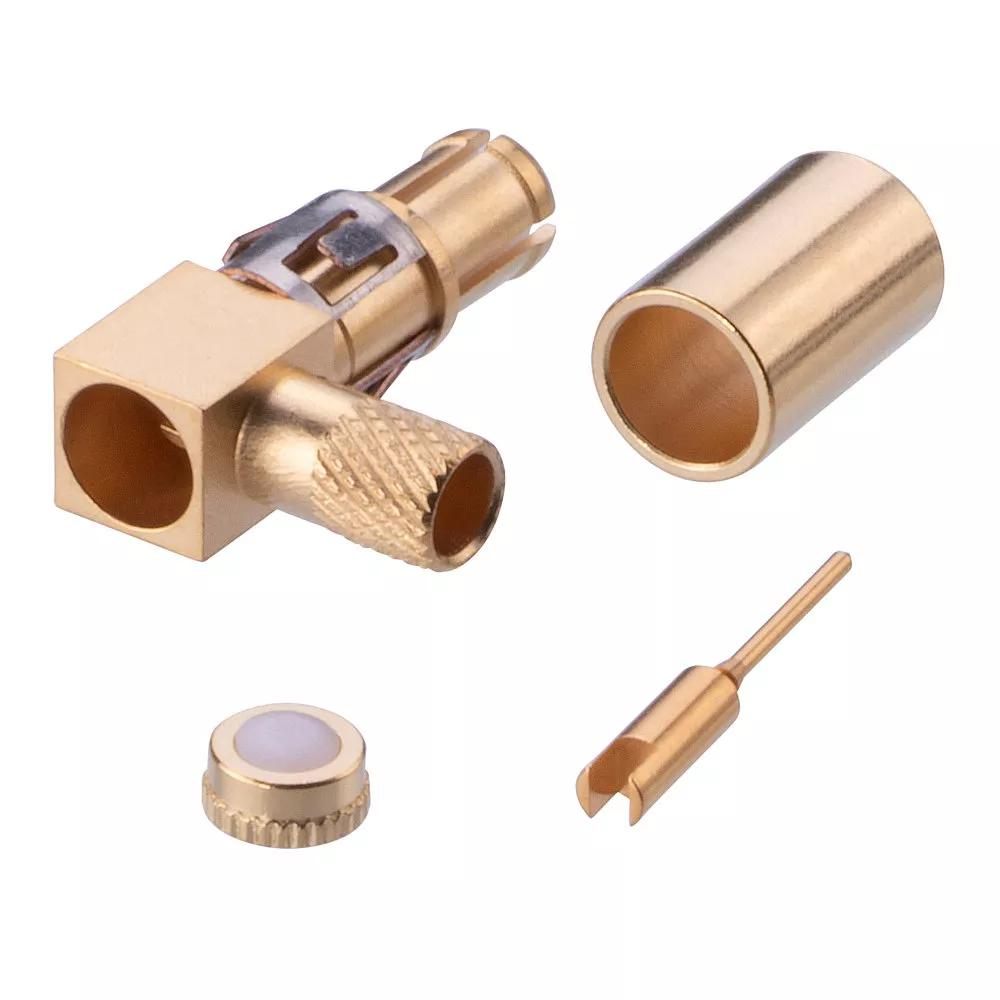

Male RG174-RG179-RG316 Right-Angled Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Coax

  • 90° Angled, suitable for Ø2.7mm coax cable (RG174, RG179, RG316). Solder to inner contact, crimp outer sleeve.
  • Specified as 319 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
  • Gold finish on contact areas and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Angled

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2.7mm (RG174, RG179, RG316)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Brass outer contact

Housing Material:

PTFE

Housing Colour:

White

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

0.548g

Overall Dimensions (L x W x D) in mm:

10.30 x 3.00 x 8.40

Availability

148 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 30
Distributor Newark
Location USA
Quantity (Updated Daily) 30
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 30
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 20
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 20
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 18
