M80-318

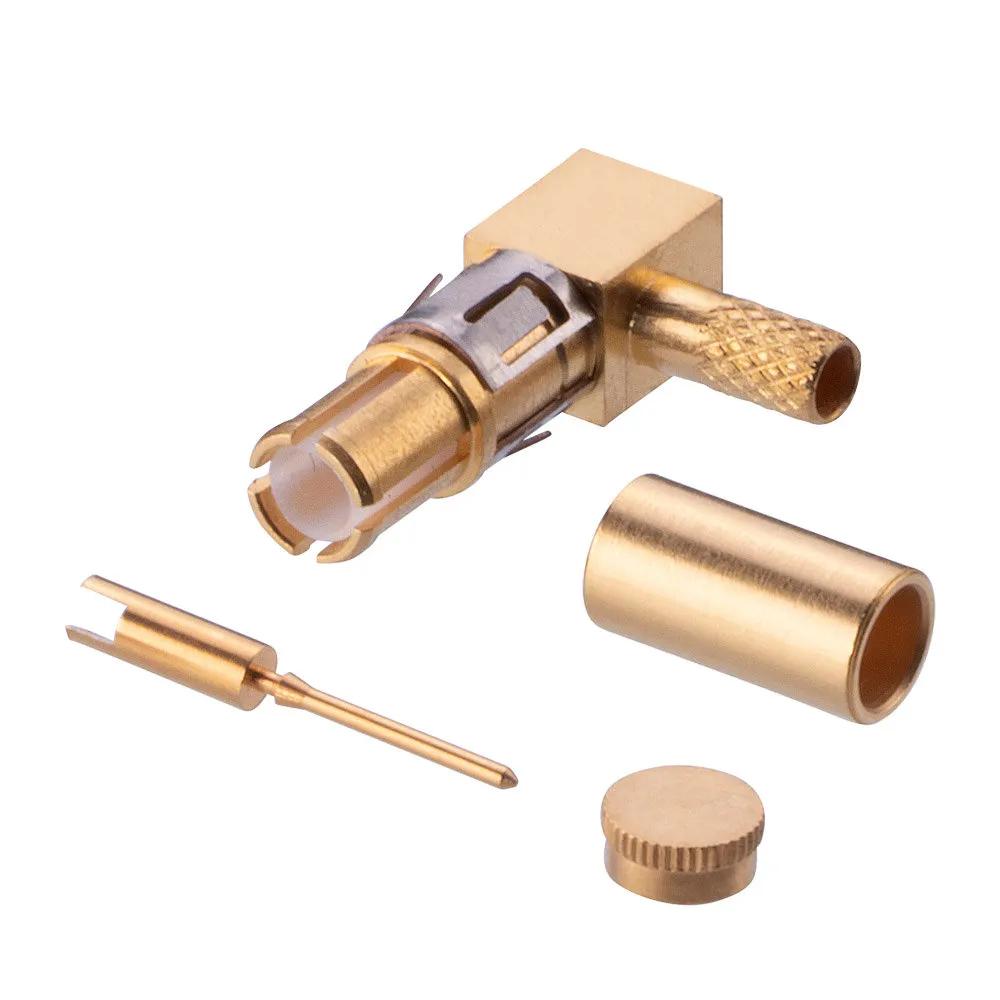

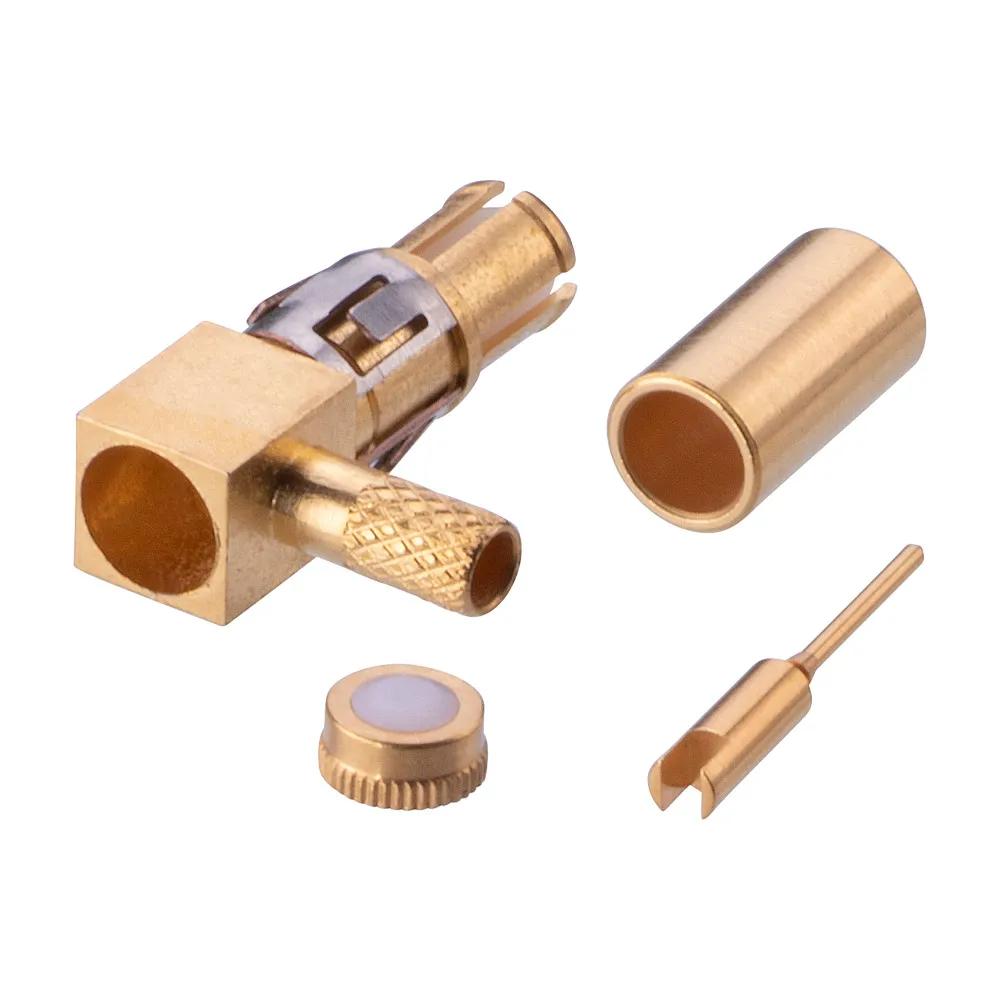

Male RG178 Right-Angled Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Coax

  • 90° Angled, suitable for Ø2mm coax cable (RG178). Solder to inner contact, crimp outer sleeve.
  • Specified as 318 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
  • Gold finish on contact areas and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Angled

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Brass outer contact

Housing Material:

PTFE

Housing Colour:

White

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

0.491g

Overall Dimensions (L x W x D) in mm:

10.30 x 3.00 x 8.40

Availability

180 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
