M80-317

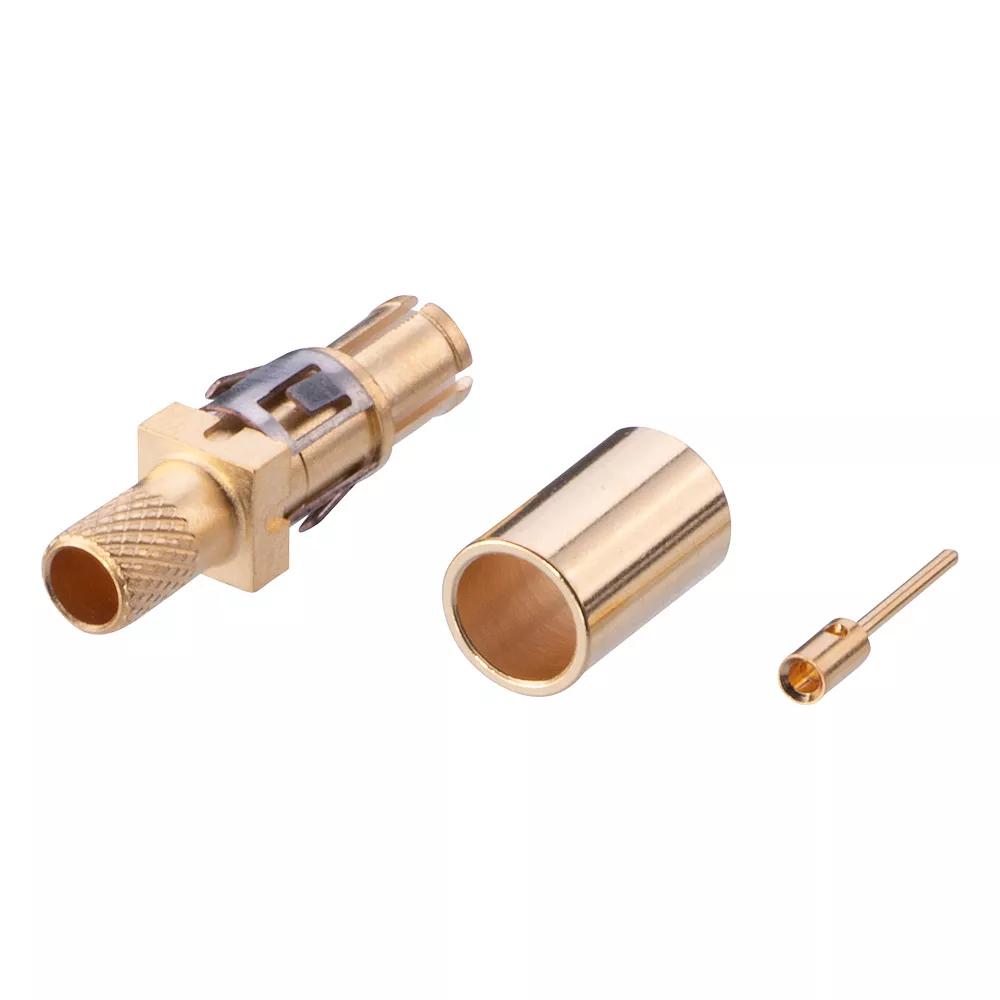

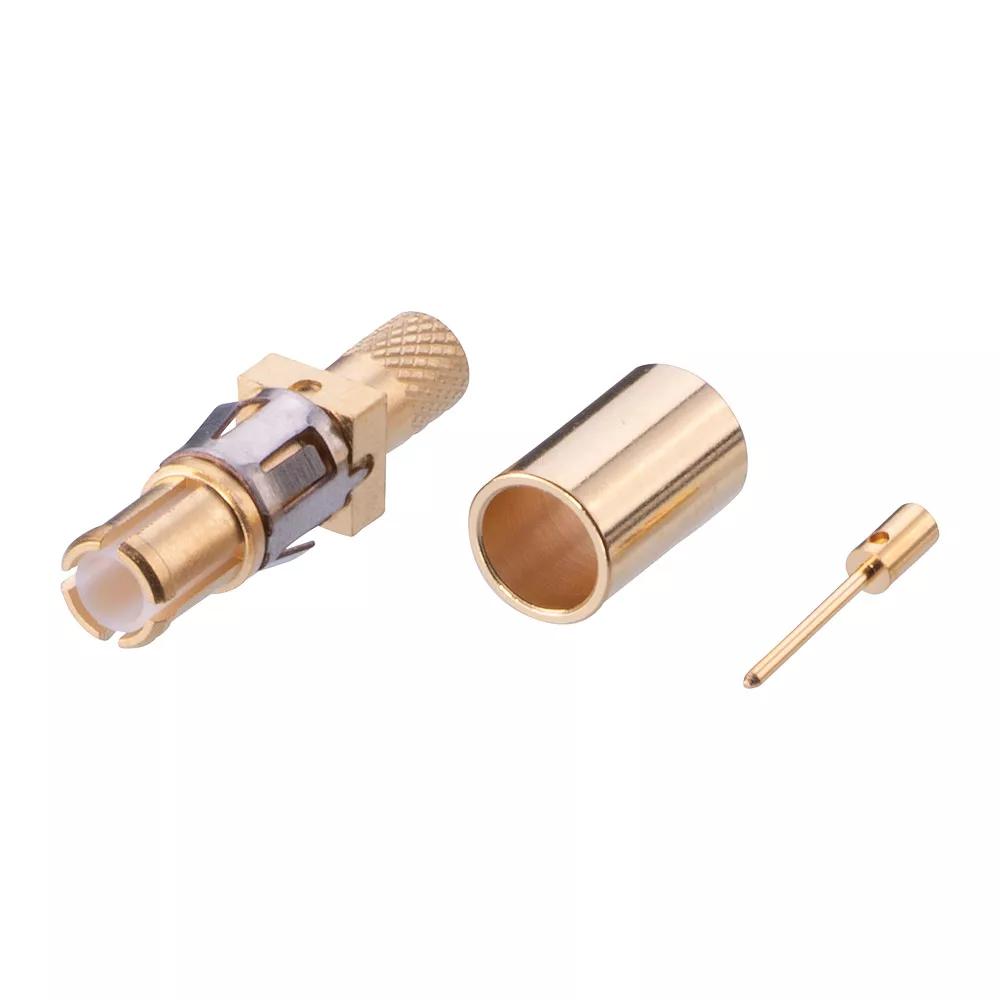

Male RG174-RG179-RG316 Straight Crimp Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Straight Crimp, suitable for Ø2.7mm coax cable (RG174, RG179, RG316).
  • Specified as 317 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
  • Gold inner contact pin, Gold outer shell.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2.7mm (RG174, RG179, RG316)

Current Rating:

0.5A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Brass outer contact

Housing Material:

PTFE

Housing Colour:

White

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

0.45g

Overall Dimensions (L x W x D) in mm:

13.40 x 3.00 square

Availability

5,489 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 899
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 54
Distributor Farnell
Location Europe
Quantity (Updated Daily) 30
Distributor Newark
Location USA
Quantity (Updated Daily) 30

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 4476

Questions & Answers Ask a Question

Instead of crimping, can we solder the inner contact?

I do not think this would be possible, sorry. The inner contact is very small, and I do not think you will be able to accurately solder it by hand. In addition, there is no solder cup, so I suspect that you will increase the size of the contact by adding a layer of solder outside and around the contact. This might mean it will not fit in the insulator. You are of course welcome to try it for yourself, to see if it is possible, but it is not something we have tried, as the design was not intended to be assembled this way.
