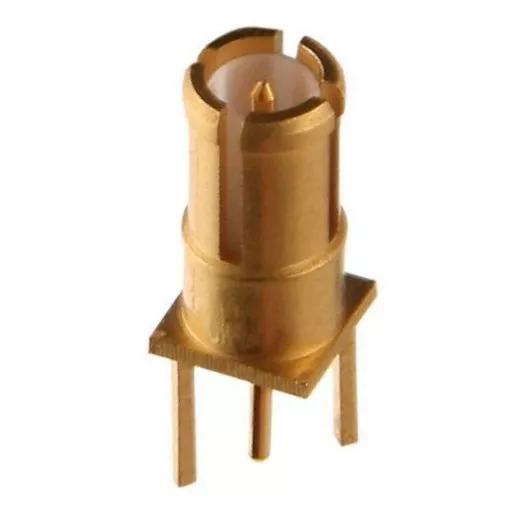

Male Vertical Throughboard Coax Contact
4.00mm Pitch High-Reliability Connector - Datamate Coax
Loading… Check availability
2 similar products View products
Traceparts account required
Product Description
- Vertical orientation with 3mm PC Tail.
- Specified as 311 in a Mix-Tek connector part number.
- Gold finish on contact areas and termination.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
0.5A per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze inner contact, Brass outer contact
Housing Material:
PTFE
Housing Colour:
White
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.126g
Overall Dimensions (L x W x D) in mm:
8.40 x 3.00 square
Height of Connector above PCB:
5.40mm
Length of Throughboard Tail:
3.00mm
