M80-310

Female Receptacle UT047 Right-Angle Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Coax

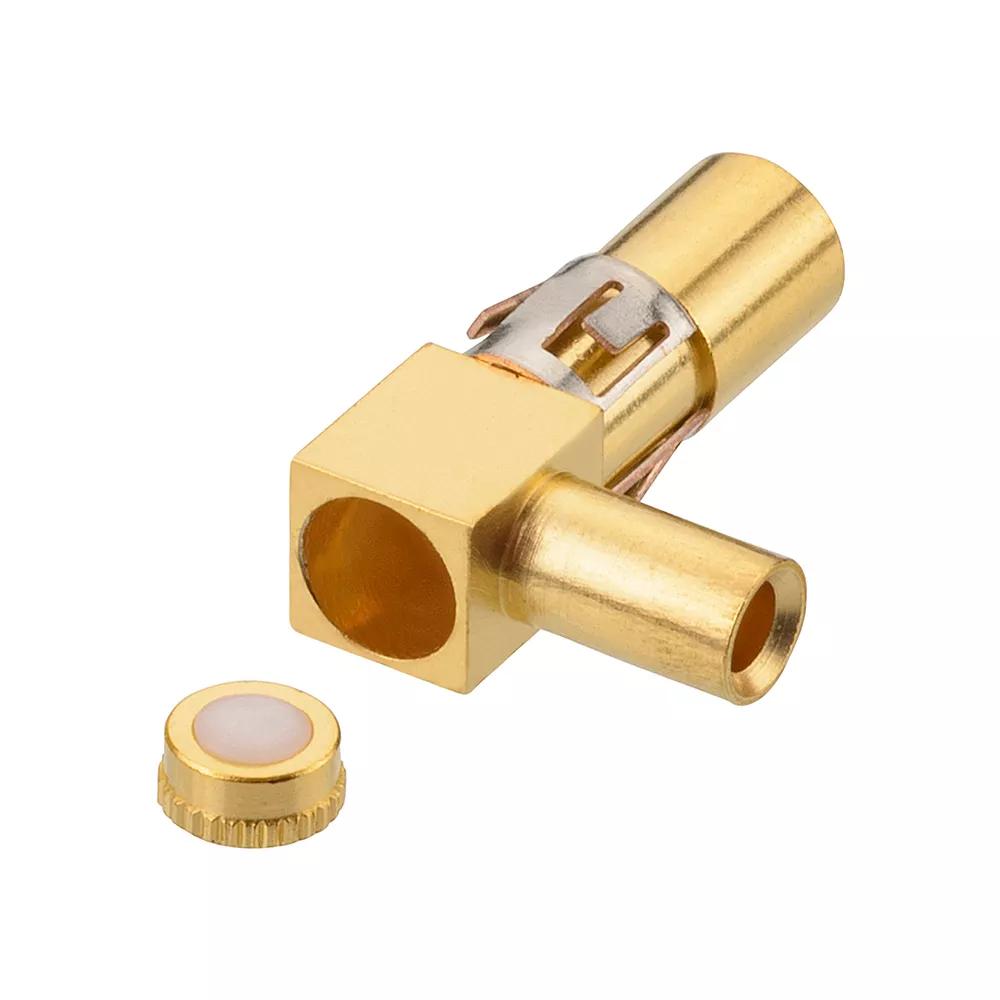

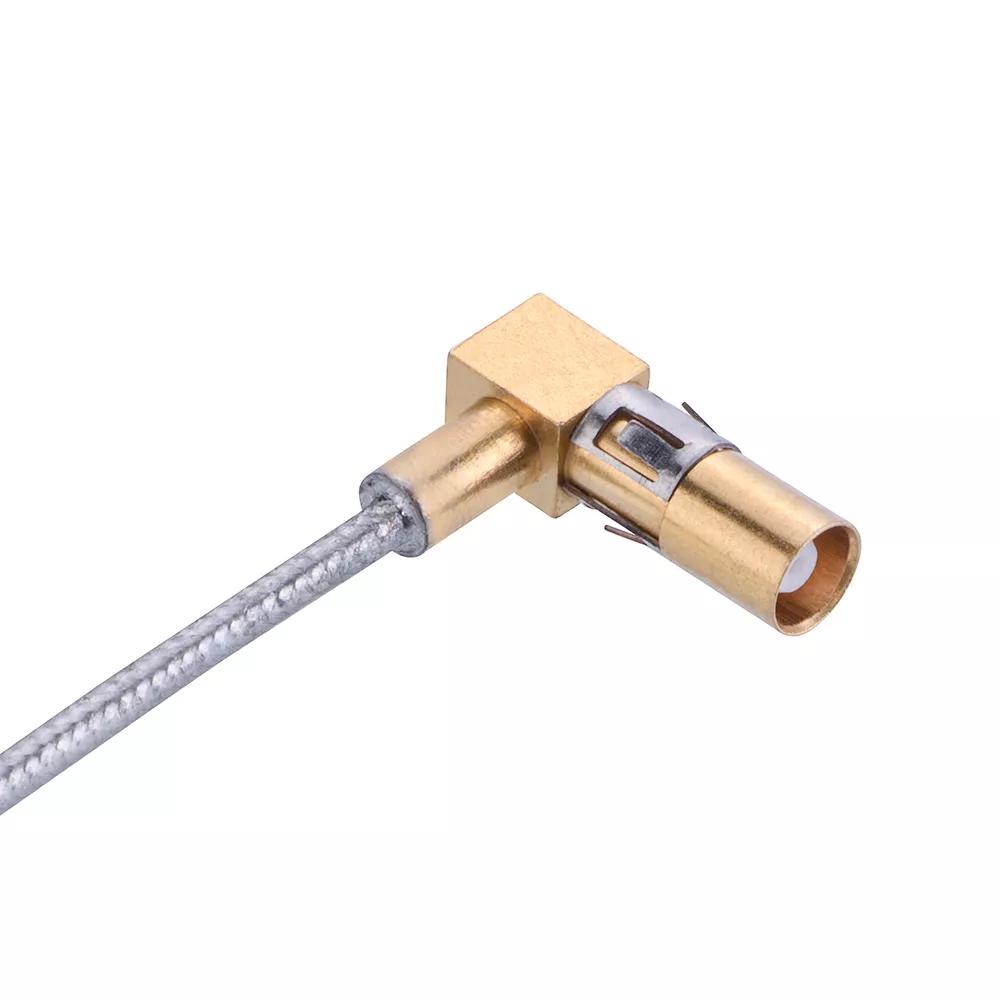

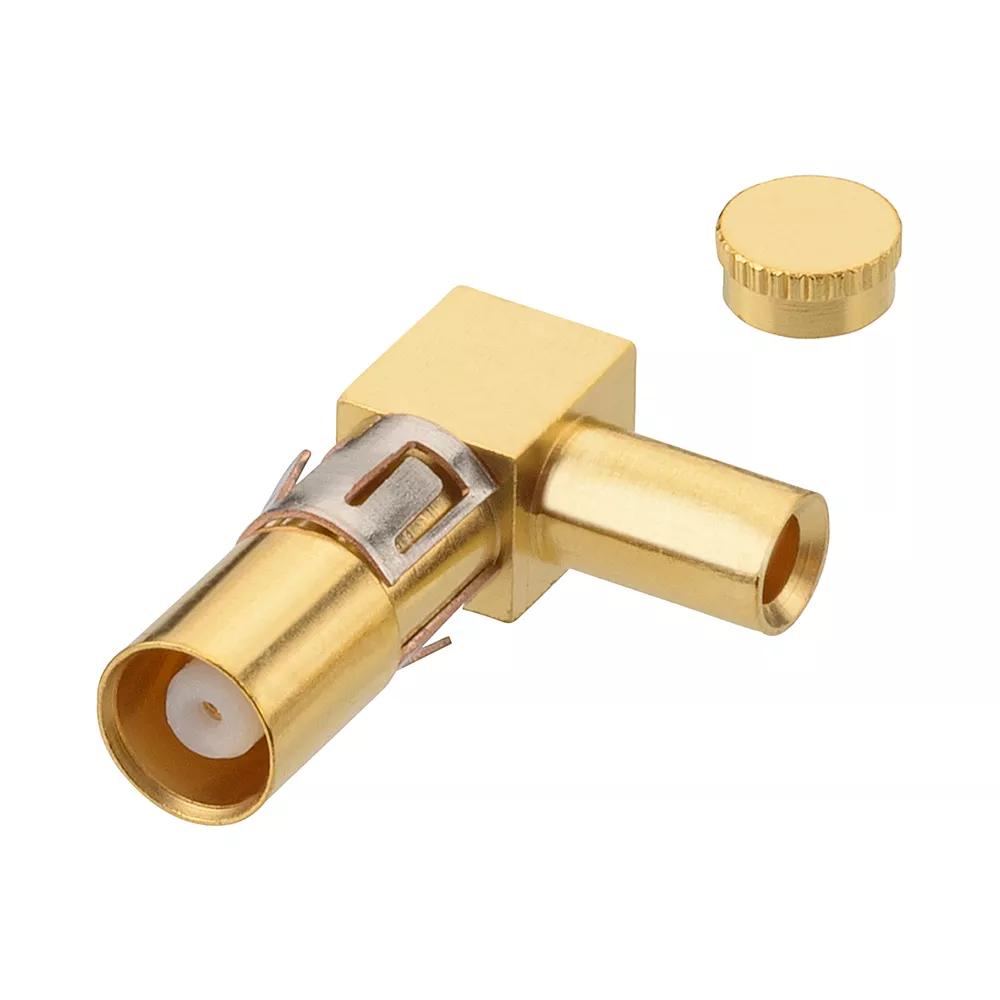

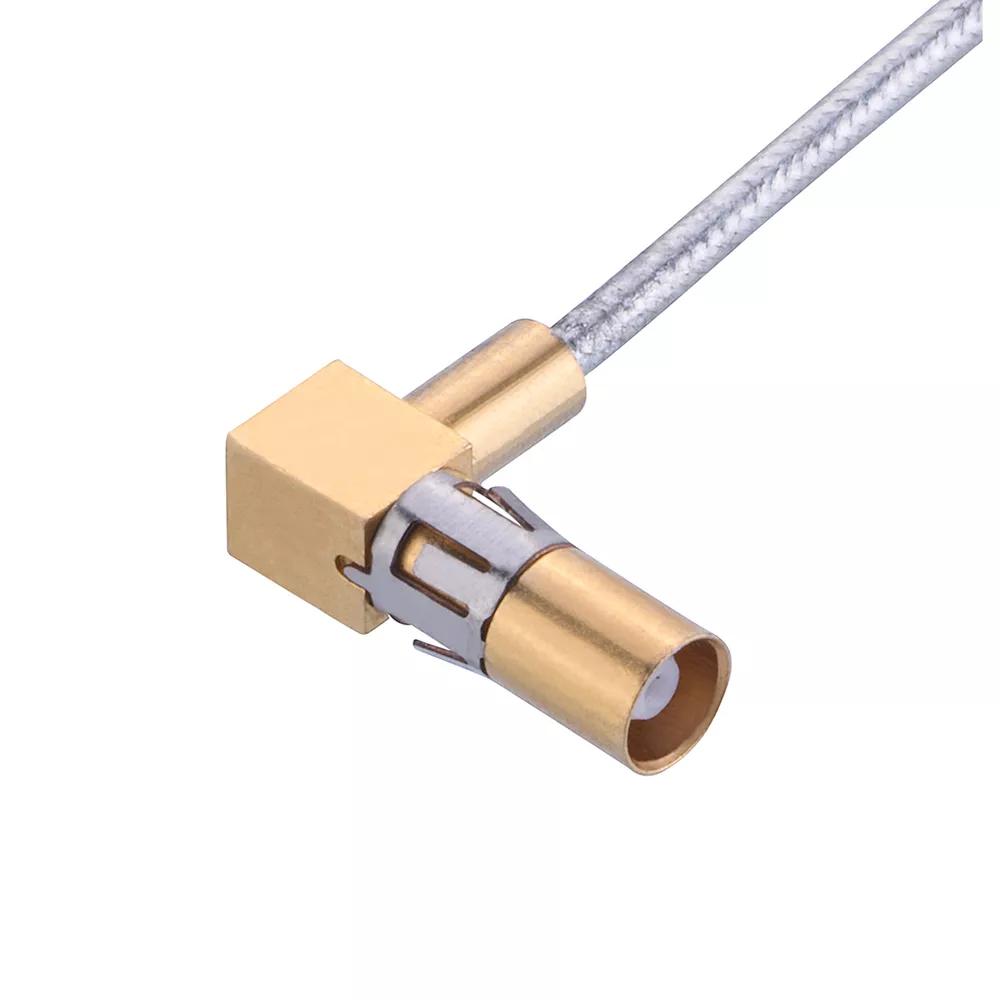

  • Individual right-angle female receptacle Coax solder contact, suitable for Ø1.19mm (0.047") semi-rigid Coax cable (UT 047). Assembly to cable is by soldering to both the inner contact and the outer sleeve.

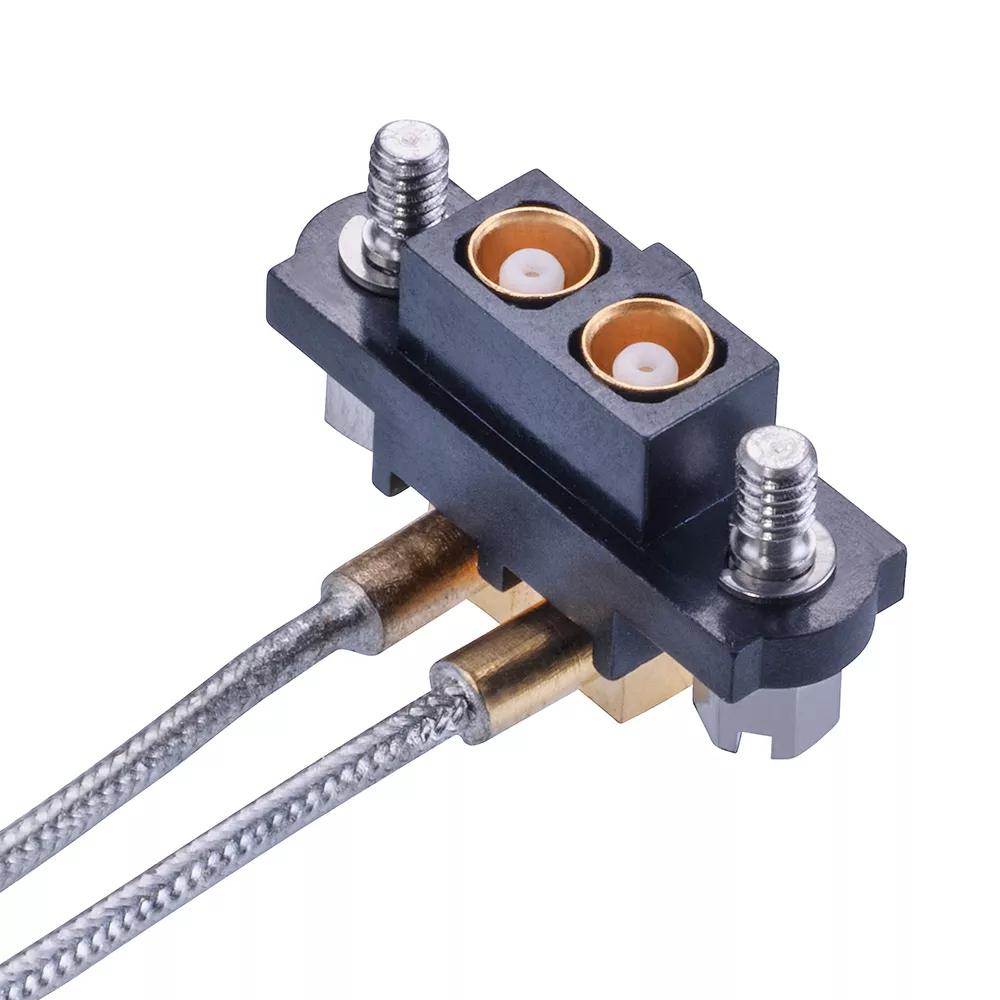

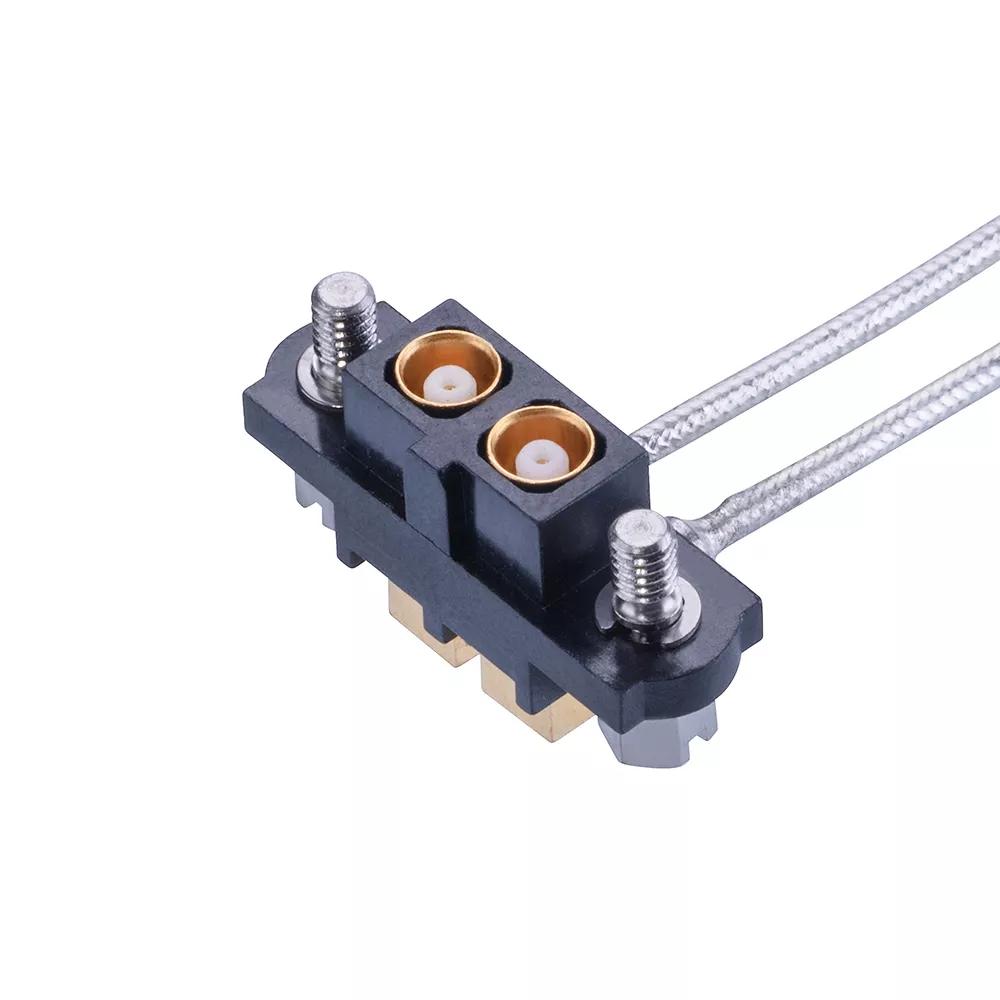

  • Specified as 310 in a Datamate Mix-Tek connector part number. Use with any female Datamate Datamate Mix-Tek housing in a power/coax cavity.

  • Gold finish on contact areas and termination.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

    View

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Connector Orientation

    Right-Angle

  • Country of Origin

    GB

  • Number of Power/Coax Contacts

    1

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating

    0.5A per contact

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Housing Material

    PTFE

  • Base Material of Contact

    Beryllium Copper inner contact, Brass outer contact

  • Packaging Style

    Single Pack

  • Finish / Plating on Termination

    Gold

  • Housing Colour

    White

Dimensions

  • Contact Pitch

    4.00mm (0.157")

  • Weight

    0.431g

  • Dimensions

    10.30 x 3.00 x 6.80

  • Wire Size

    Ø1.19mm (UT 047)

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M80-310.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Plating thickness on Datamate power and coax contacts

Product Information

  • Product Training Module - Guide to the Datamate Coax range

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • Product Datasheet - Datamate Mix-Tek range (HRi)

Test Reports

  • Test Report HT081 - Datamate Coax (M80-310 for Semi-Rigid) - Signal Integrity Testing

Environmental Compliance

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-310 product

  • Harwin REACH Statement - M80-310

  • RoHS Declaration - M80-310
