Active

M80-308

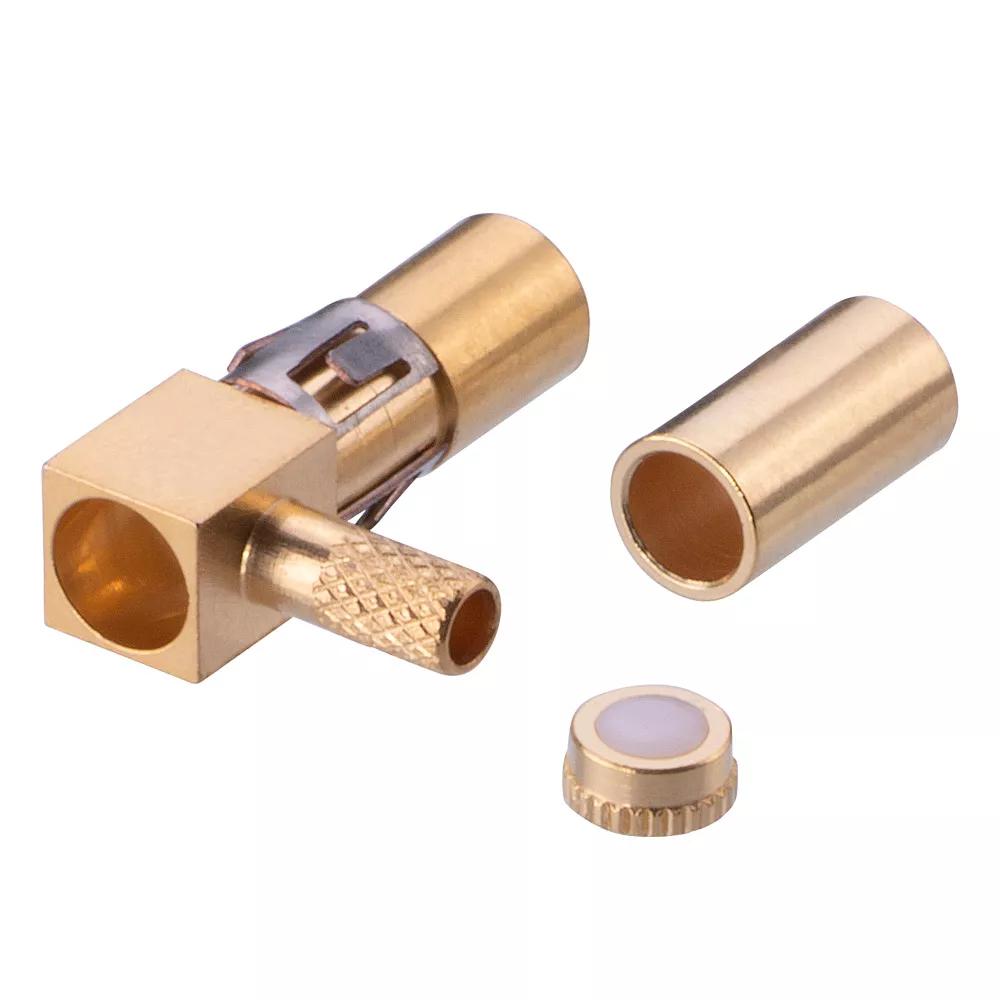

Female RG178 Right-Angled Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • 90° Angled, suitable for Ø2mm coax cable (RG178). Solder to inner contact, crimp outer sleeve.
  • Specified as 308 in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
  • Gold inner contact clip, Gold outer shell.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer contact

Housing Material:

PTFE

Housing Colour:

White

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

0.508g

Overall Dimensions (L x W x D) in mm:

10.30 x 3.00 x 8.40

Availability

Popular product
Distributor Location Quantity
Harwin
Global
Status5291

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-308-309.pdf

ZIP

M80-308 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-308 product

INSTRUCTION SHEETS

PDF

Product Training Module - Guide to the Datamate Coax range

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-34 - Z80-292 and Z90-293 Hand Crimp Tools Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M80-308_3D.pdf

PDF

Catalog page - Datamate Mix-Tek Power & Coax Contacts

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300

PDF

Product Summary - Datamate Mix-Tek Cable Housings
