M80-307

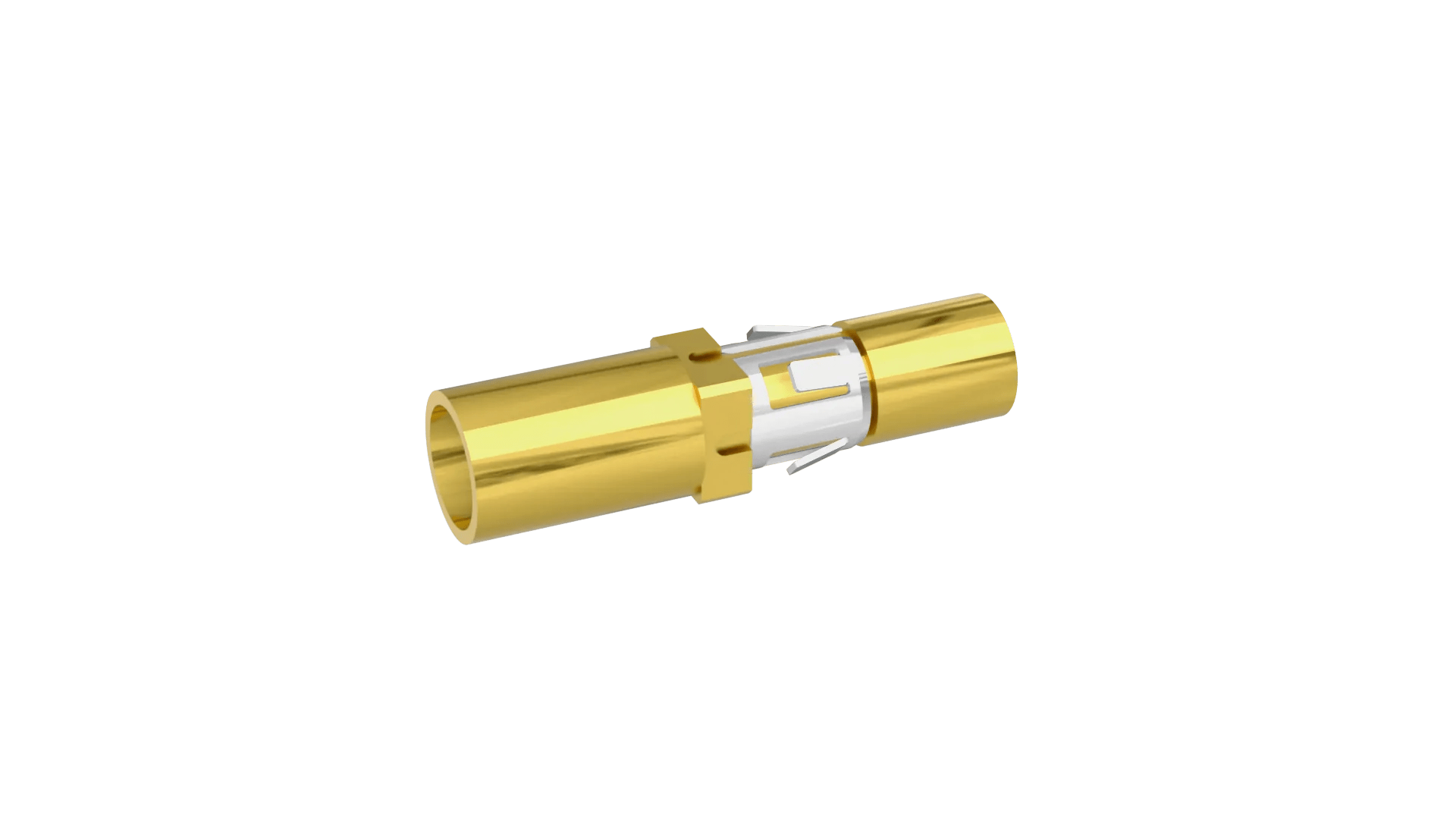

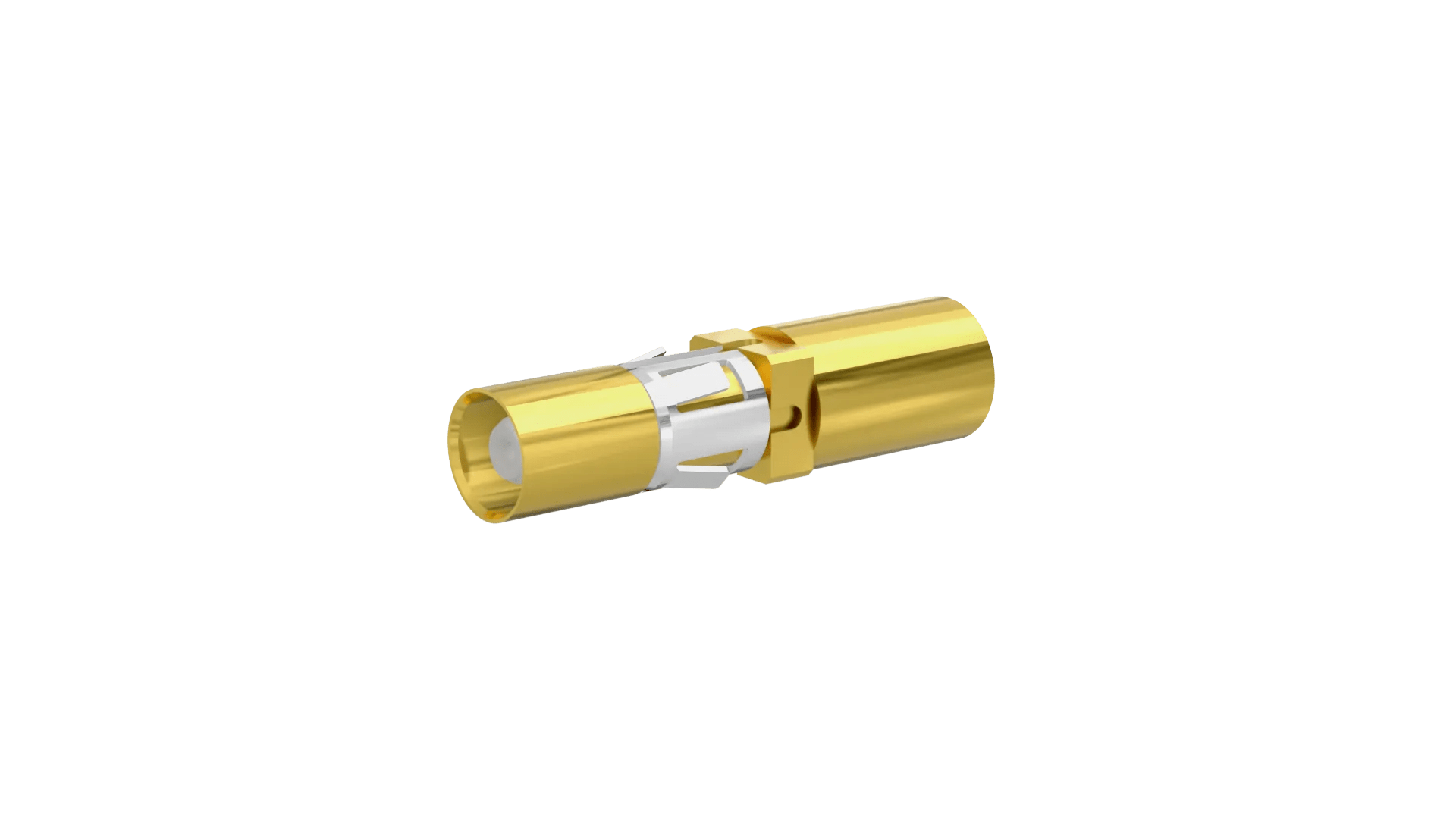

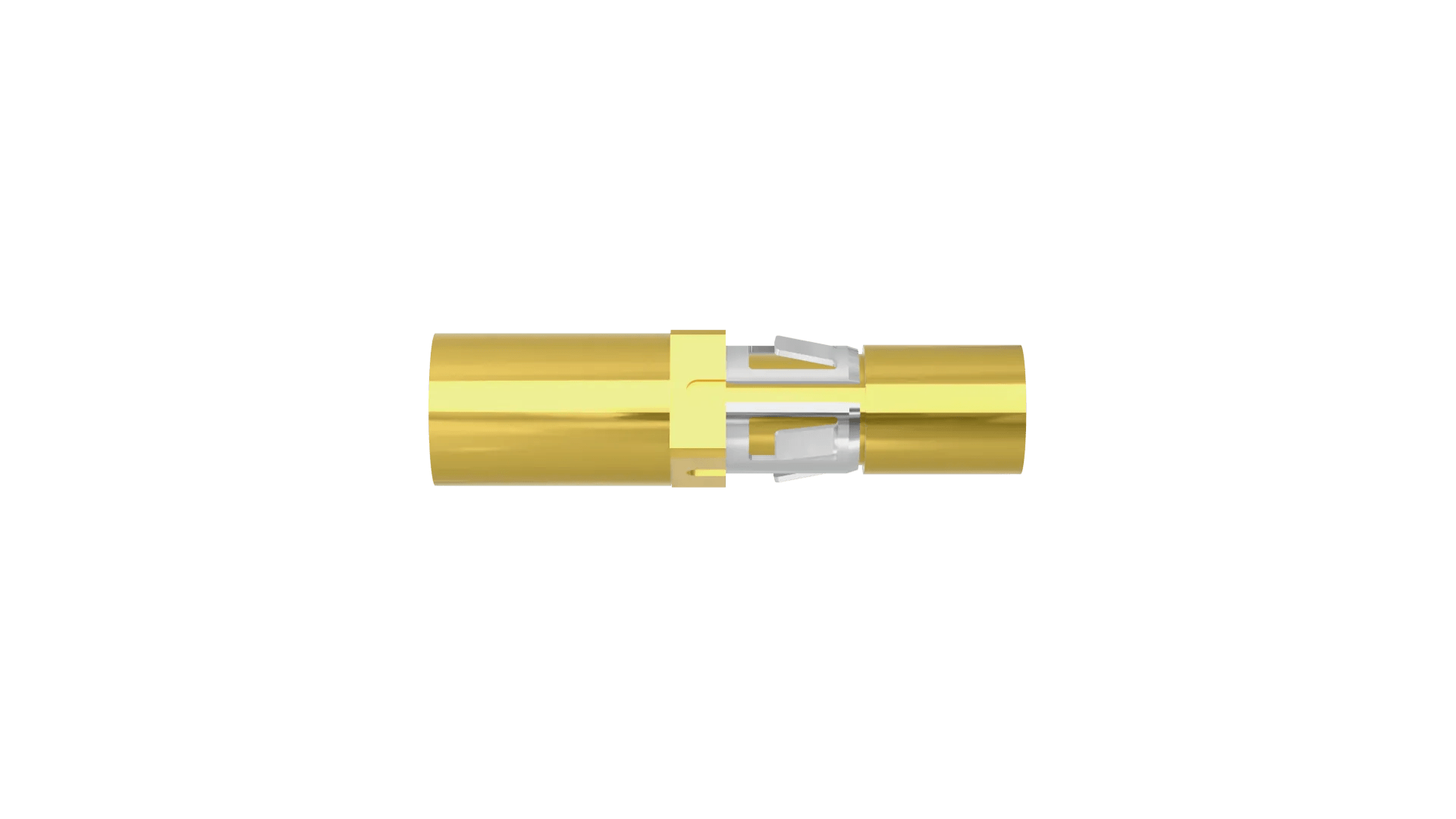

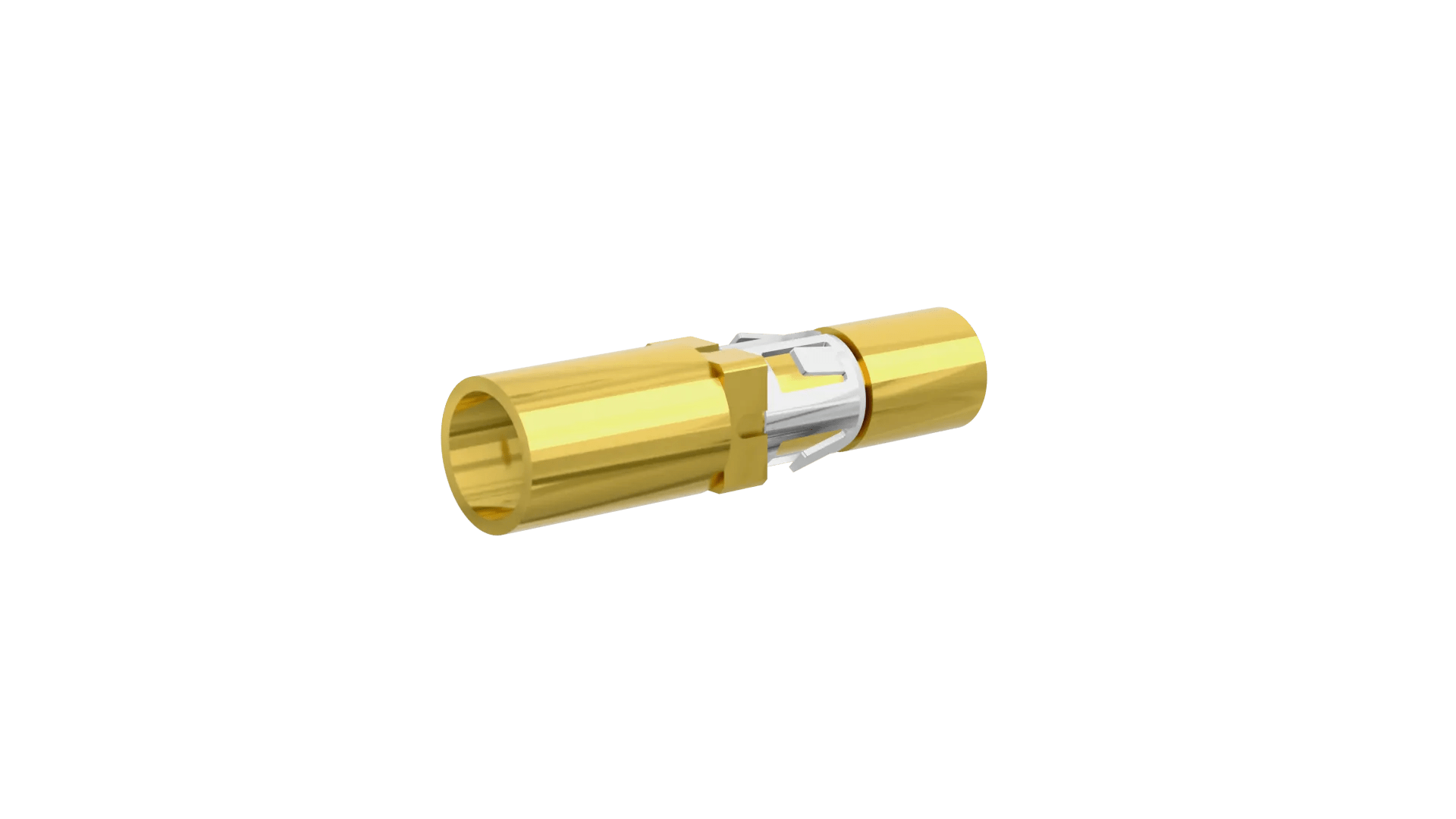

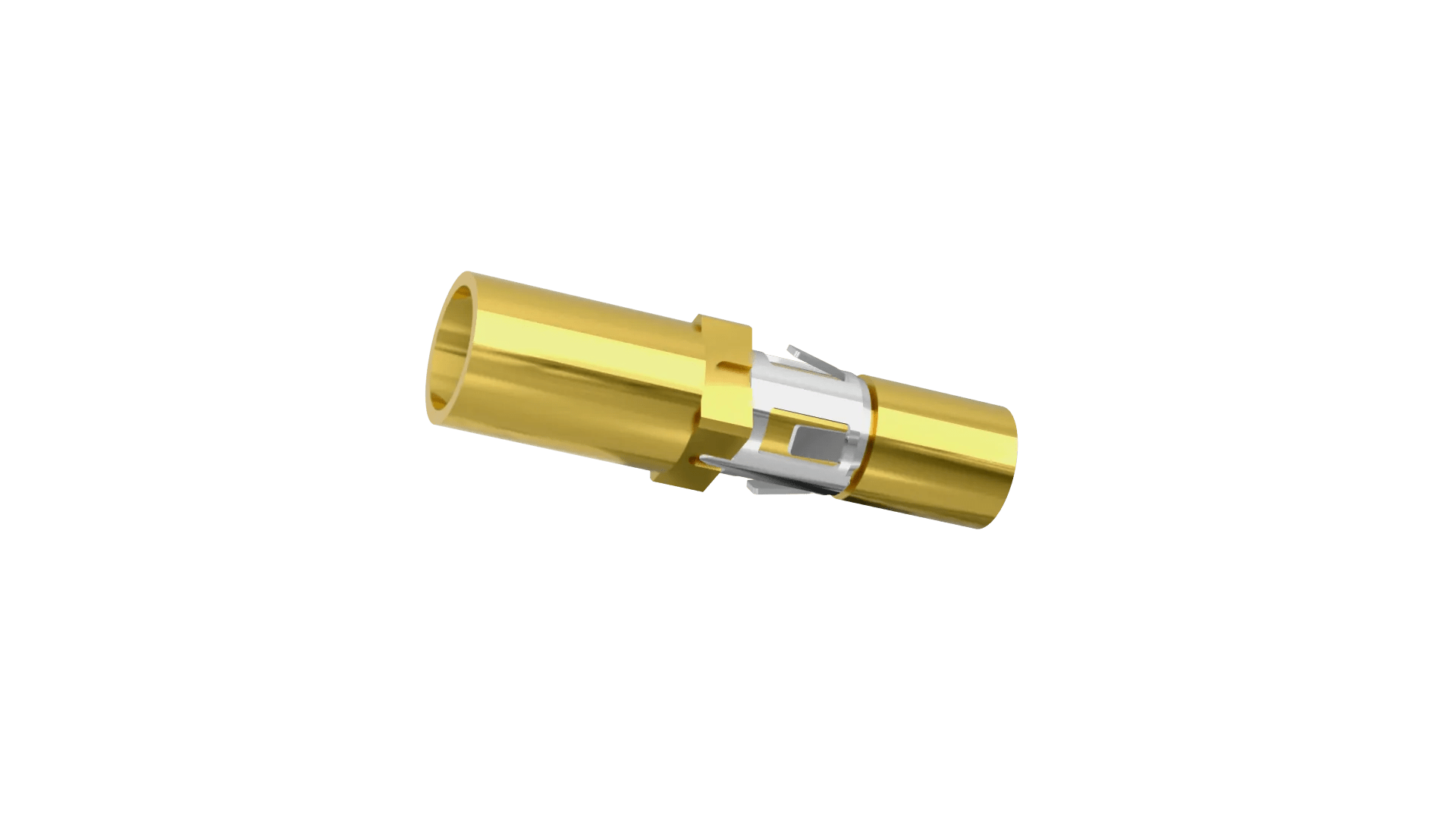

Female RG174-RG179-RG316 Straight Crimp Coax Contact

4.00mm Pitch High-Reliability Connector - Datamate Coax

Straight Crimp, suitable for Ø2.7mm coax cable (RG174, RG179, RG316).
Specified as 307 in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact areas and termination.

Request Samples

Availability

M80-307 - Female RG174-RG179-RG316 Straight Crimp Coax Contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2.7mm (RG174, RG179, RG316)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer contact

Housing Material:

PTFE

Housing Colour:

White

Packaging Style:

Single Pack

Individual Part Weight:

0.441g

Overall Dimensions (L x W x D) in mm:

13.40 x 3.00 square

Availability

607 in stock

Questions & Answers Ask a Question

Instead of crimping, can we solder the inner contact?

I do not think this would be possible, sorry. The inner contact is very small, and I do not think you will be able to accurately solder it by hand. In addition, there is no solder cup, so I suspect that you will increase the size of the contact by adding a layer of solder outside and around the contact. This might mean it will not fit in the insulator. You are of course welcome to try it for yourself, to see if it is possible, but it is not something we have tried, as the design was not intended to be assembled this way.
