M80-273MC02-00-00

M80-273MC02-00-00

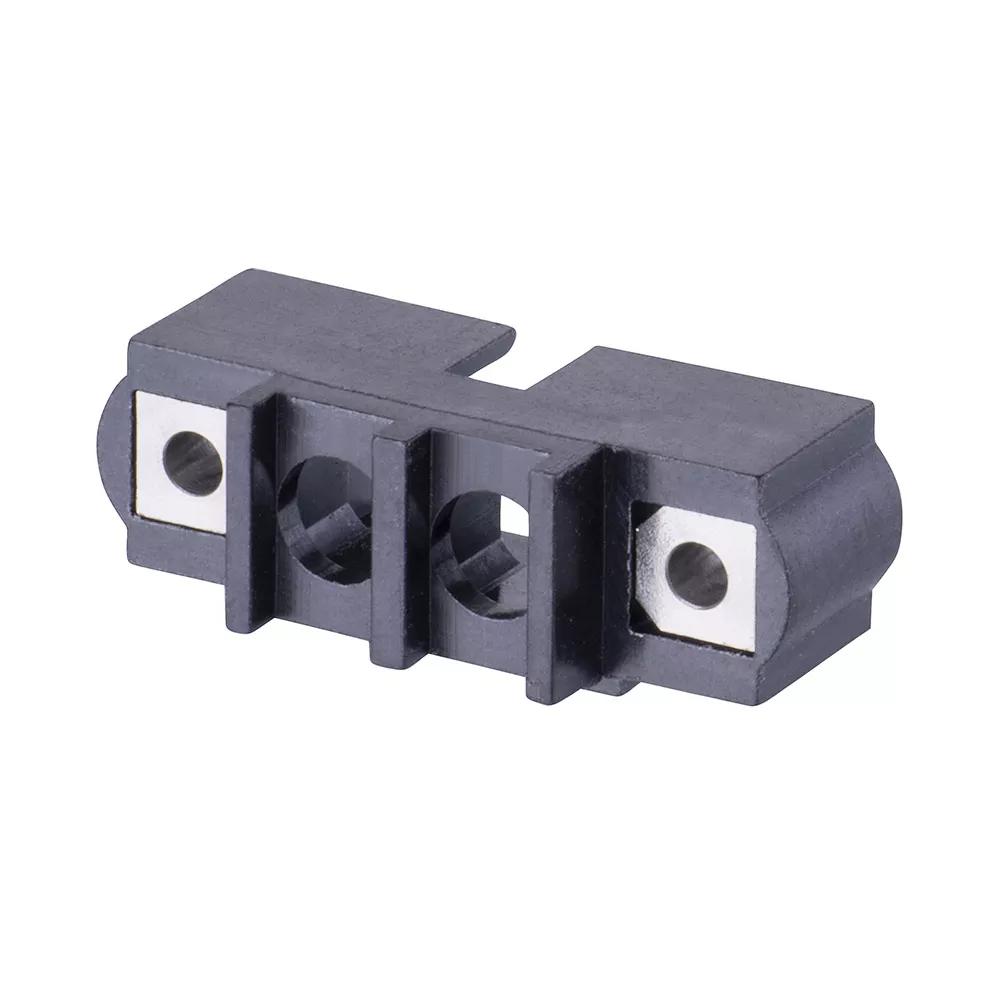

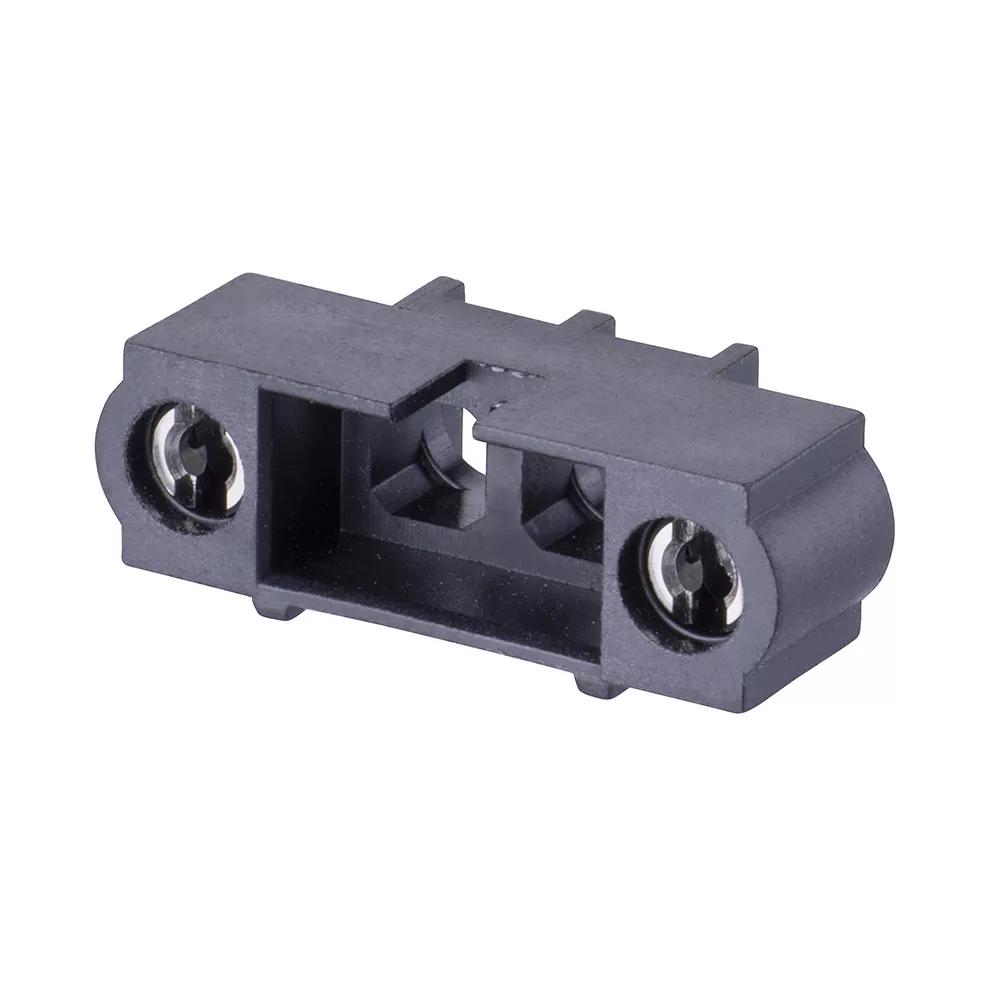

2 Pos. Male SIL Cable Housing, 101Lok

HRi
HRi

Traceparts account required

M80-273MC02-00-00

2 Pos. Male SIL Cable Housing, 101Lok


4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Single row polarized Male cable connector housing - 2 contact. Fitted with 101Lok bayonet receptacles for fast, simple mating and release.

  • Use with any of the male Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under "Related Products" further down this page.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Solder + Crimp)

  • Style of Jackscrews:

    101Lok Bayonet Receptacle Fixing

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Special (Power or Coax) Contacts:

    2

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Solder + Crimp)

  • Current Rating:

    Dependent on assembled contacts

  • Weight:

    0.937g

  • Dimensions:

    18.00 x 6.00 x 7.85

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-273MC02-00-00

  • Material composition for M80-273MCXX-00-00 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-273MCXX-XX-XX.pdf

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT052 - Datamate Coax M80-307 & M80-317 contacts - RF Test

  • Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical

  • Test Report HT078 - Datamate Mix-Tek 20A Power testing

  • Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Product Information

  • Product Training Module - Datamate Mix-Tek Housings

  • IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
