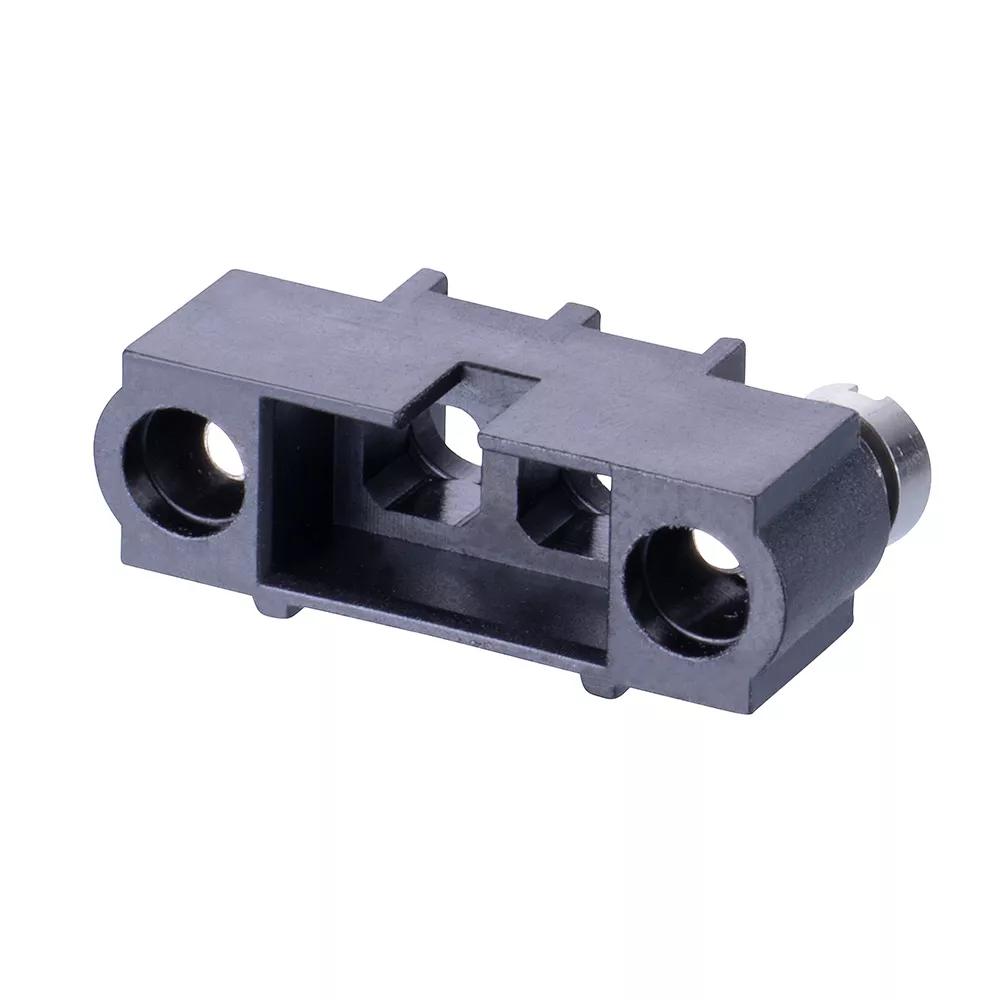

2 Pos. Male SIL Cable Housing, Reverse Fix
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

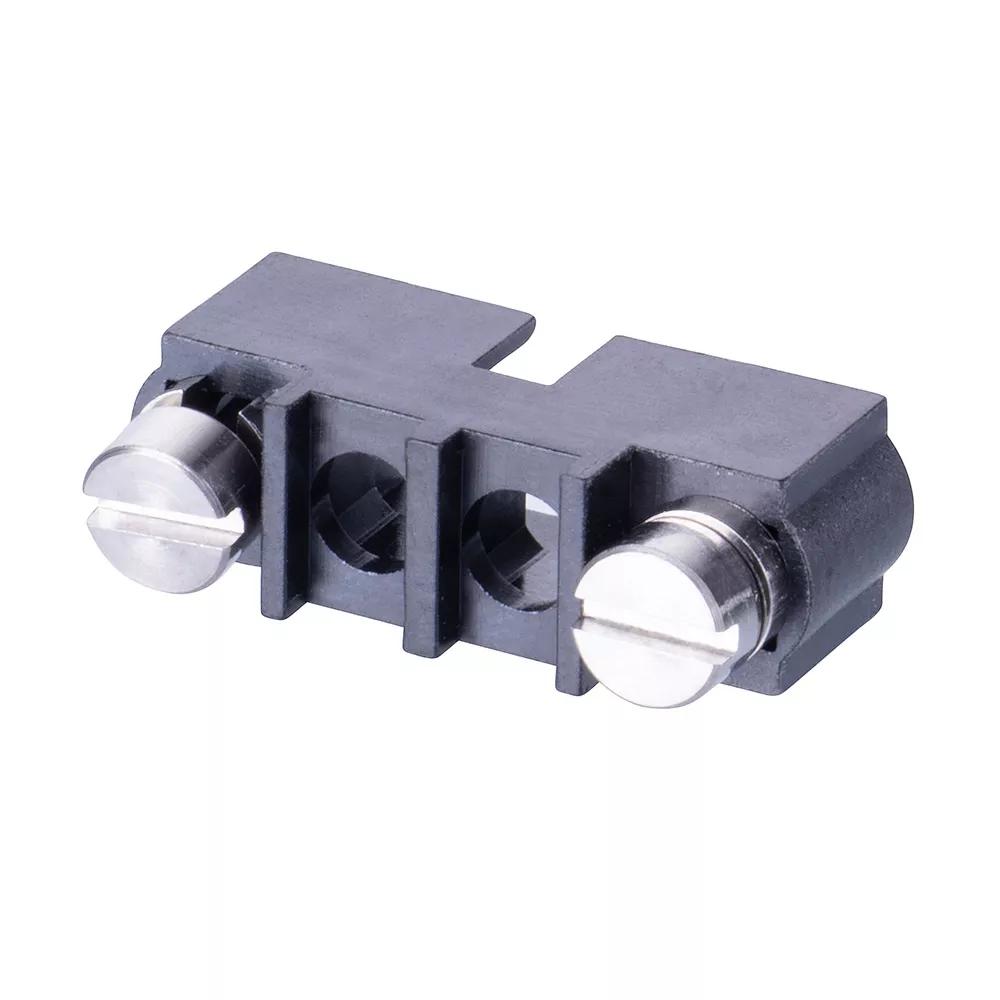

- Single row polarized Male cable connector housing – 2 contact. Fitted with reverse fix floating jackscrews, slotted head.
- Use with any of the male Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Floating Thumbscrew with Slotted Head (Reverse Fix)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.00 x 6.00 x 8.55
