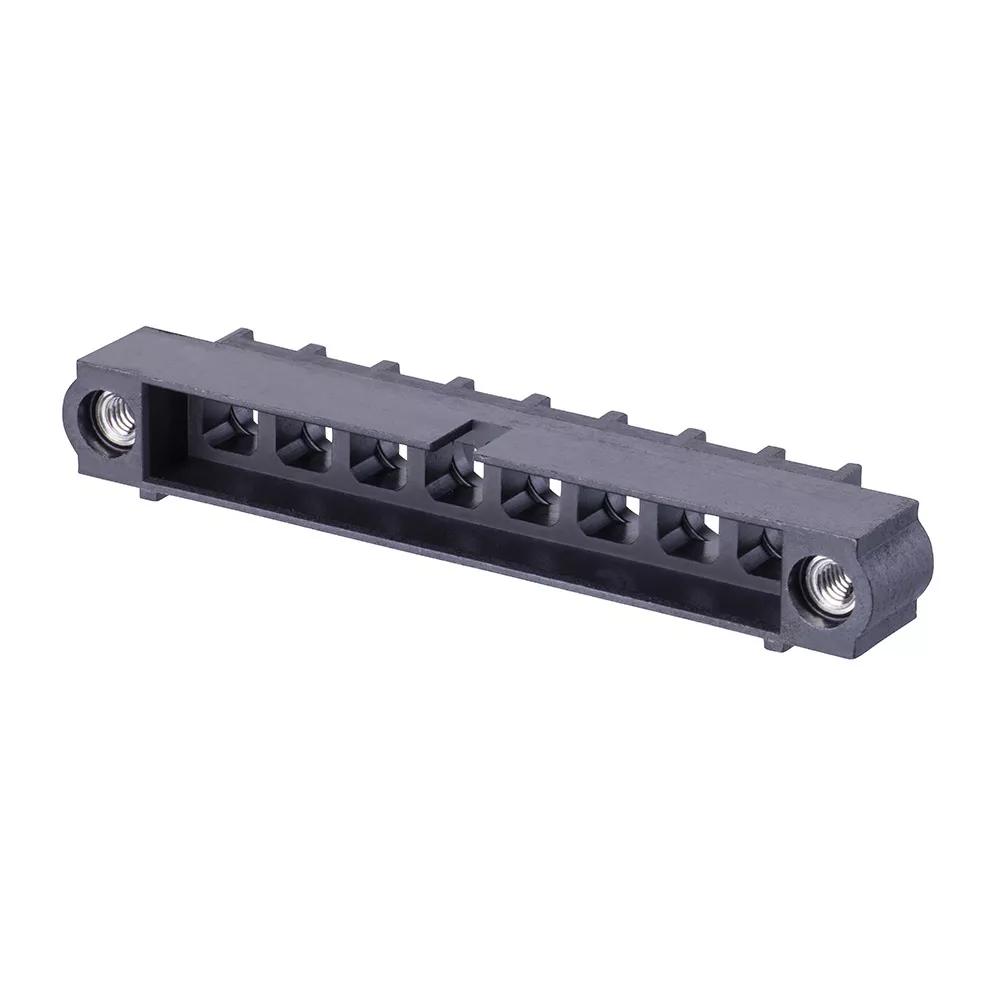

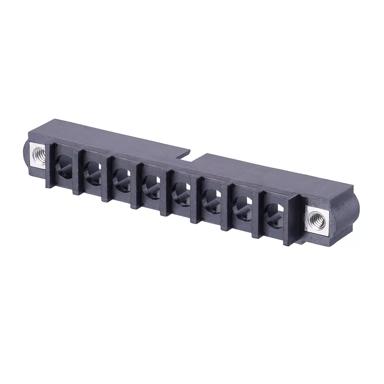

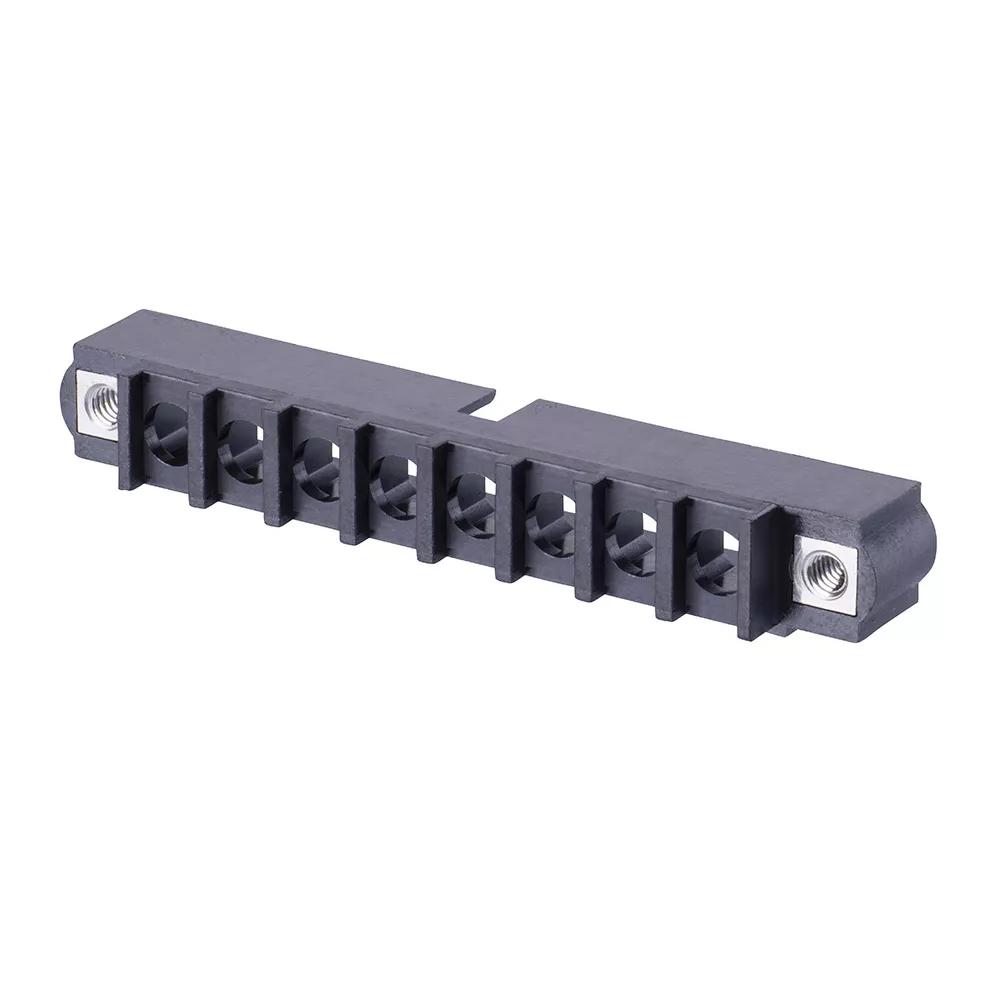

8 Pos. Male SIL Cable Housing, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Single row polarized Male cable connector housing – 8 contact. Fitted with internally threaded jackscrews.
- Use with any of the male Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
42.00 x 6.00 x 7.85
270 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
M80-273M108-00-00 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
