Home > M80-273M106-00-00
Active Product

M80-273M106-00-00

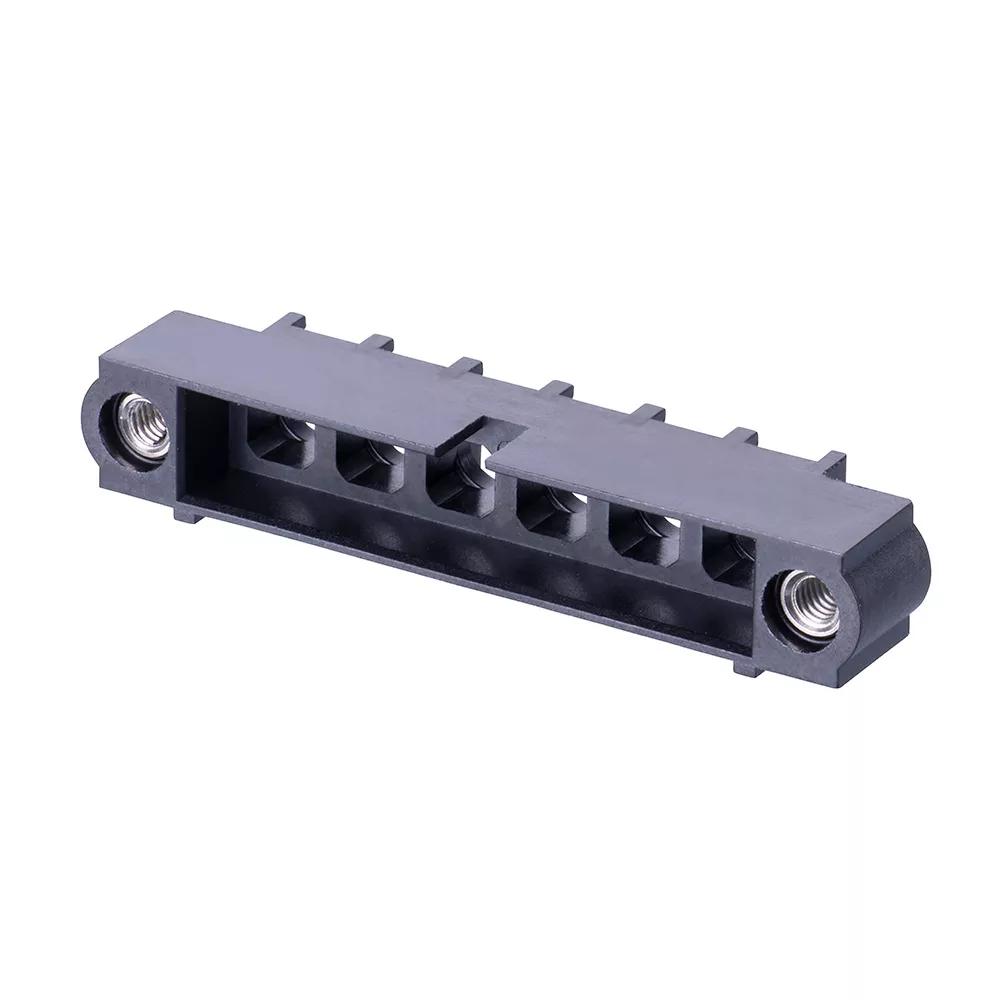

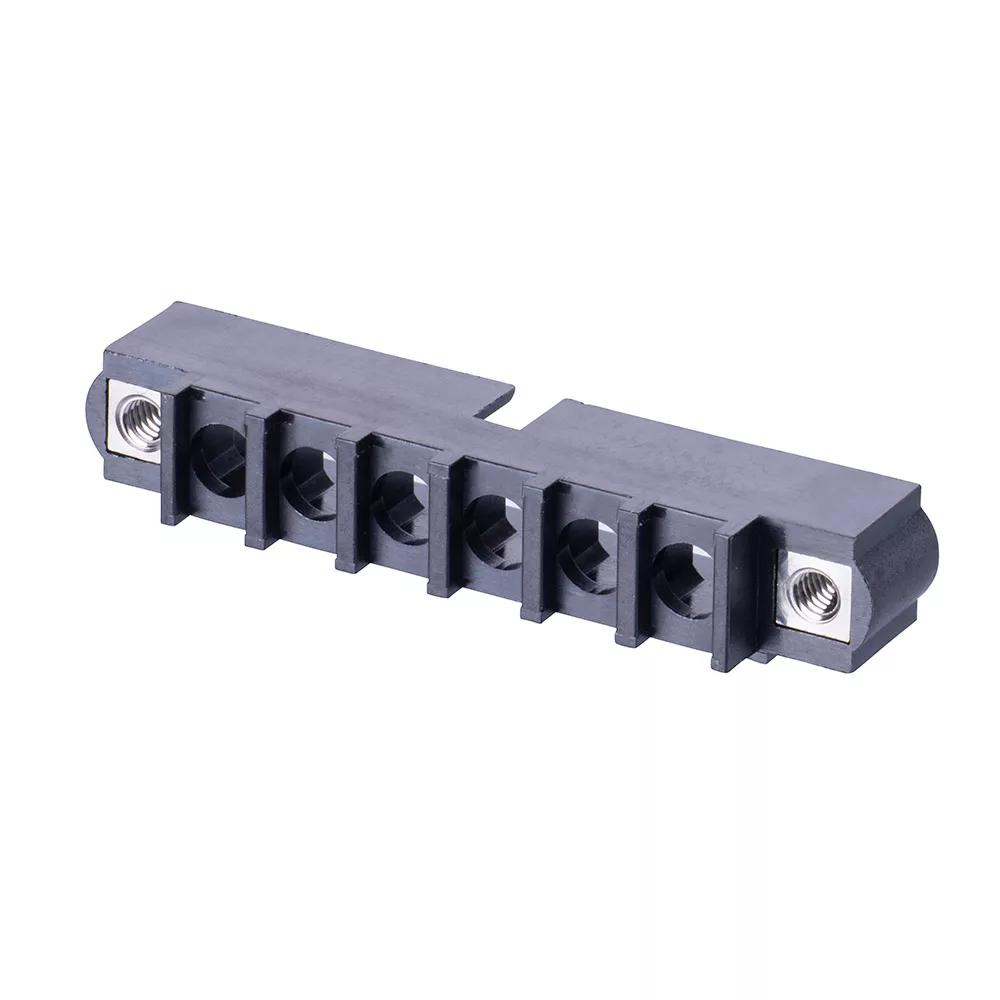

6 Pos. Male SIL Cable Housing, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

192 in stock   Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single row polarized Male cable connector housing – 6 contact. Fitted with internally threaded jackscrews.
  • Use with any of the male Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

6

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.284g

Overall Dimensions (L x W x D) in mm:

34.00 x 6.00 x 7.85

Thread Size:

M2

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
