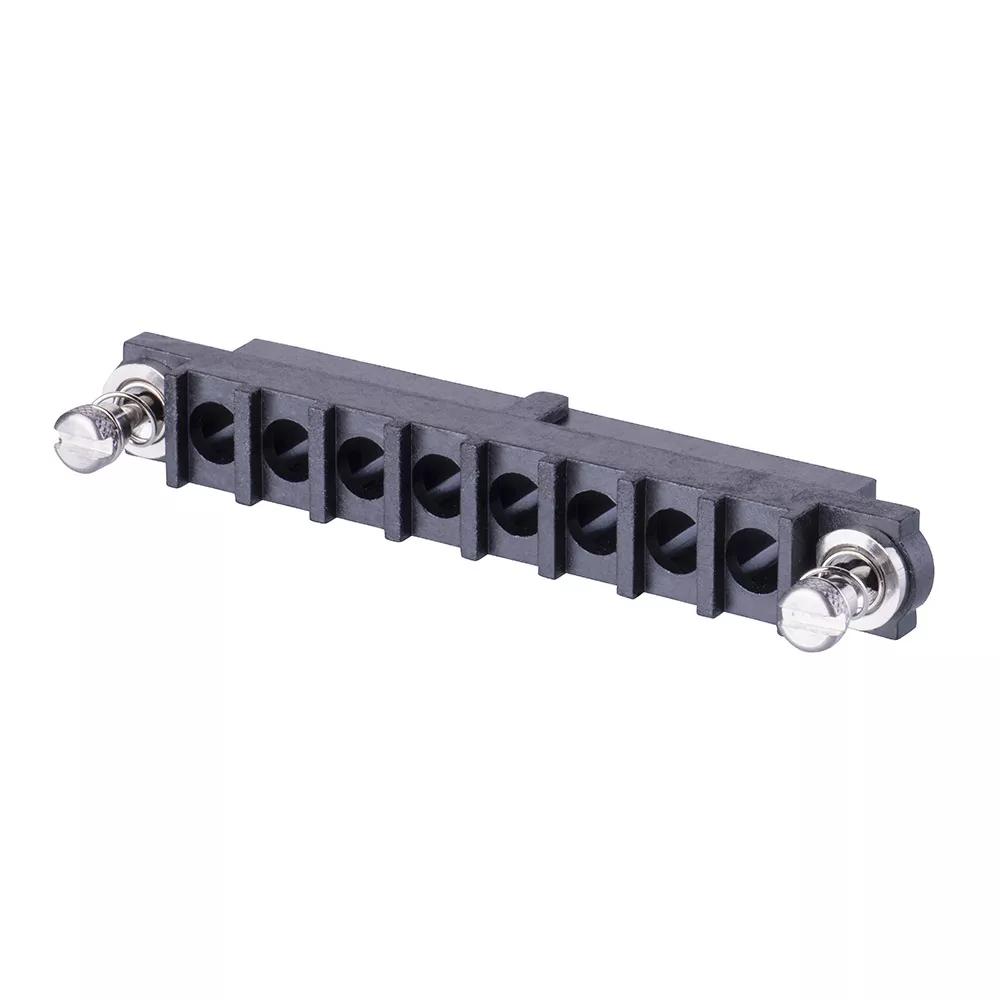

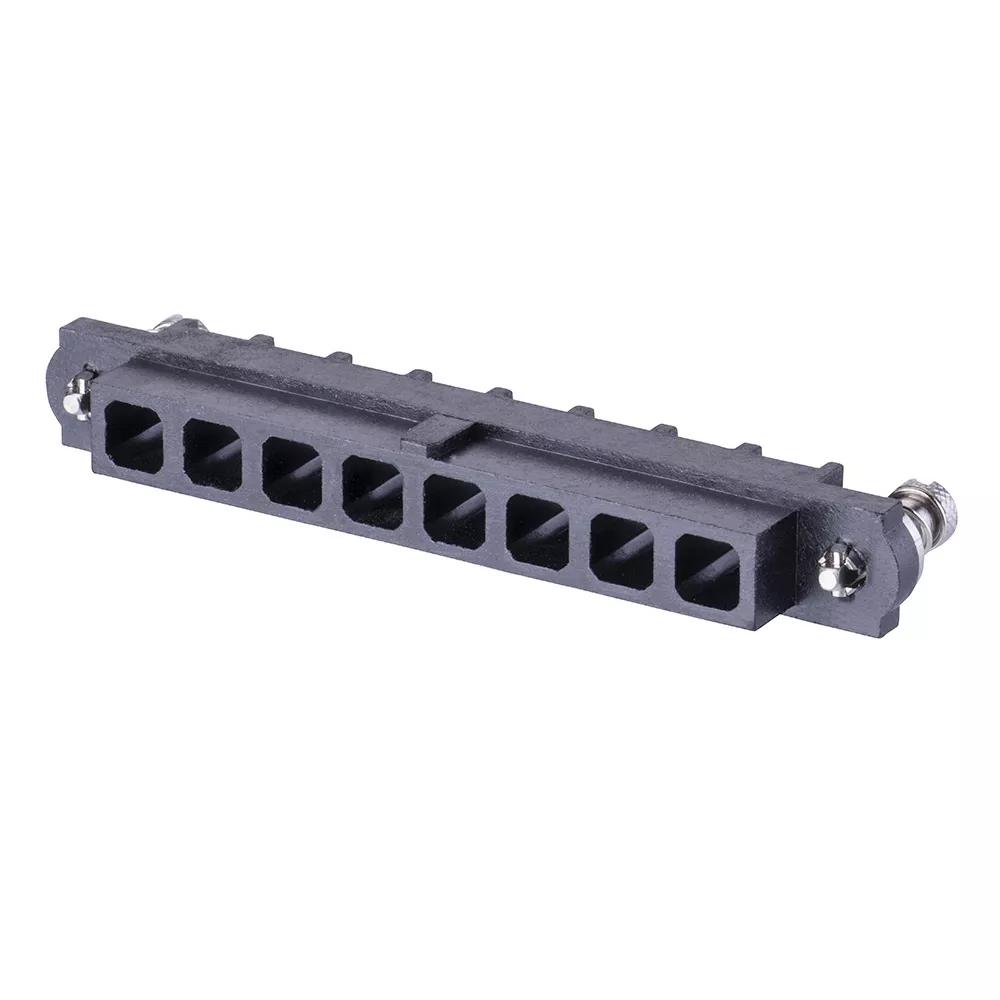

8 Pos. Female SIL Cable Housing, 101Lok
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Single row polarized Female cable connector housing – 8 contact. Fitted with 101Lok bayonet fittings for fast, simple mating and release.
- Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
101Lok Bayonet Fixing with Slotted Head
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
42.00 x 5.50 x 10.80
165 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
