Active Product

M80-263FC04-00-00

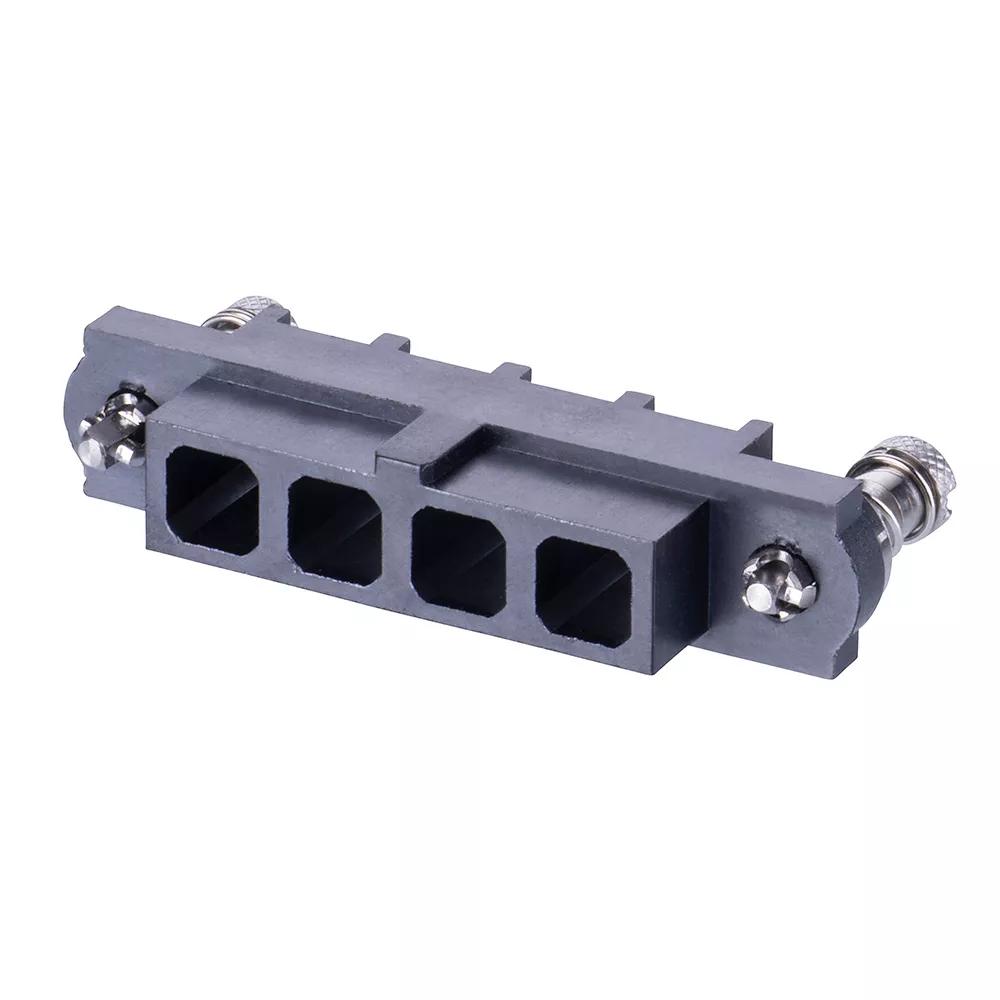

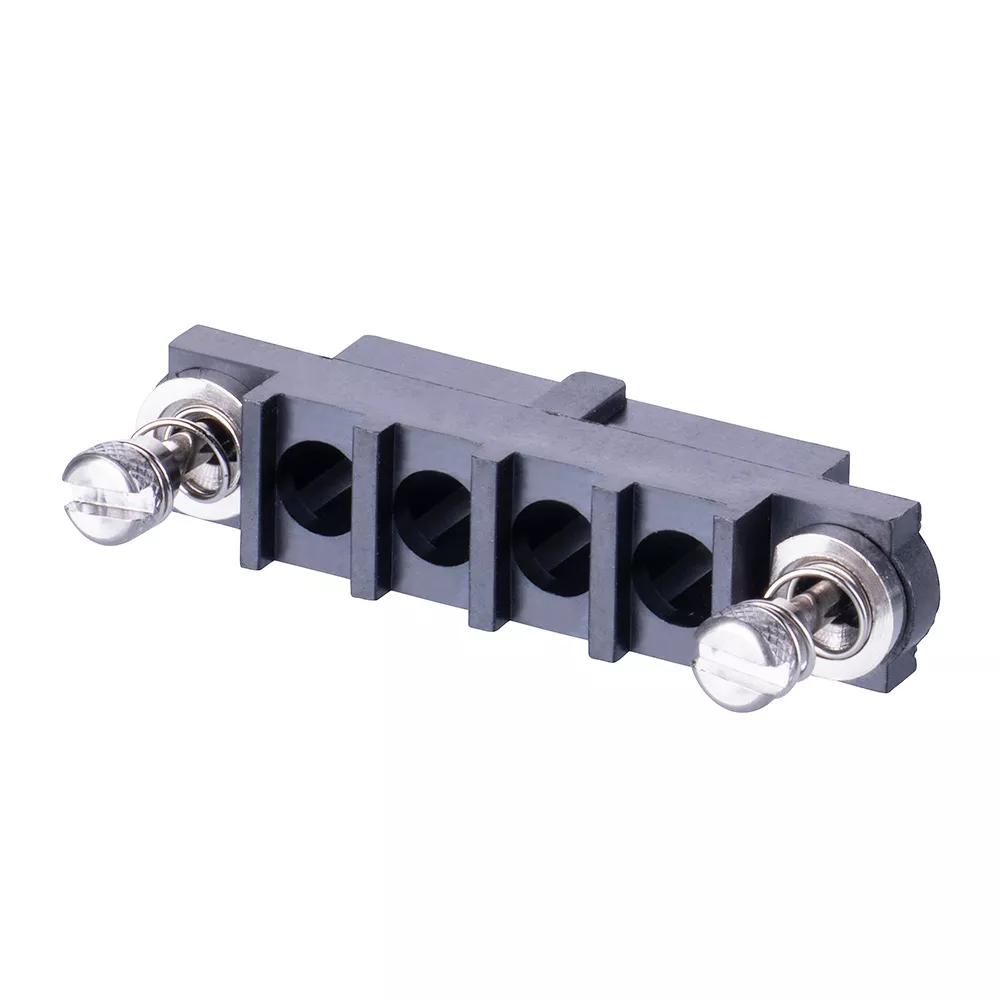

4 Pos. Female SIL Cable Housing, 101Lok

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

In stock Check availability

8 similar products View products

Traceparts account required

Product Description

Single row polarized Female cable connector housing – 4 contact. Fitted with 101Lok bayonet fittings for fast, simple mating and release.
Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-263FC04-00-00 - 4 Pos. Female SIL Cable Housing, 101Lok

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

101Lok Bayonet Fixing with Slotted Head

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.13g

Overall Dimensions (L x W x D) in mm:

26.00 x 5.50 x 10.80

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles
