Active Product

M80-263F304-12-00

12+4 Pos. Female Cable Housing, Guide Pin

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

Polarized Female mixed technology cable connector housing – 12 signal cavities in double row, 4 power/coax cavities in single row. Fitted with Guide Pins and 5mm front panel mount studs. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
Use with any of the female Datamate signal contacts and Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
For complete pin numbering or pin out information, see Component Specification C005XX.

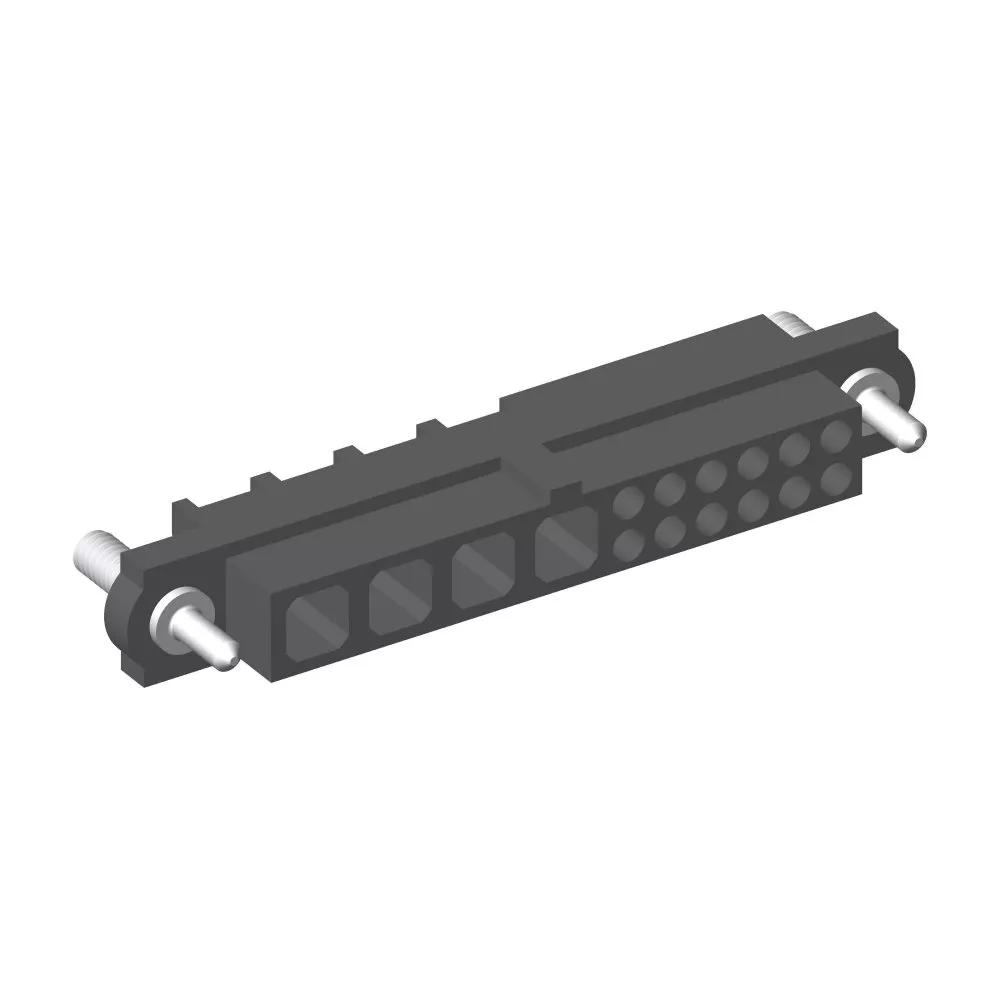

M80-263F304-12-00 - 12+4 Pos. Female Cable Housing, Guide Pin

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Guide Pin with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.442g

Overall Dimensions (L x W x D) in mm:

38.00 x 5.50 x 11.00

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles
