M80-263F304-00-00
4 Pos. Female SIL Cable Housing, Guide Pin
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
132 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description

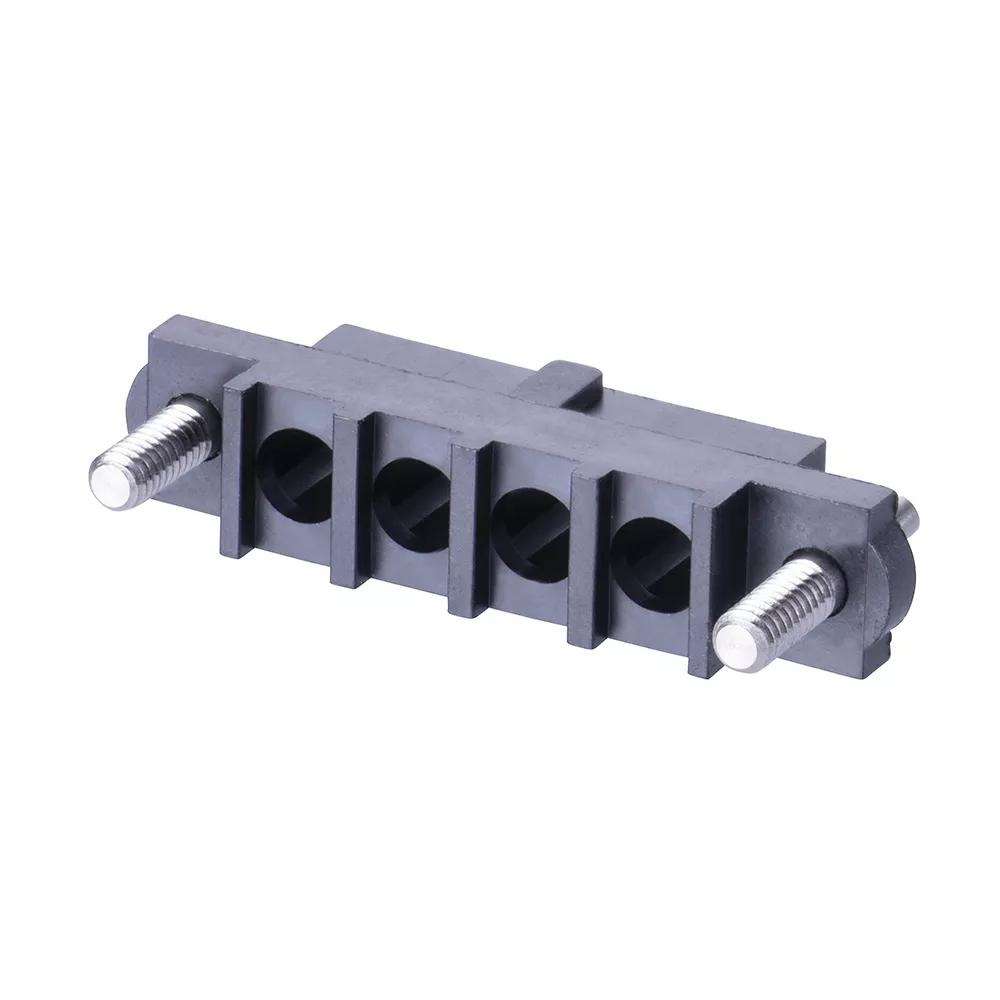

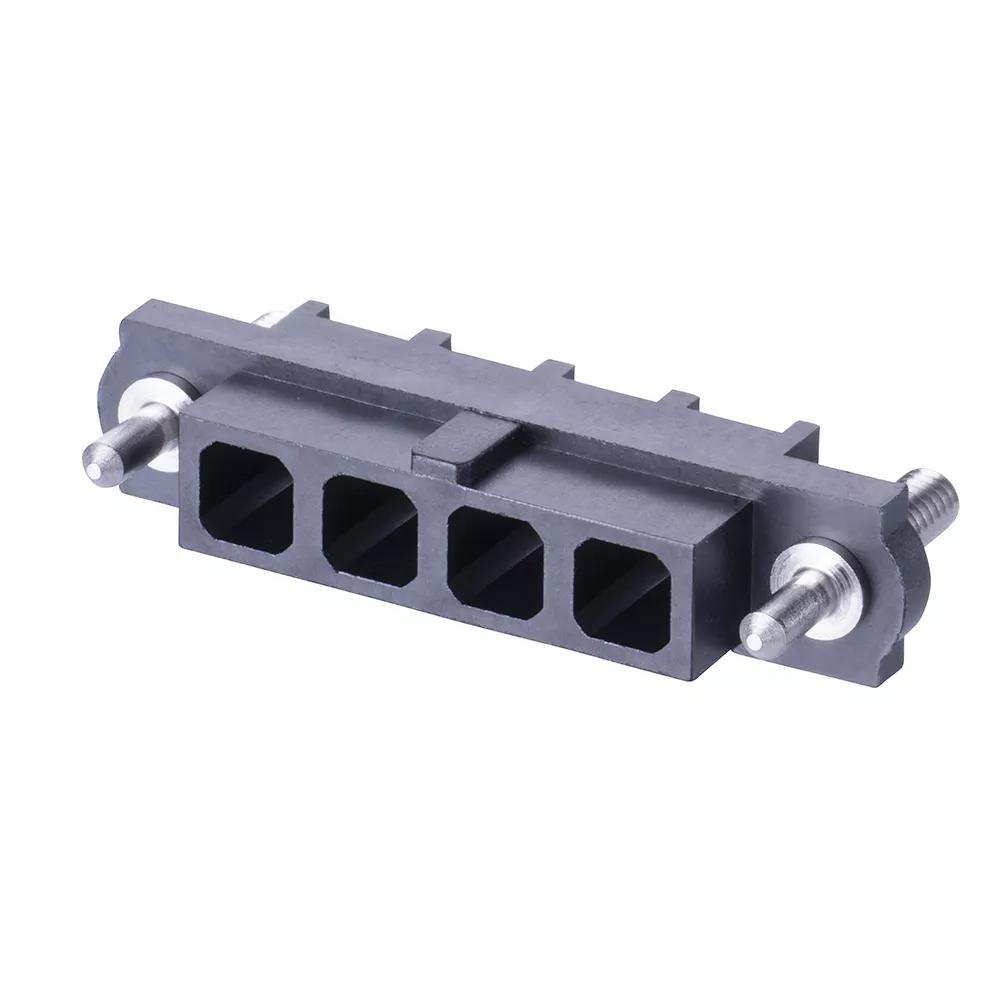

- Single row polarized Female cable connector housing – 4 contact. Fitted with Guide Pins and 5mm front panel mount studs. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
- Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Solder + Crimp)
Current Rating:
Dependent on assembled contacts
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Guide Pin with Front Panel Mount Stud (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
4
Materials
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.036g
Overall Dimensions (L x W x D) in mm:
26.00 x 5.50 x 11.00
Thread Size:
M2
Mating Profiles:
