M80-263F303-00-00

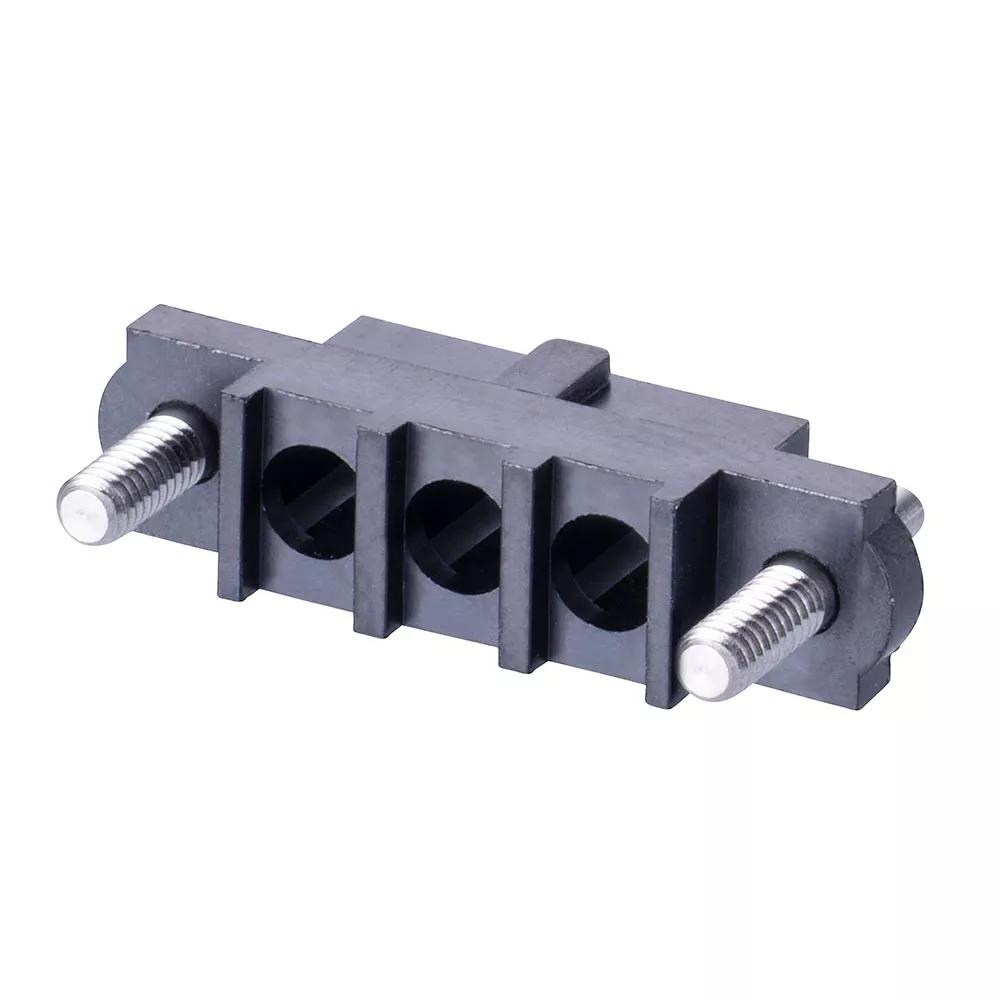

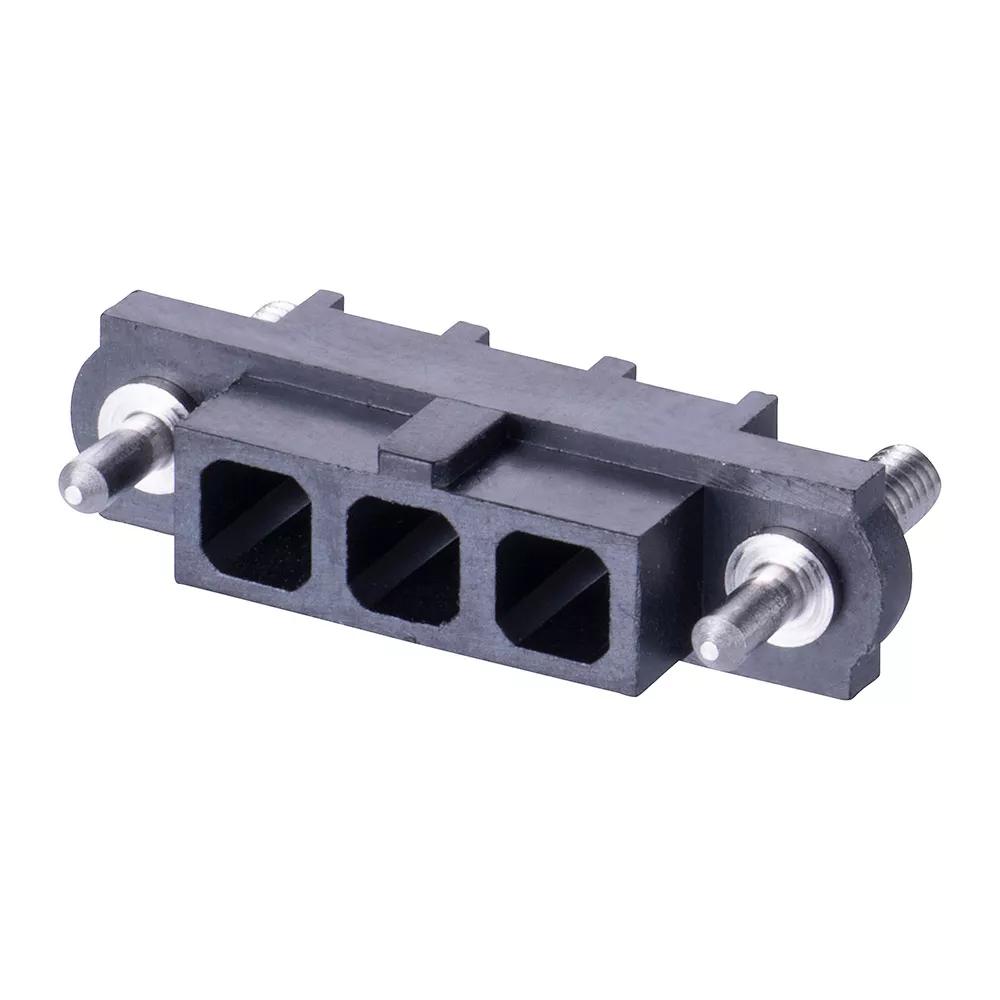

3 Pos. Female SIL Cable Housing, Guide Pin

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

Loading…   Check availability

9 similar products View products

Traceparts account required

Product Description

  • Single row polarized Female cable connector housing – 3 contact. Fitted with Guide Pins and 5mm front panel mount studs. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
  • Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Guide Pin with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

3

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.913g

Overall Dimensions (L x W x D) in mm:

22.00 x 5.50 x 11.00

Thread Size:

M2
