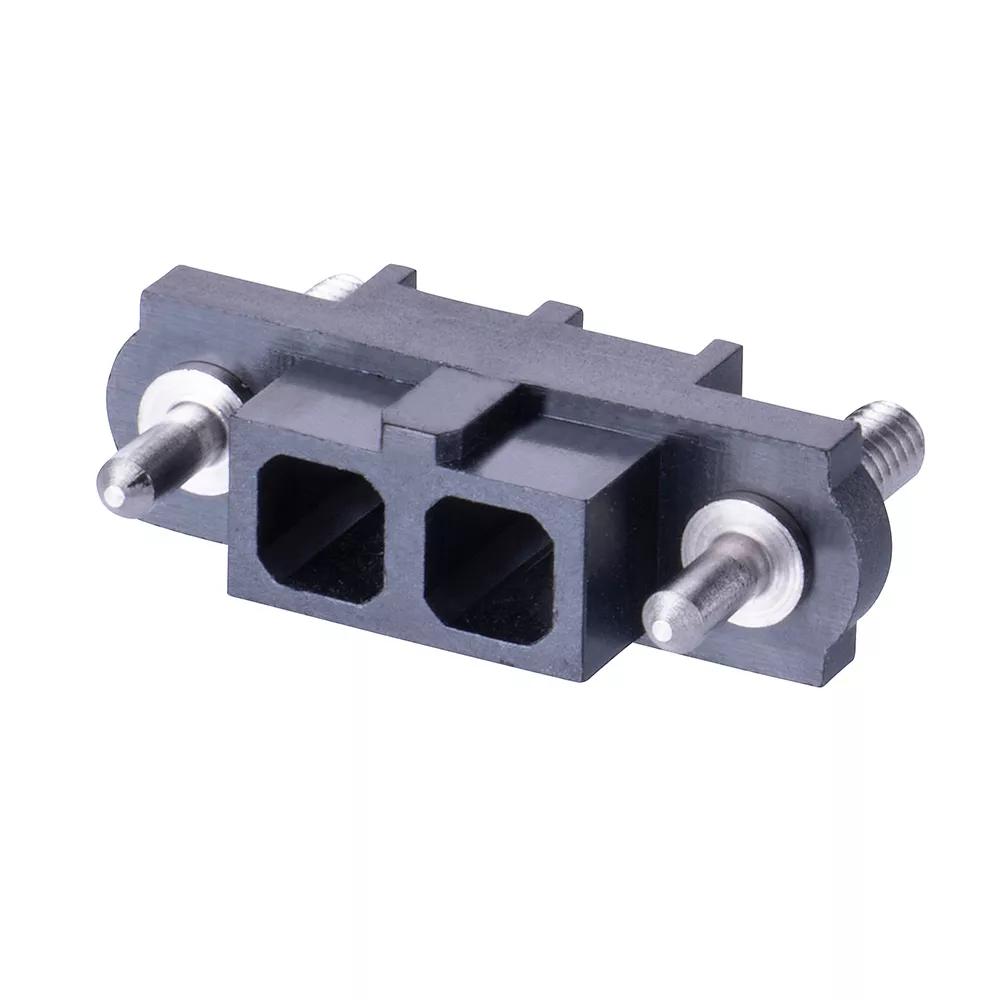

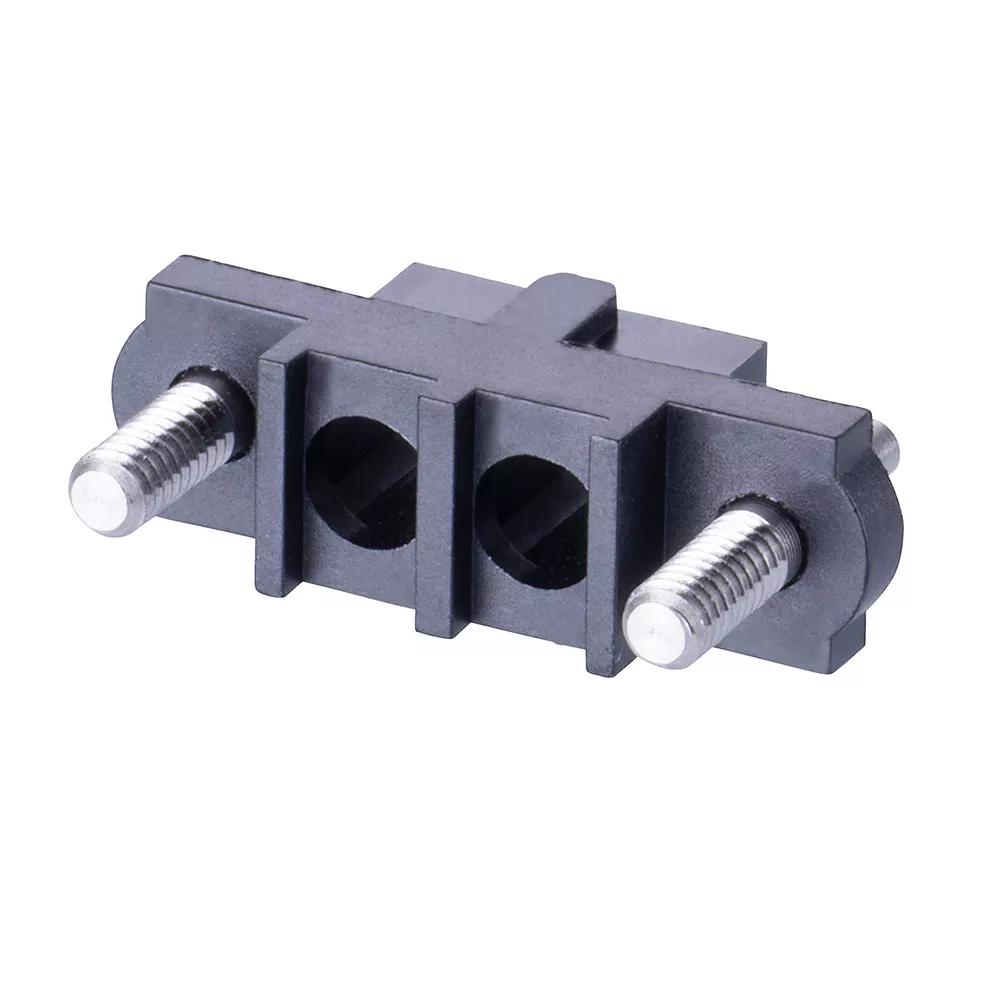

2 Pos. Female SIL Cable Housing, Guide Pin
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Single row polarized Female cable connector housing – 2 contact. Fitted with Guide Pins and 5mm panel mount studs. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
- Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Guide Pin with Board Mount
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.00 x 5.50 x 11.00
333 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
M80-263F302-00-00 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
