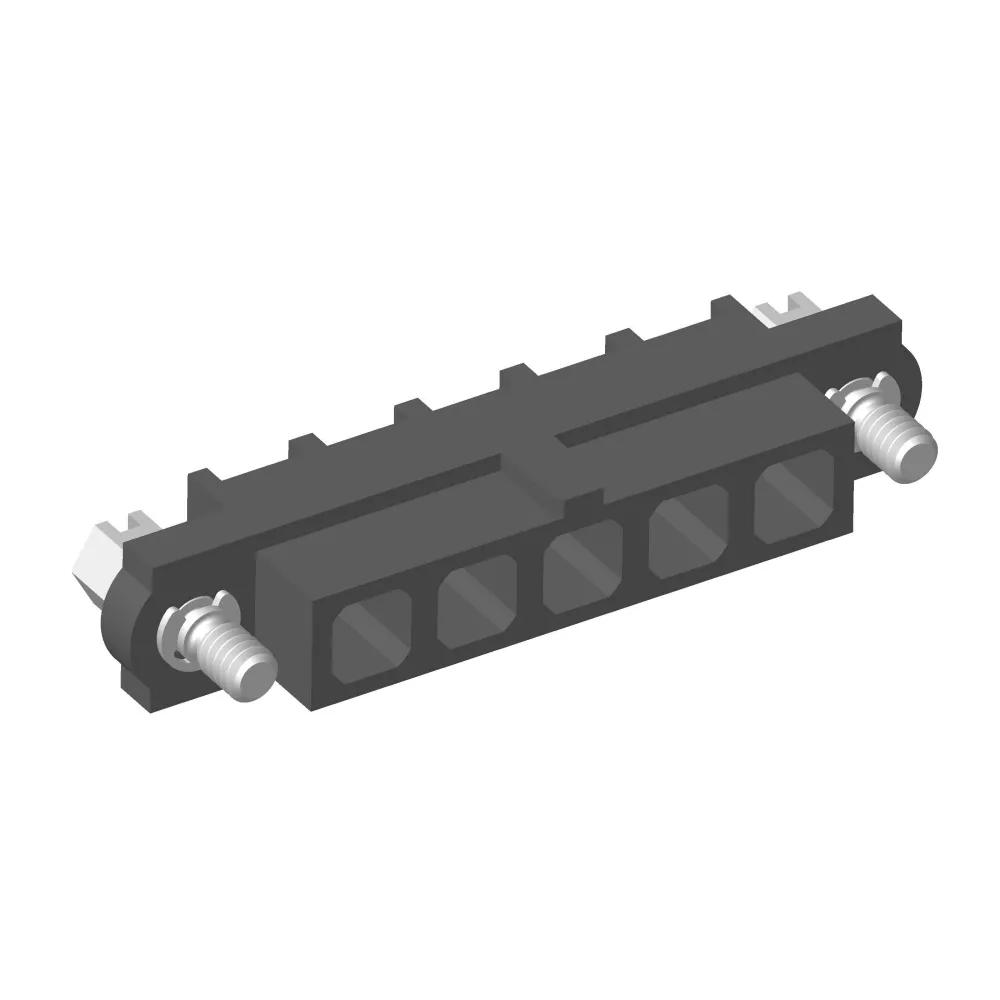

5 Pos. Female SIL Cable Housing, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
6 similiar products View products
- Single row polarized Female cable connector housing – 5 contact. Fitted with floating jackscrews, Hexagonal slotted head.
- Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.00 x 5.50 x 9.50
