Active

M80-263F104-04-00

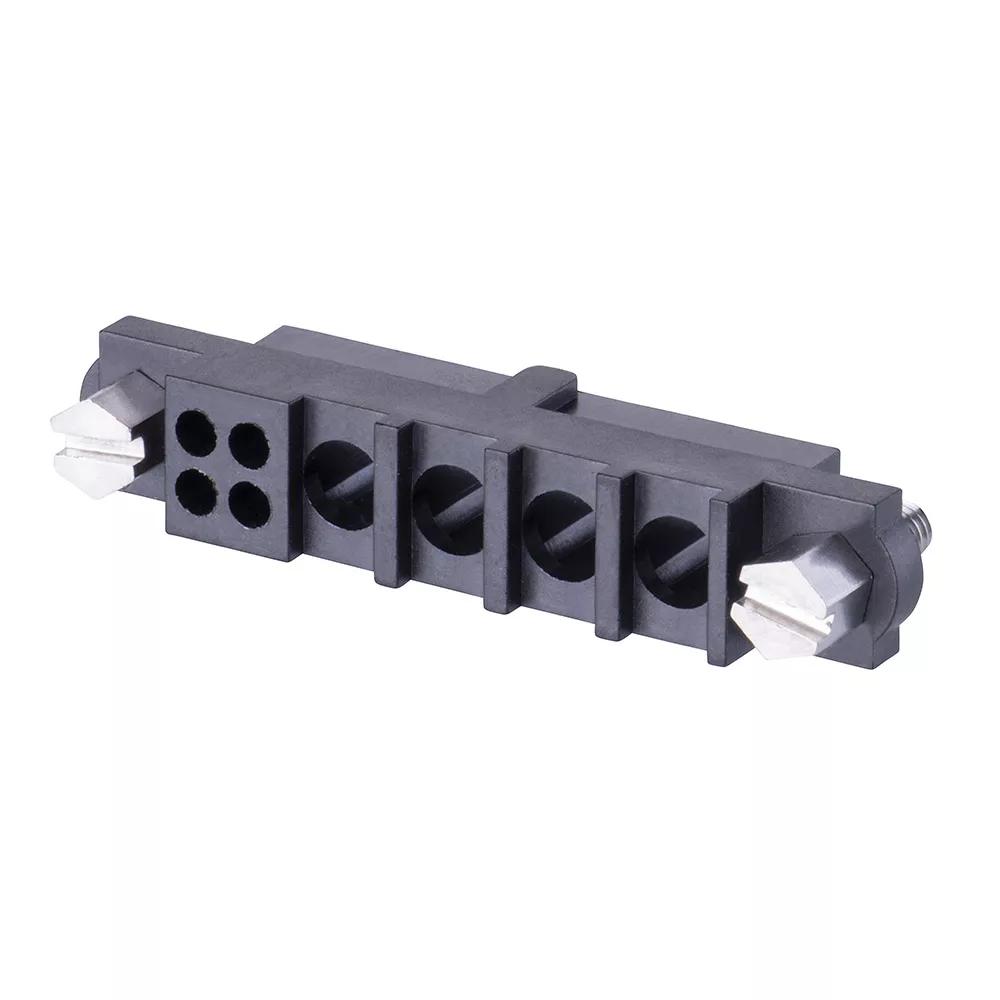

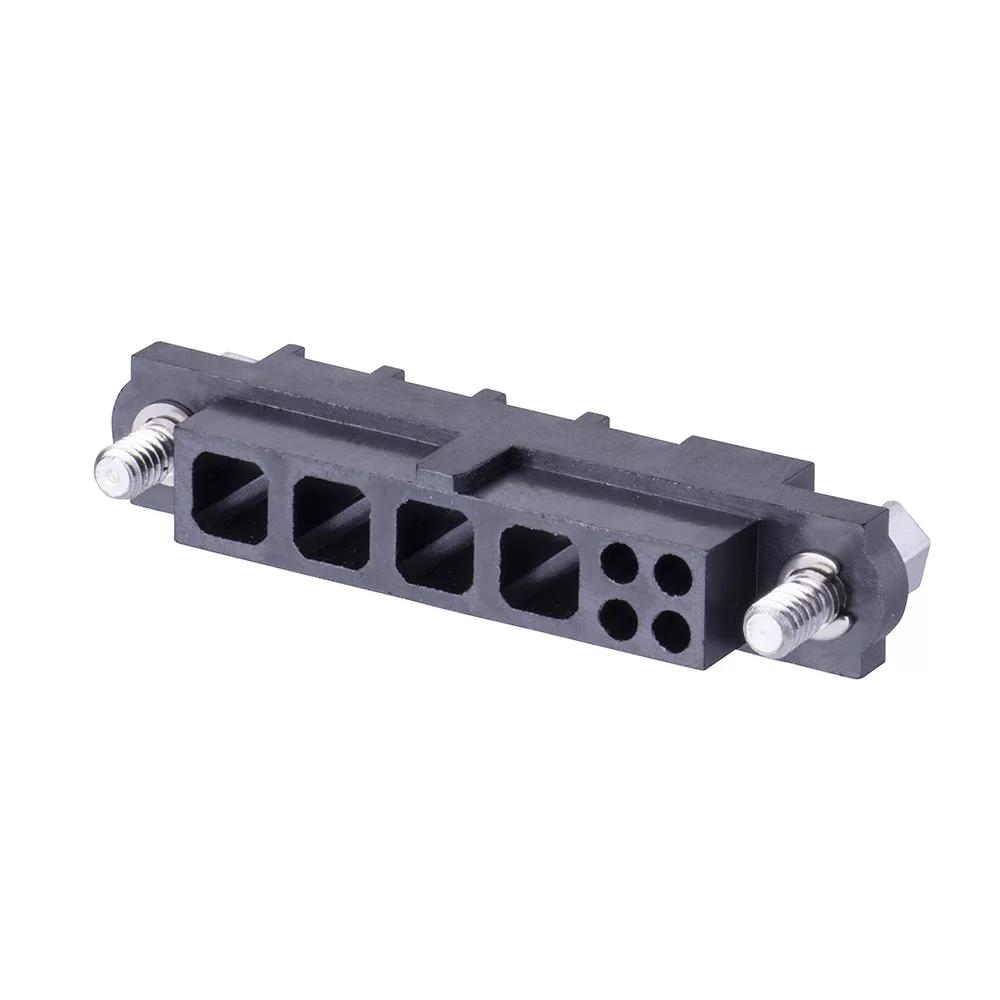

4+4 Pos. Female Cable Housing, Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Polarized Female mixed technology cable connector housing – 4 signal cavities in double row, 4 power/coax cavities in single row. Fitted with floating jackscrews, Hexagonal slotted head.
Use with any of the female Datamate signal contacts and Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-263F104-04-00 - 4+4 Pos. Female Cable Housing, Jackscrews

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Hex Slotted

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.357g

Overall Dimensions (L x W x D) in mm:

30.00 x 5.50 x 9.50

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Availability

155 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-263F1XX-XX-XX.pdf

ZIP

M80-263F104-04-00 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

PDF

Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

PDF

Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical

PDF

Test Report HT052 - Datamate Coax M80-307 & M80-317 contacts - RF Test

PDF

Test Report HT078 - Datamate Mix-Tek 20A Power testing

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-263F104-04-00 product

PDF

Product Training Module - Datamate Mix-Tek Housings

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Datamate Mix-Tek Housings Female Mixed Technology

PDF

Catalog page - Datamate Mix-Tek Housings Standard products

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate Mix-Tek Cable Housings

PDF

Outgassing data for Harwin products (plastics)
