M80-2430000B

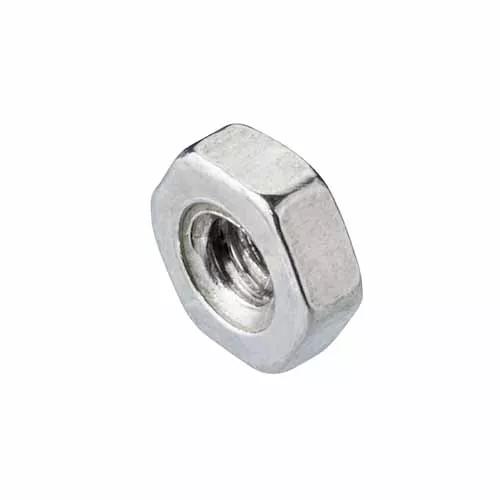

Panel Mount or Board Mount Jackscrew Nut

2.00mm Pitch High-Reliability Connector - Datamate

  • Hexagonal Jackscrew nut, to use with male studs for board-mount strain relief.
  • Used with jackscrew types MF, MG, F7, FH, as well as standard J-Tek board mount studs.
  • M2 thread. See Component Specification C005xx for Torque recommendations.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Accessory

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.142g

Overall Dimensions (L x W x D) in mm:

1.60 x 4.00 A/F

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status50
Harwin
Europe
Status836
Mouser Electronics Inc
Global
Status75

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-2430000B.pdf

ZIP

M80-2430000B CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-2430000B product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

OTHER DOWNLOADS

PDF

3D PDF file - M80-2430000B_3D.pdf

PDF

Catalog page - Datamate Coax Plug (Male) Vertical Throughboard

PDF

Catalog page - Datamate T-Contact Female Cable Housings (Guide Pin, 101Lok)

PDF

Catalog page - Datamate T-Contact Female Cable Housings (Reverse Fix)

PDF

Catalog page - Datamate Introduction
