M80-2320000B

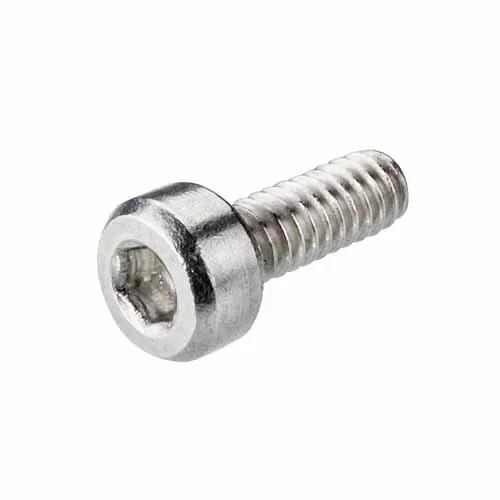

Panel Mount or Board Mount Jackscrew Bolt

2.00mm Pitch High-Reliability Connector - Datamate

  • Hex Socket 5mm long Jackscrew bolt, to use with threaded jackscrews for board-mount strain relief.
  • Used with jackscrew types M7, and suitable for standard 4.5mm PC Tail J-Tek connectors.
  • M2 thread, 1.5mm A/F hex socket. See Component Specification C005xx for Torque recommendations.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.25g

Overall Dimensions (L x W x D) in mm:

7.00 x Ø3.80

Male Stud Length:

5.00mm

Thread Size:

M2

Availability

475 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 50

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 425

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
