M80-2270000B

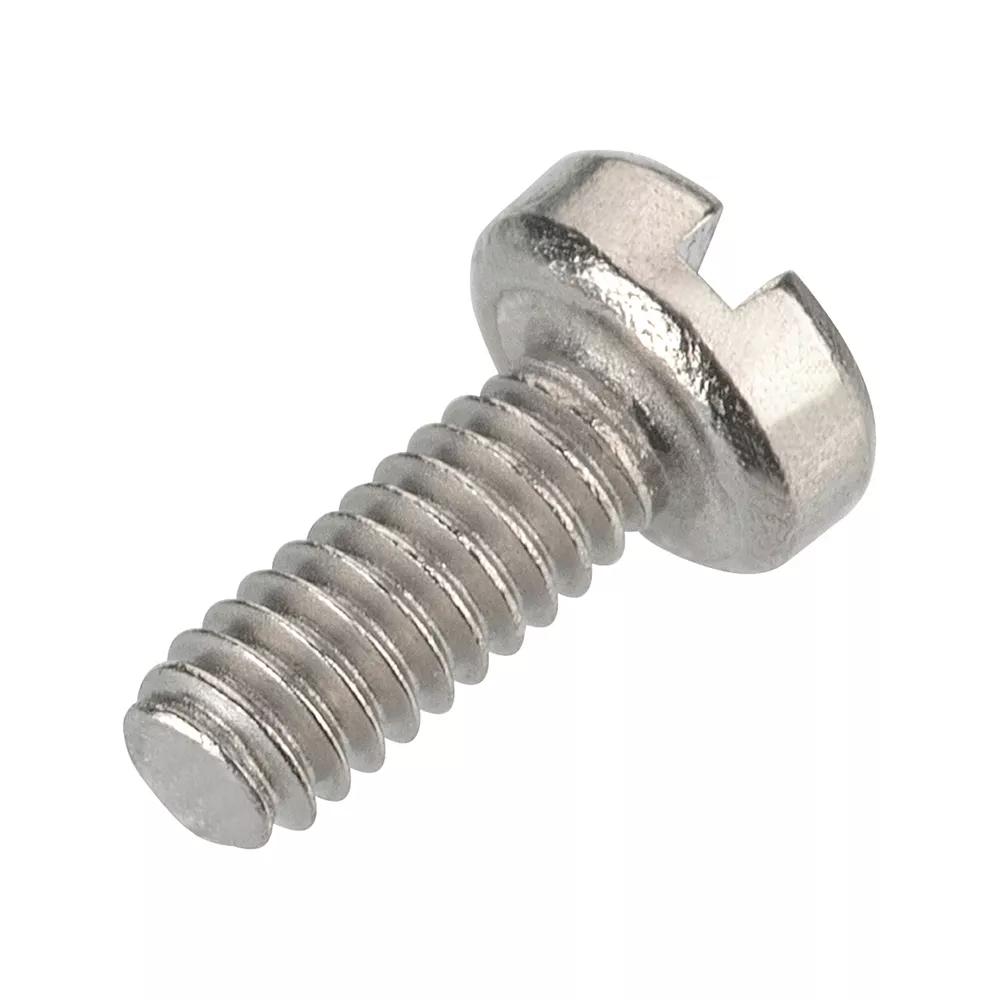

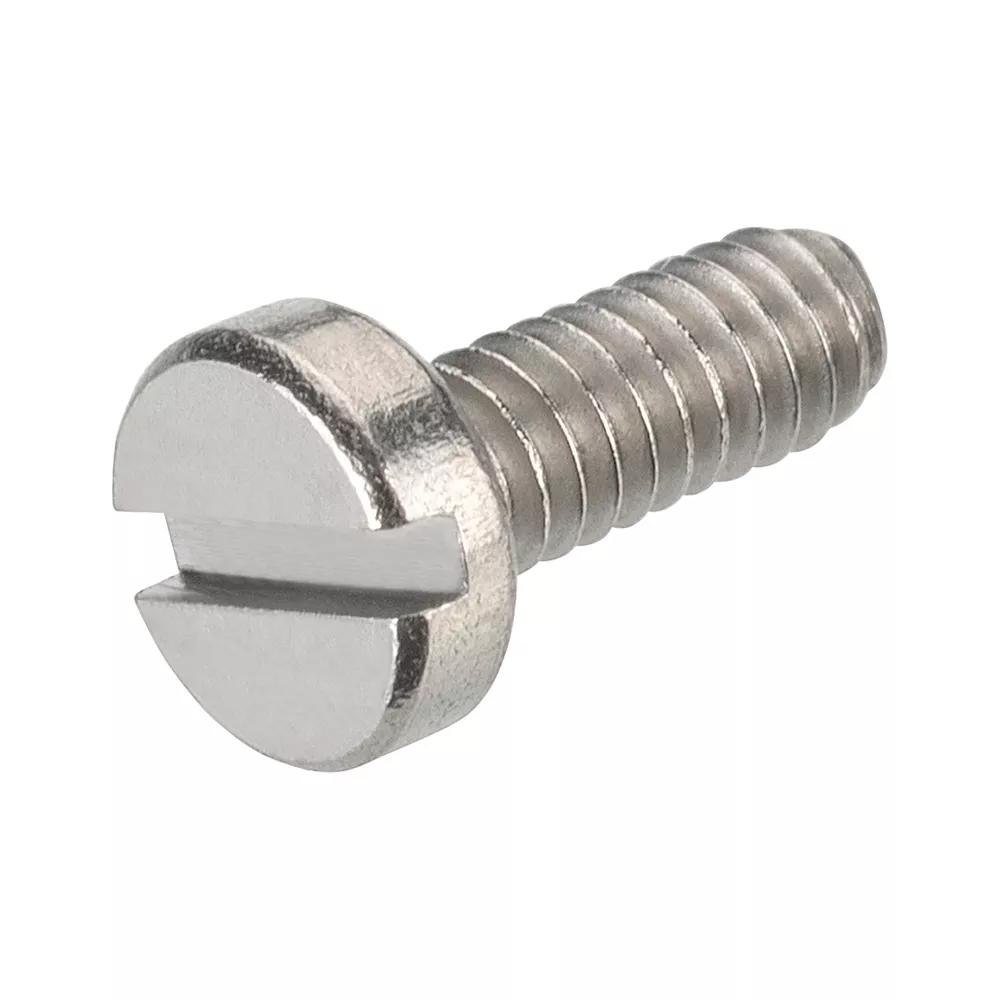

Panel Mount or Board Mount Jackscrew Bolt

2.00mm Pitch High-Reliability Connector - Datamate

  • Slotted 5mm long Jackscrew bolt, to use with threaded jackscrews for board-mount strain relief.
  • Used with jackscrew types M5, MD, ML, MP, and standard 4.5mm PC Tail J-Tek connectors.
  • M2 thread. See Component Specification C005xx for Torque recommendations.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.224g

Overall Dimensions (L x W x D) in mm:

6.50 max x Ø4.00 max

Male Stud Length:

5.00mm

Thread Size:

M2

Availability

5,683 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1248
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 540
Distributor Anglia
Location Europe
Quantity (Updated Daily) 50
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 35

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 3810

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
