Home > M80-1940005
Active

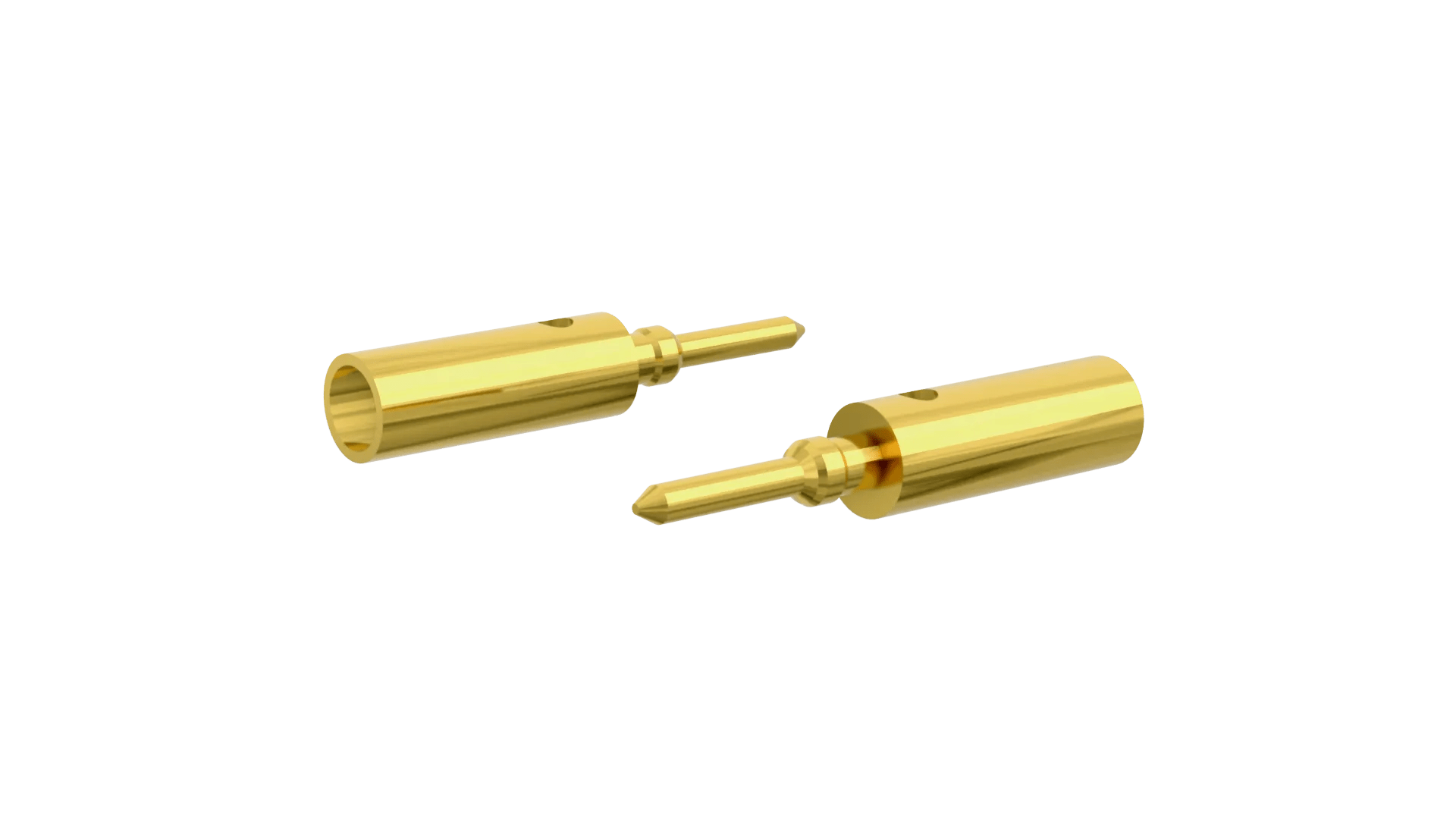

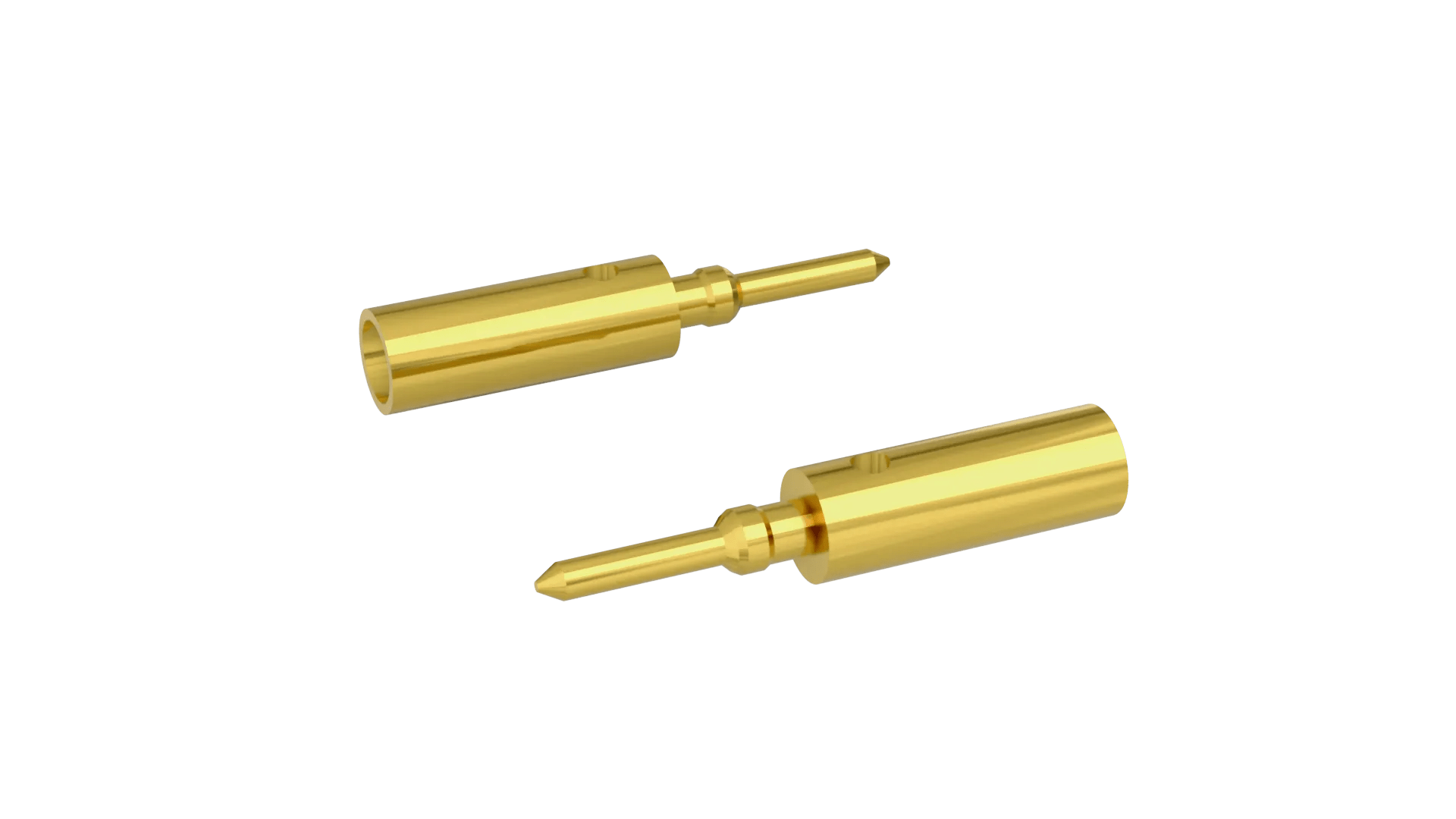

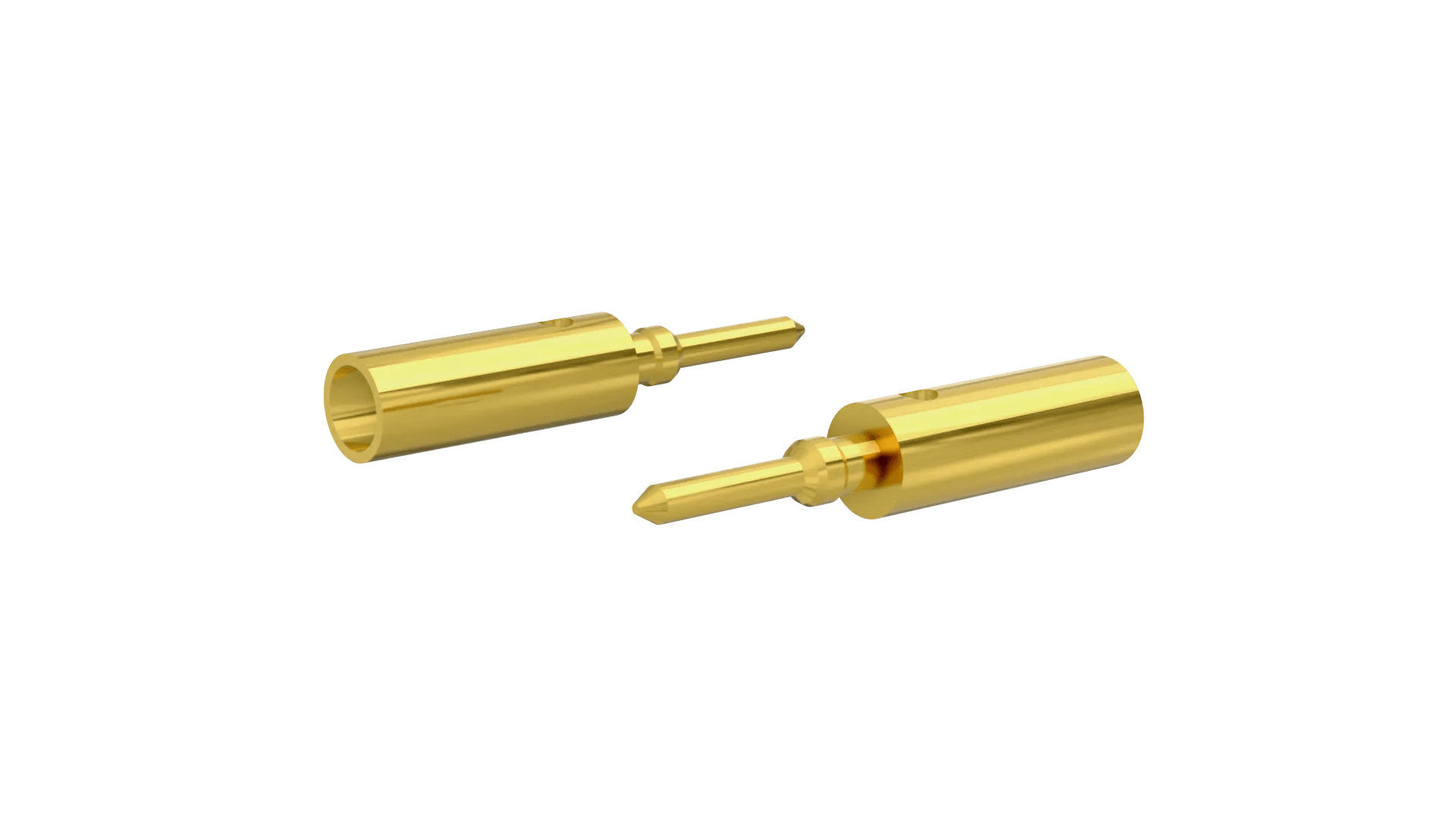

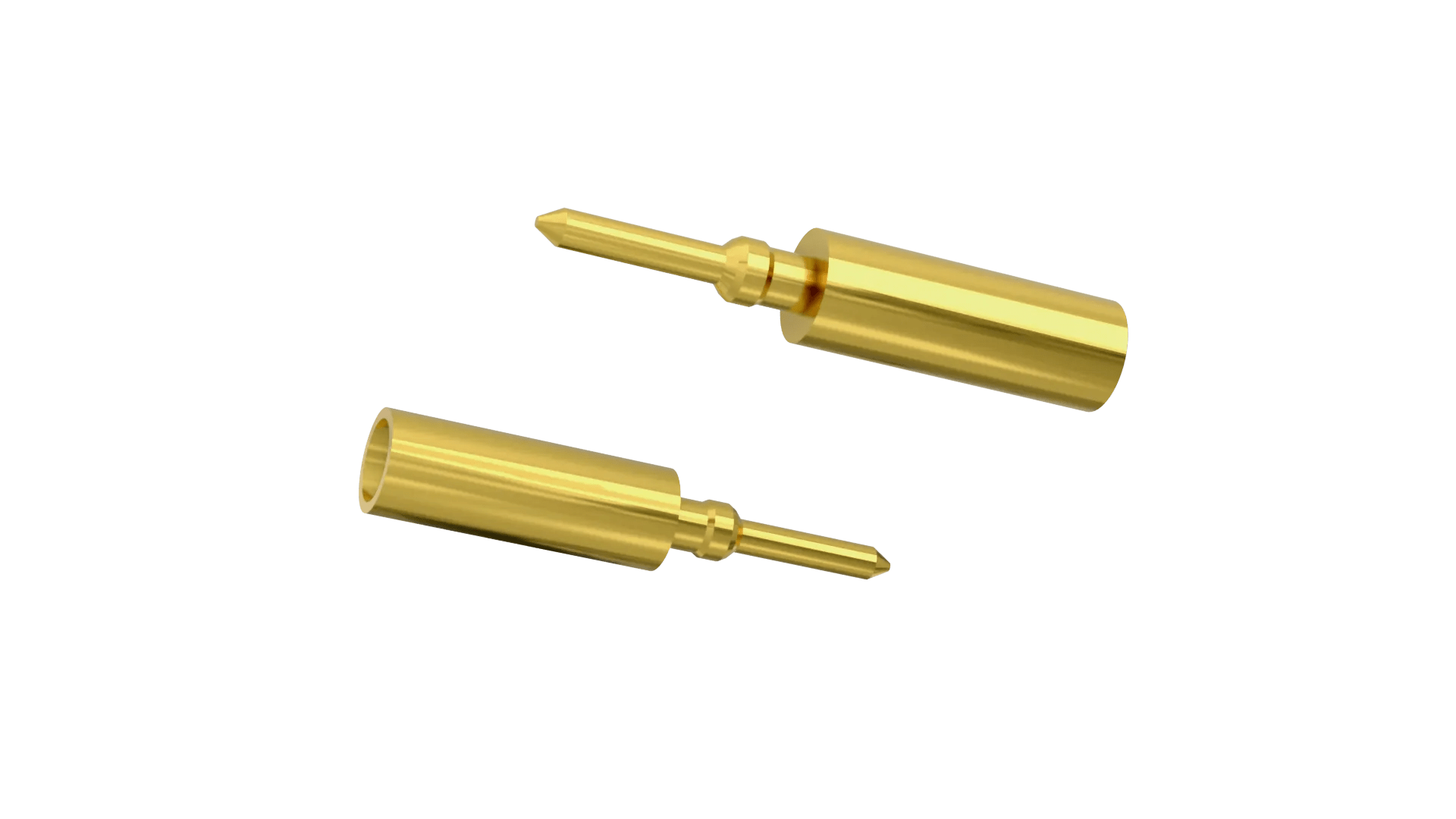

M80-1940005

Male 22AWG Cable Crimp Contact

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Large Bore signal contact, for 22 AWG wire (Ø1.1mm max insulation).
  • Use with male crimp connectors in the Datamate J-Tek, Mix-Tek & S-Tek ranges.
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.043g

Overall Dimensions (L x W x D) in mm:

7.63 x Ø1.46

Availability

6,459 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2758
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1900
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1801

Questions & Answers Ask a Question

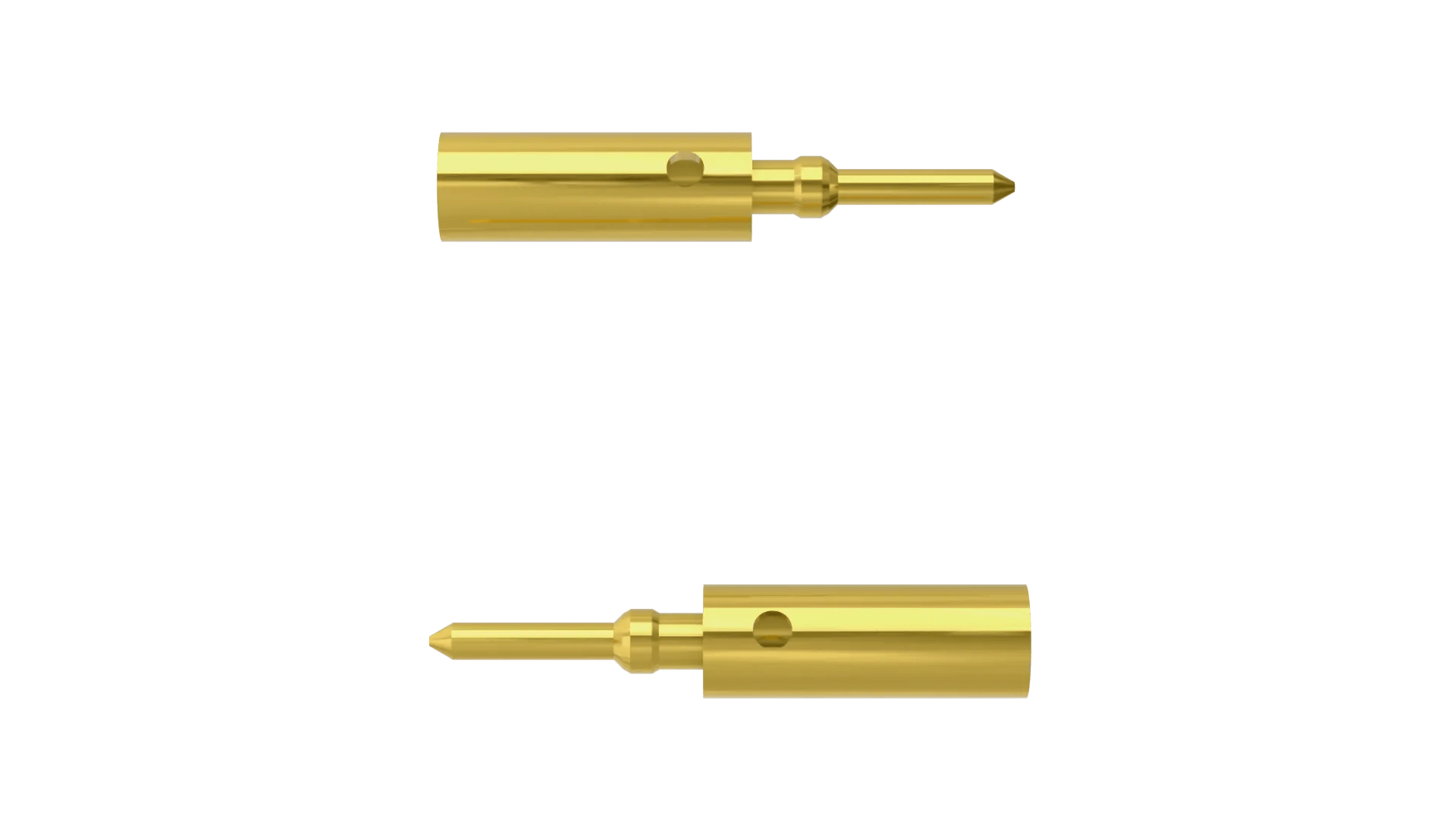

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
