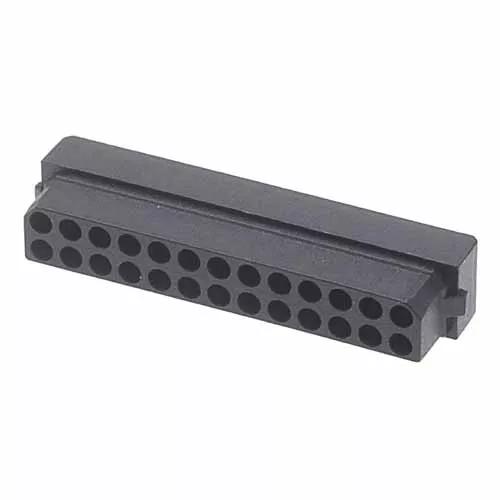

13+13 Pos. Female DIL Cable Housing for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
EU RoHS Status:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
29.15 max x 5.40 x 7.50
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
