Home > M80-1030898S
Active Product

M80-1030898S

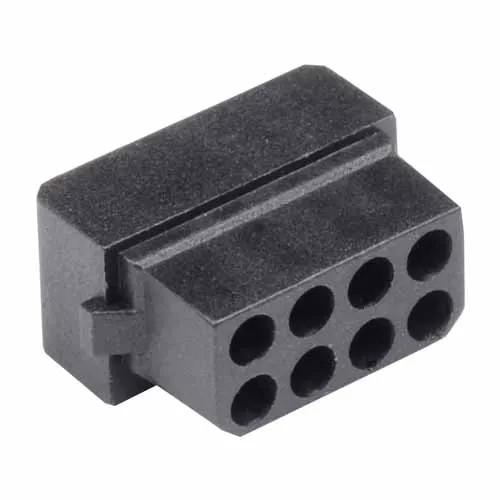

4+4 Pos. Female DIL Cable Housing for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

5,280 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

8

Materials

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.375g

Overall Dimensions (L x W x D) in mm:

11.15 max x 5.40 x 7.50

Frequently Asked Questions Ask a Question

I need .STEP of M80-1030898S?

Our CAD Models are downloadable in ZIP format, and always contain STP models. Most also contain IGES versions, but not always (depending on filesize). You can find the link in the top section of the product page, there is a button labelled “CAD Models”. When you click on this, you are offered the choice of Harwin or SamacSys models – the Harwin model is the one you need, and it does not require registration.

Was this answer useful?

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
