M80-1010698S

6 Pos. Female SIL Cable Housing for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

Single Row Crimp housing (6 contact) only, see Alternative Products for complete connector kits.
Use with crimp contacts M80-0110005 (22AWG), M80-0130005 (24-28AWG) or M80-0190005 (28-32AWG).
For complete pin numbering or pin out information, see Component Specification C005XX.

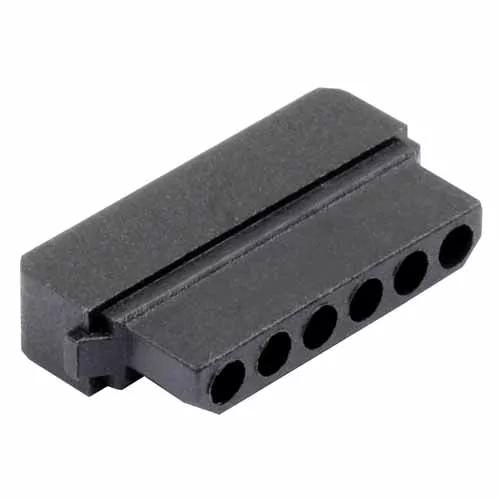

M80-1010698S - 6 Pos. Female SIL Cable Housing for Latches

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.333g

Overall Dimensions (L x W x D) in mm:

15.15 max x 3.40 x 7.50

Mating Profiles:

Catalog page - Datamate L-Tek Mating Profiles

Frequently Asked Questions Ask a Question

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
