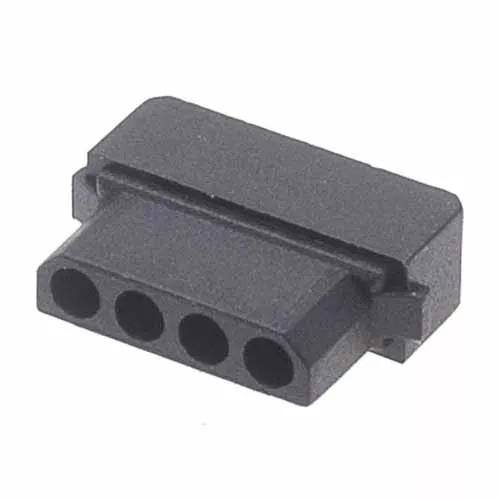

Image may be representative. Refer to the product title for more information.
Single Row Crimp housing (4 contact) only, see Alternative Products for complete connector kits.
Use with crimp contacts M80-0110005 (22 AWG), M80-0130005 (24-28 AWG) or M80-0190005 (28-32 AWG).
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
Compatible with latches
Mating Pin Size
Ø0.5mm
Number of Rows
1
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
4
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
3.3A max individual contact, 3A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Housing Material
PBT
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
0.236g
Dimensions
11.15 max x 3.40 x 7.50
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-101S.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Product Information
Catalog page - Datamate L-Tek Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet
IS-25 - Z80-280 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)
Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-101 series
RoHS Declaration - M80-1010498S
