M80-1010298S

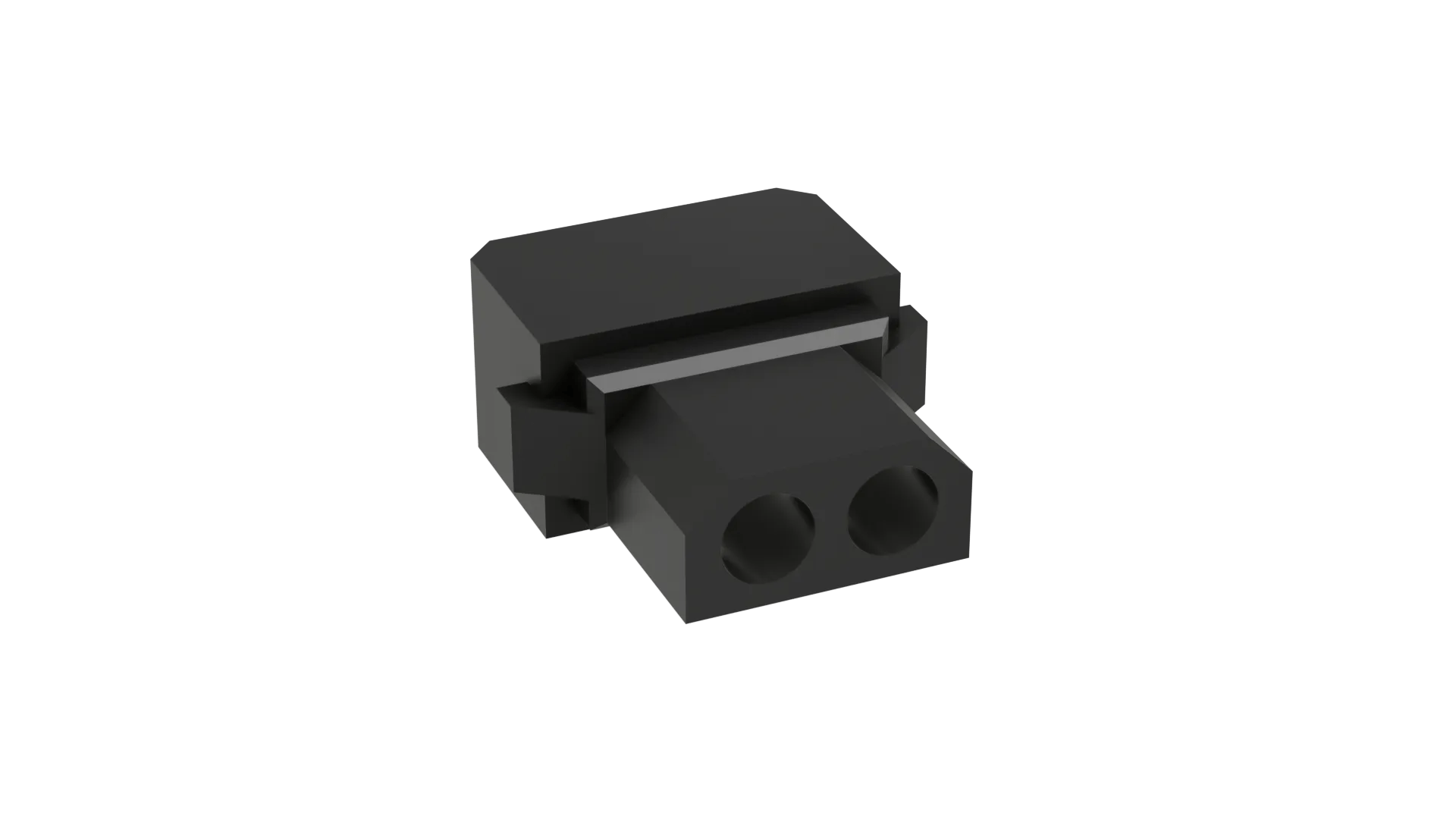

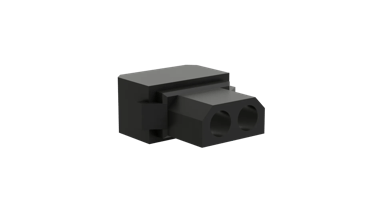

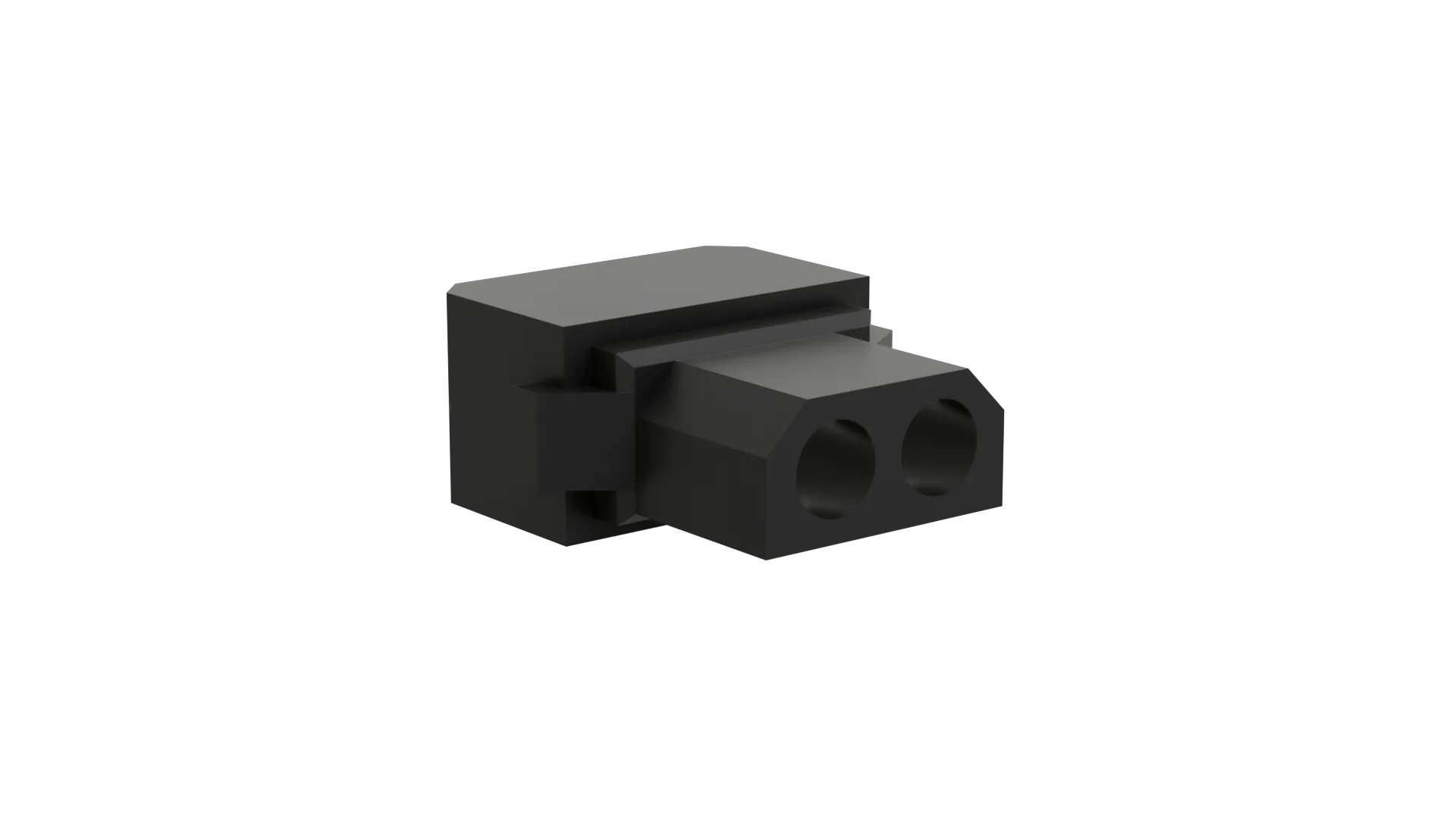

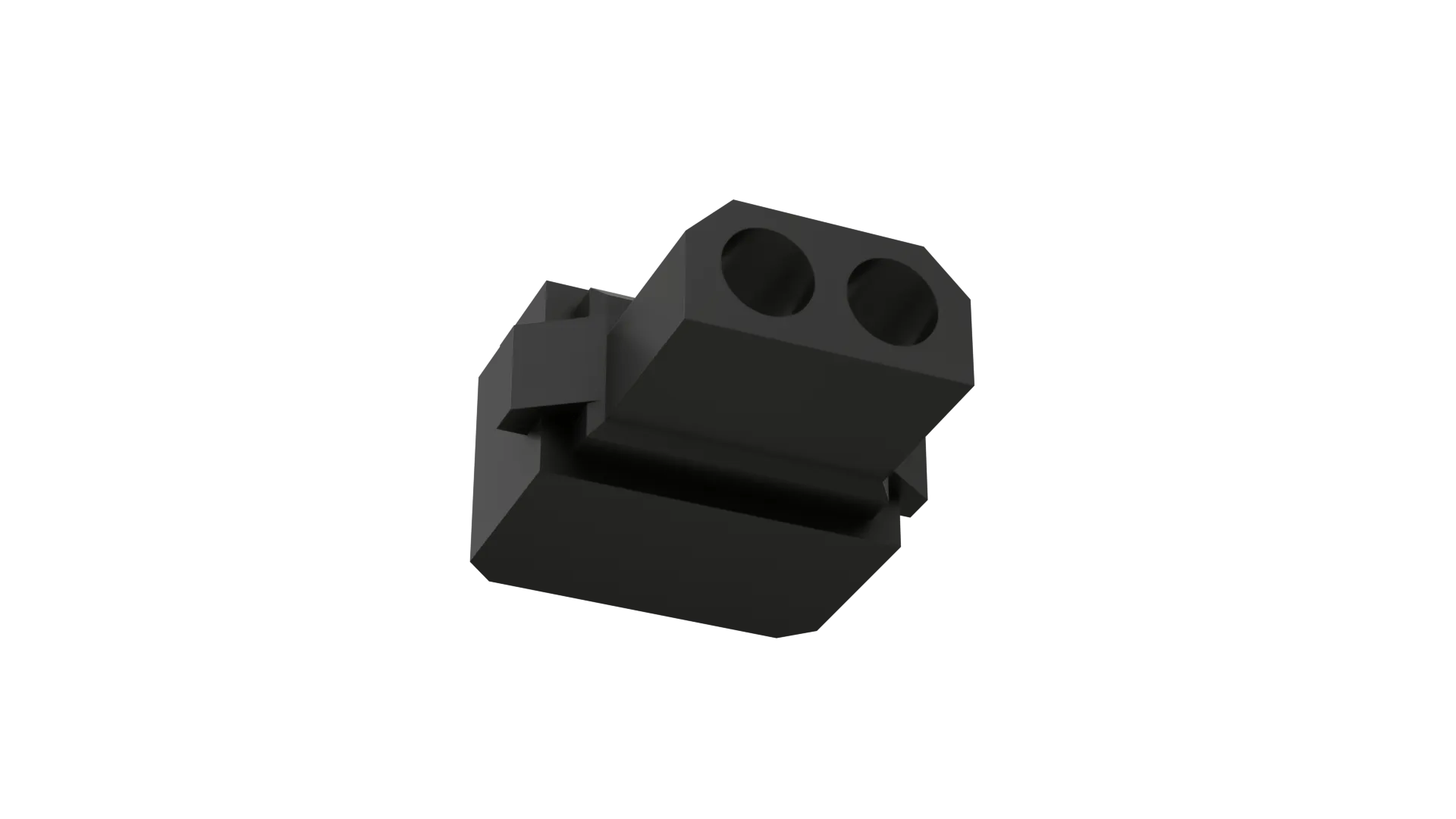

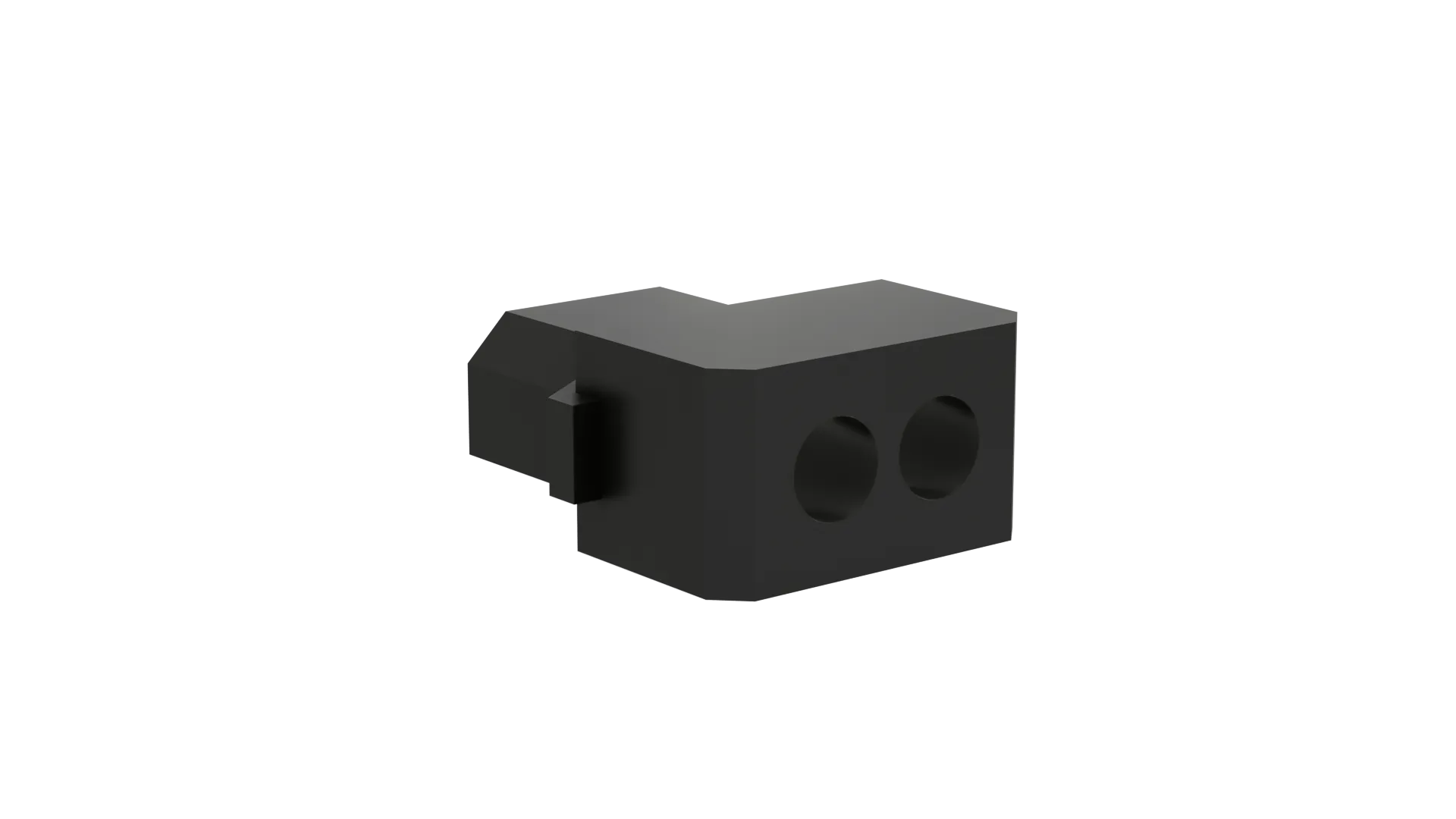

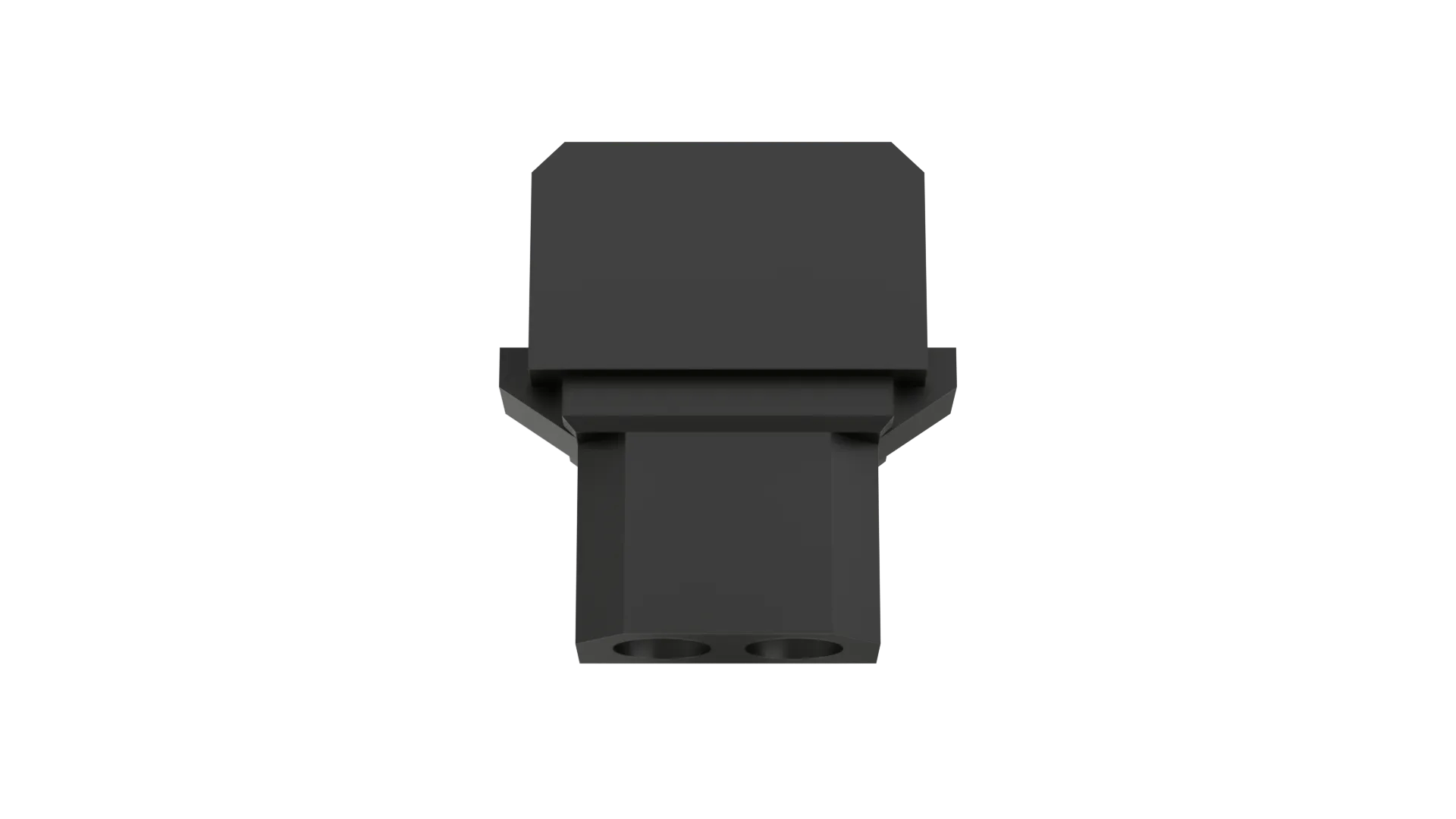

Datamate L-Tek Female SIL crimp housing compatible with latches, 2 contacts


2.00mm Pitch High-Reliability Connector - Datamate L-Tek

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Compatible with latches

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    2

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Housing Material:

    PBT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    0.144g

  • Dimensions:

    7.15 max x 3.40 x 7.50

Downloads

    Product Information

  • Catalog page - Datamate L-Tek Mating Profiles

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-101S.pdf

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-1010298S

  • Material composition for M80-101 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
