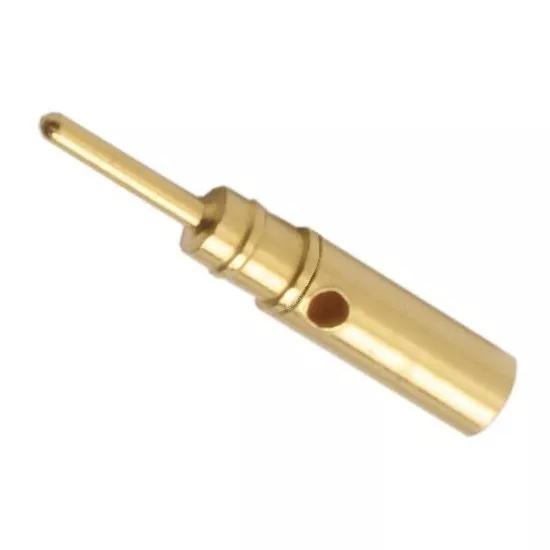

M80-0410005
Male 24-28AWG Cable Crimp Contact
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
24,538 in stock Check availability
1 similiar products View products
Samacsys account required
No login is required
Product Description
- Small Bore signal contact, for 24-28 AWG wire (Ø1.1mm max insulation).
- Use with male crimp connectors in the Datamate L-Tek range only.
- Gold finish on contact area and termination.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24-28AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.059g
Overall Dimensions (L x W x D) in mm:
8.63 x Ø1.46
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
Downloads
TECHNICAL DOCUMENTS
TEST REPORTS
INSTRUCTION SHEETS
OTHER DOWNLOADS
