M80-023

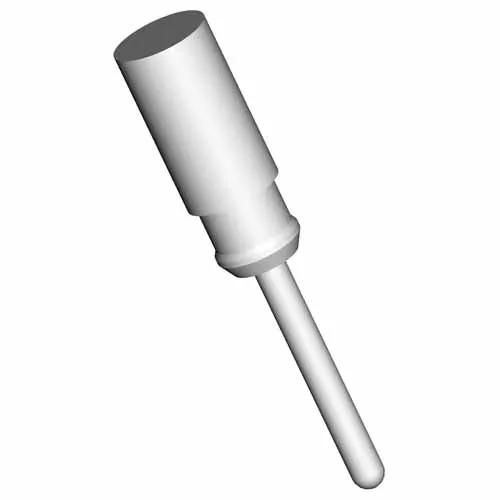

Dummy Contact, Blanking Pin, Polarizing Pin for Female Connectors

2.00mm Pitch High-Reliability Connector - Datamate

  • For keying or additional polarization, use in place of a Crimp or PC Tail signal contact on any female Datamate.
  • Remove the equivalent male pin from the mating connector.
  • Nickel finish, supplied loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Nickel

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.057g

Overall Dimensions (L x W x D) in mm:

7.65 x Ø1.45

Availability

17,395 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1395

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 16000
