M80-0190005

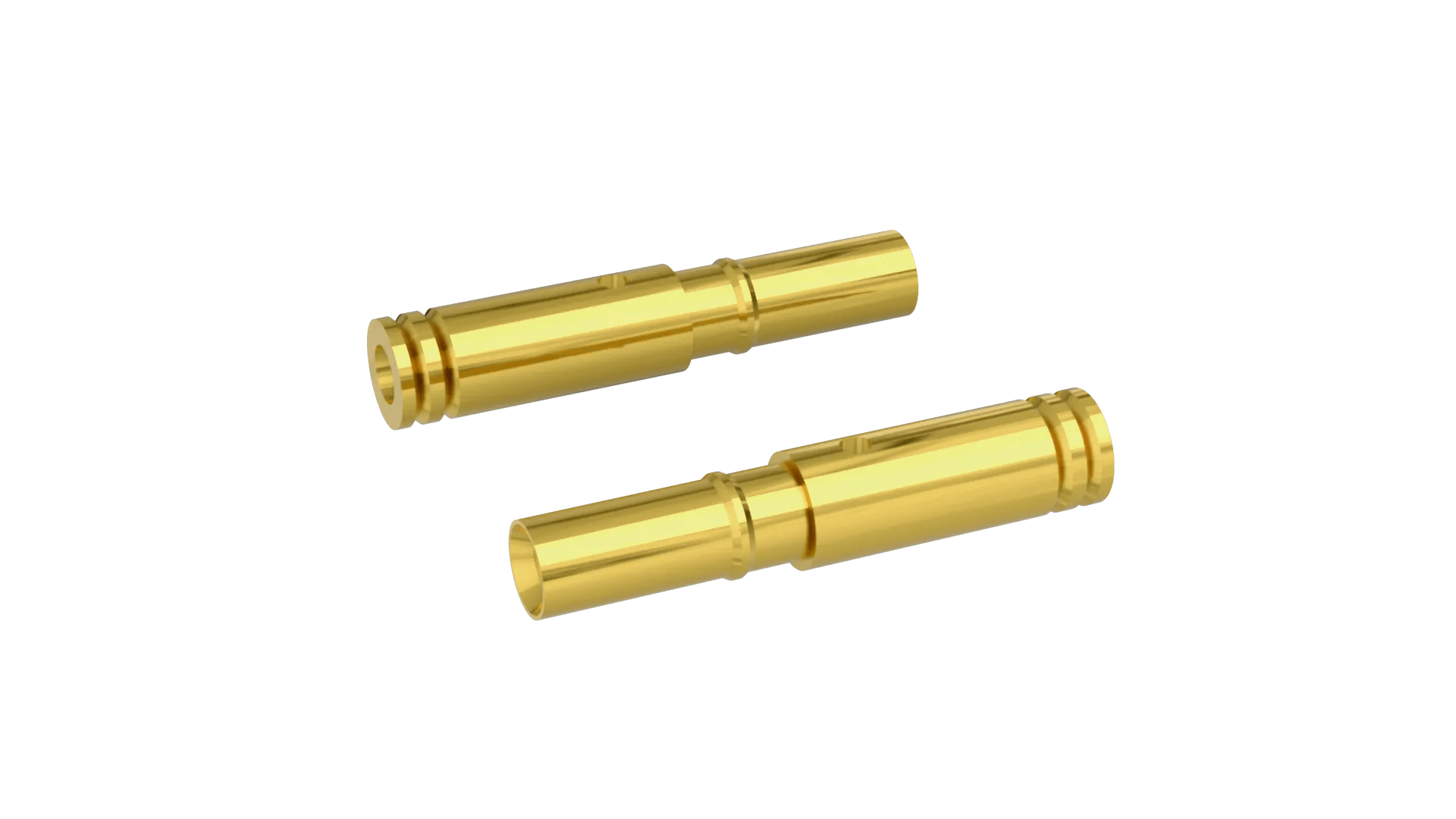

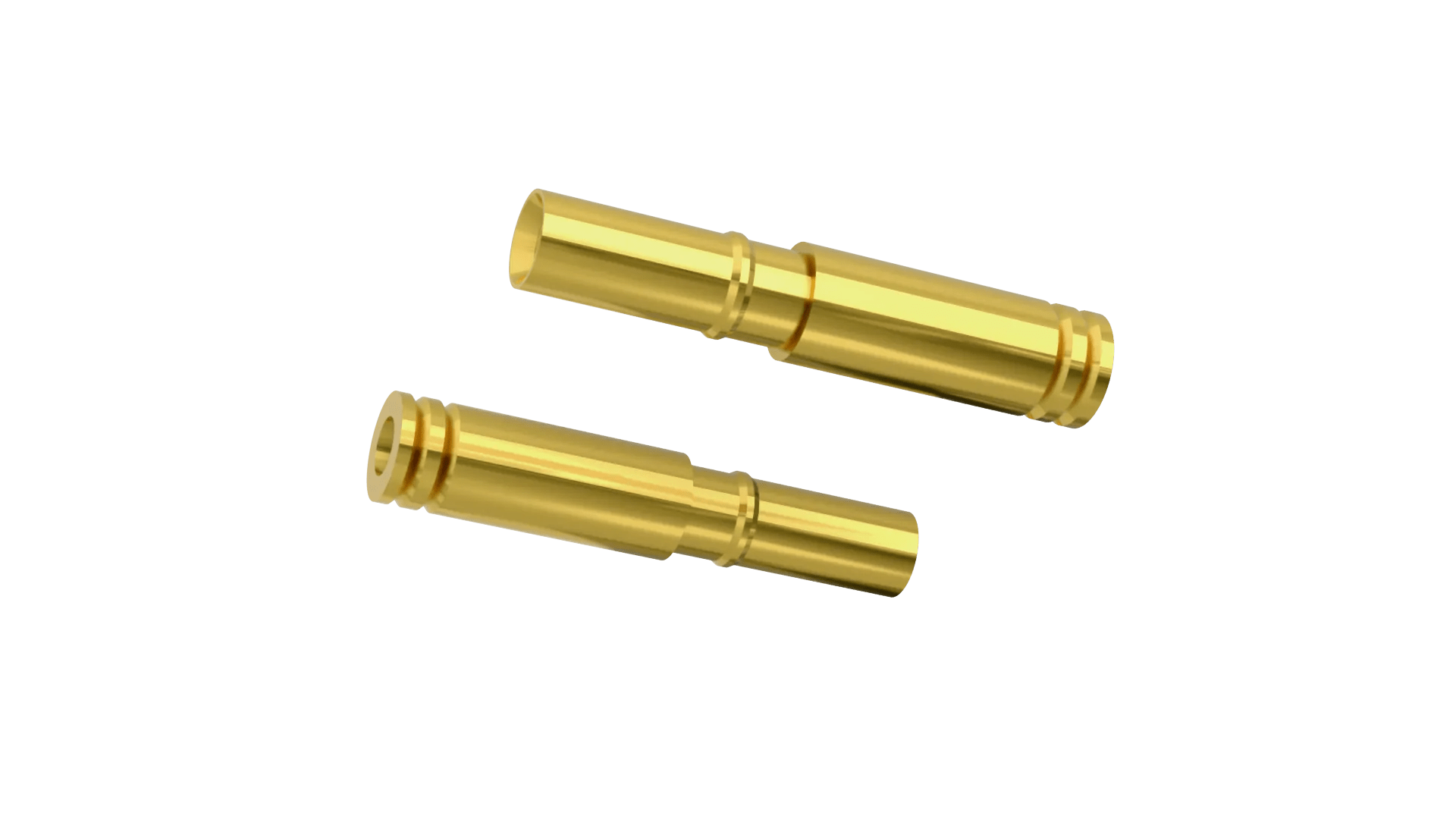

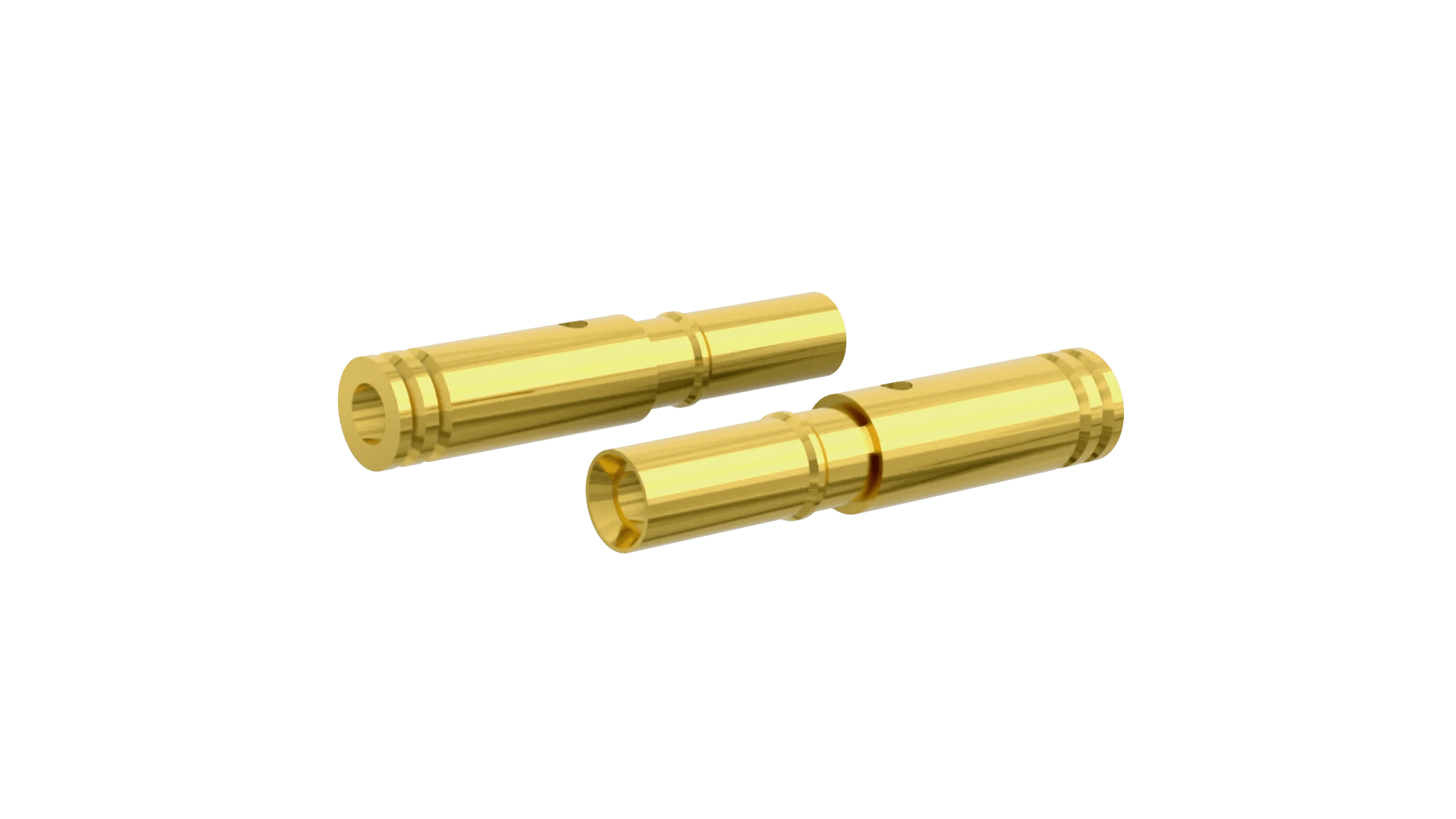

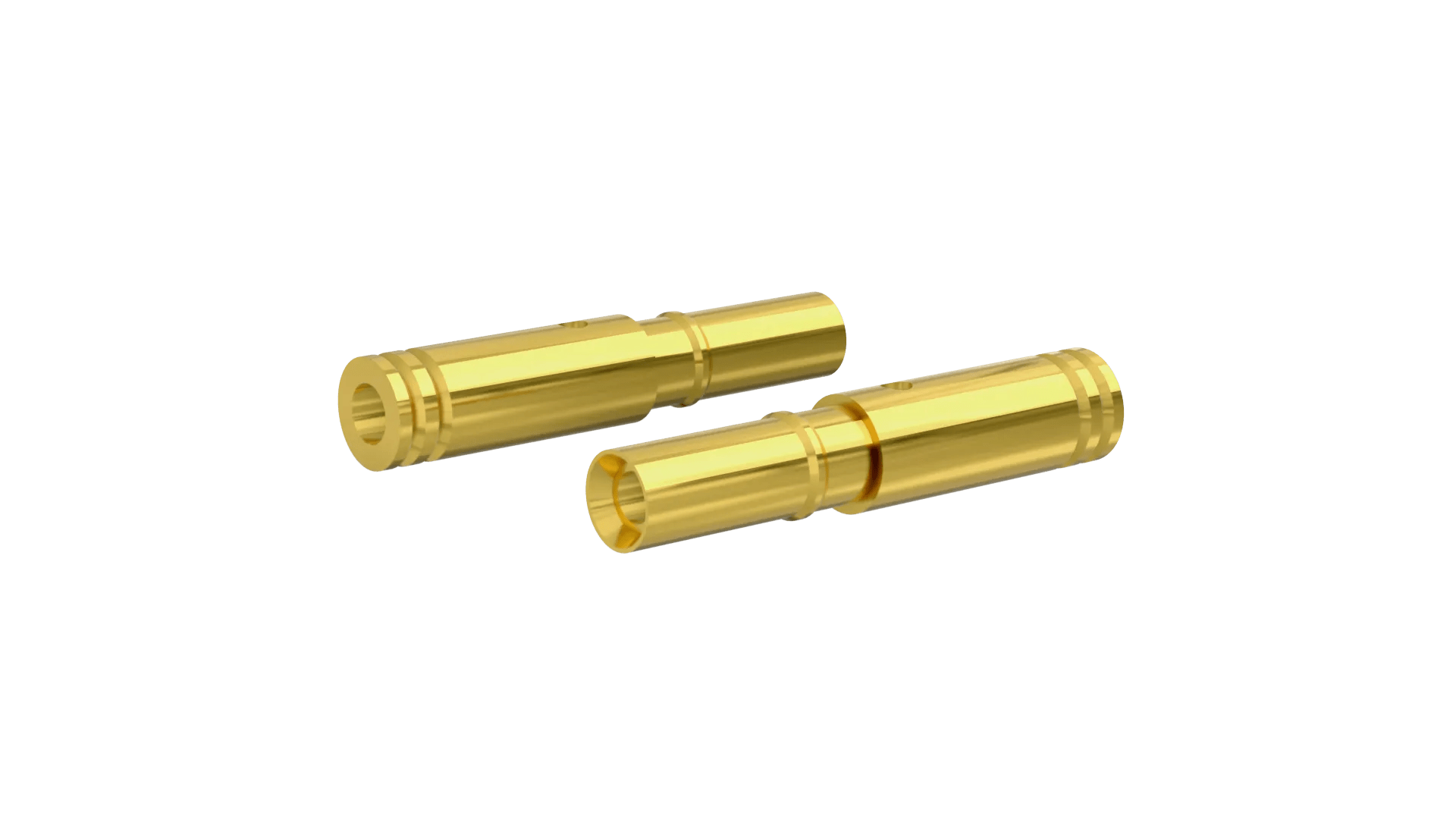

Female 28-32AWG Cable Crimp Contact

2.00mm Pitch High-Reliability Connector - Datamate

  • Extra Small Bore signal contact, for 28-32 AWG wire (Ø0.75mm max insulation).
  • Use with all types of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

28-32AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.073g

Overall Dimensions (L x W x D) in mm:

7.45 x Ø1.46

Availability

24,087 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 9057
Distributor Anglia
Location Europe
Quantity (Updated Daily) 3980
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3115
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2811
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2652
Distributor Newark
Location USA
Quantity (Updated Daily) 2472

Questions & Answers Ask a Question

Can I use contact M80-0190005 with Connector M80-4611042 instead of the supplied contacts?

Yes, you can use M80-0190005 contacts with this connector – our large bore (M80-0110005), small bore (M80-0130005) and extra small bore (M80-0190005) crimps are all interchangeable in the Datamate signal housings. If you want to purchase M80-4611042 with M80-0190005 already supplied in the kit, this is part number M80-4E11042F1. You can also purchase the housings without any contacts as part number M80-4131098, and purchase the M80-0190005 contacts separately.

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

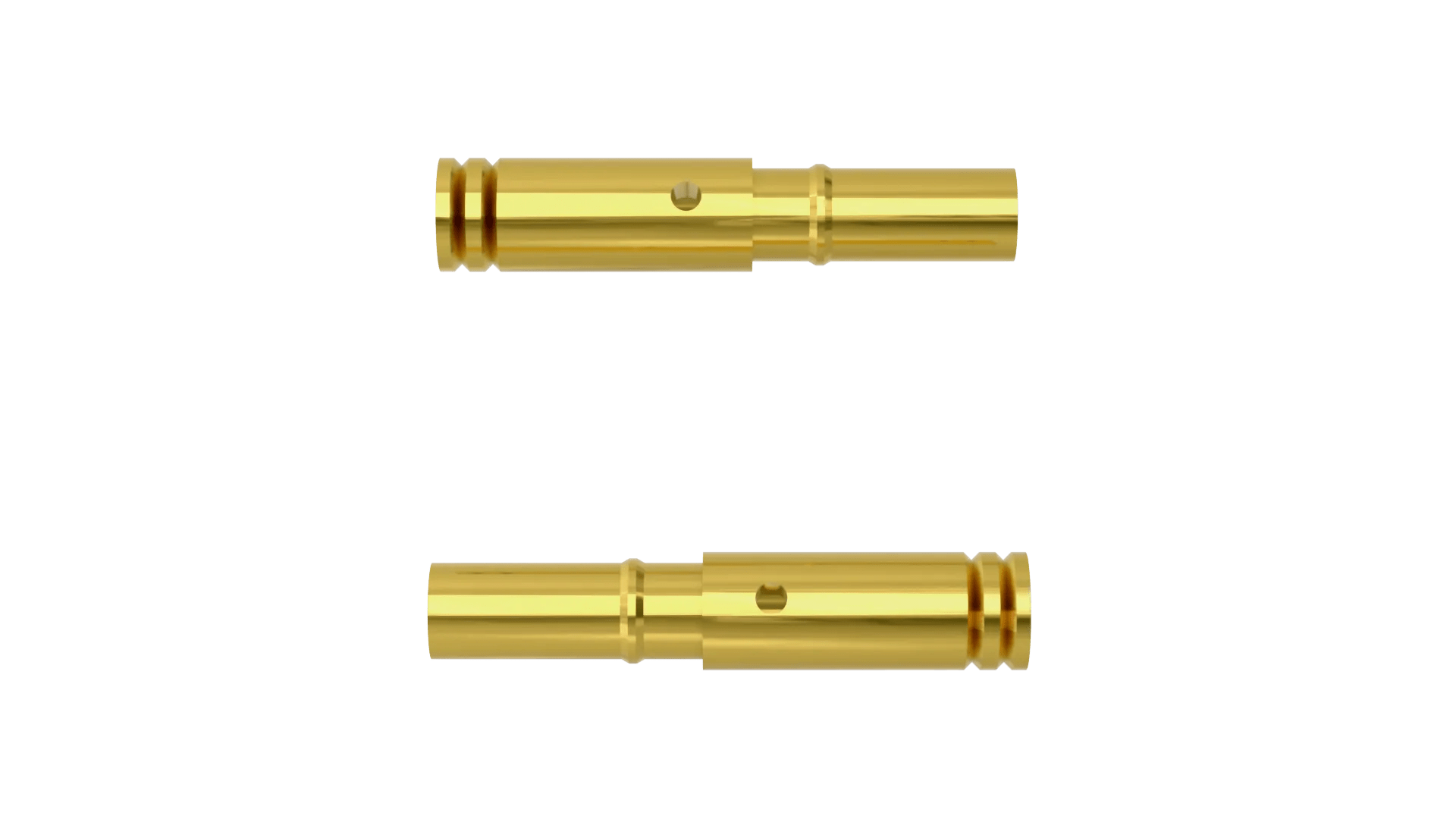

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
