M80-0030006

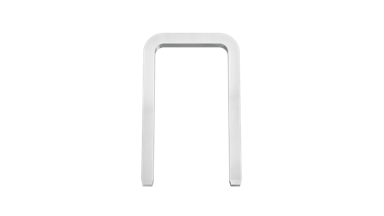

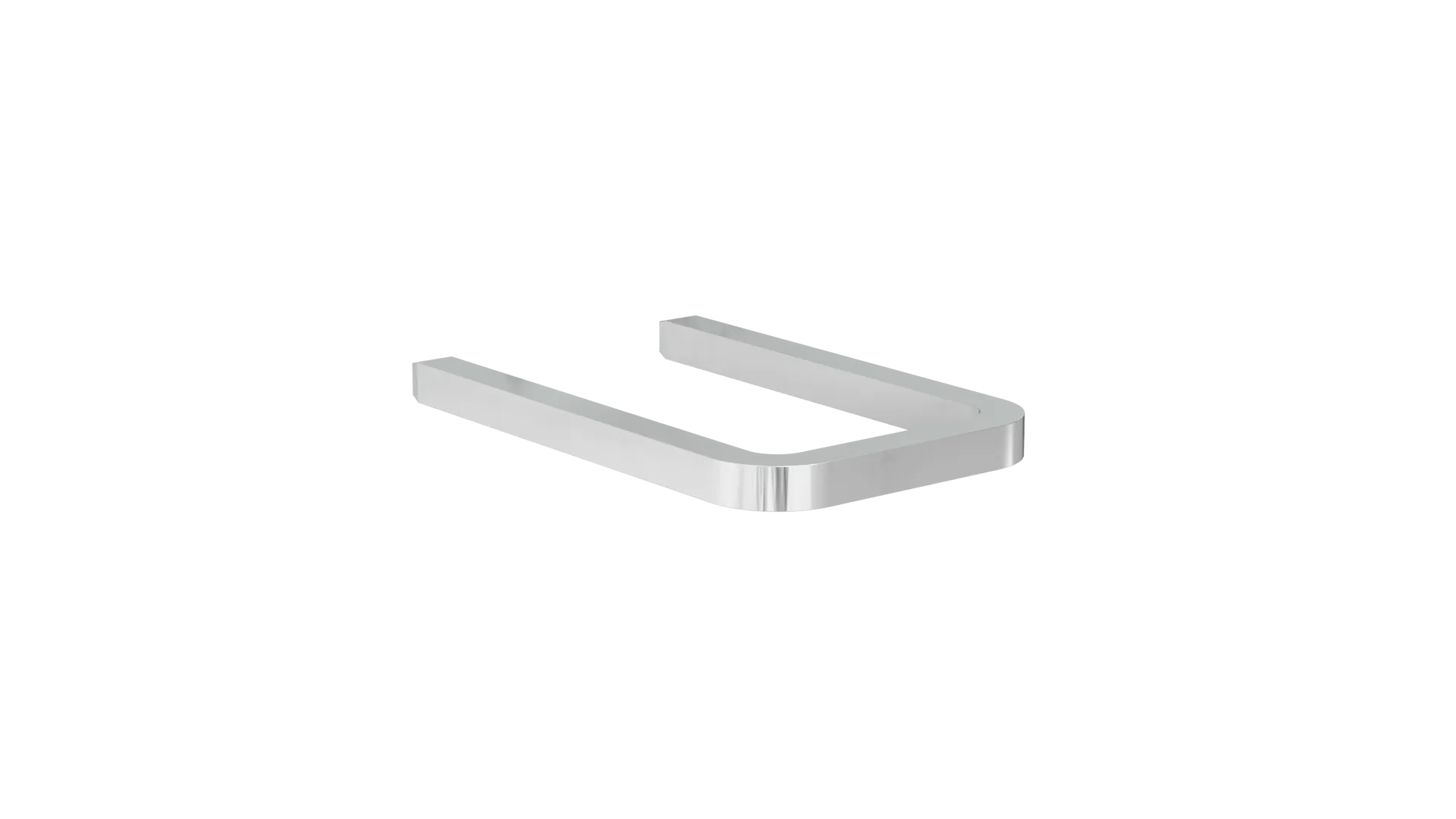

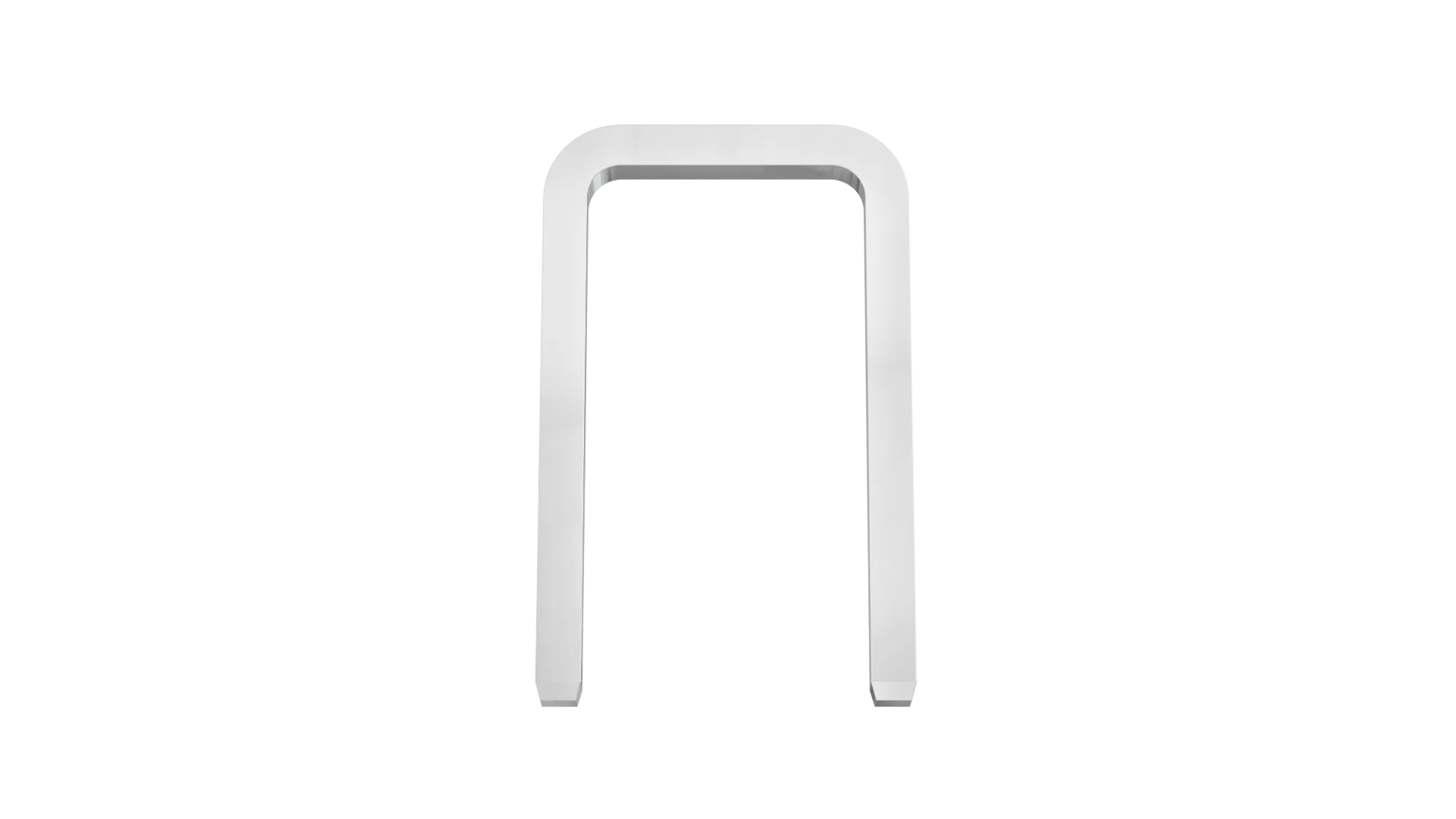

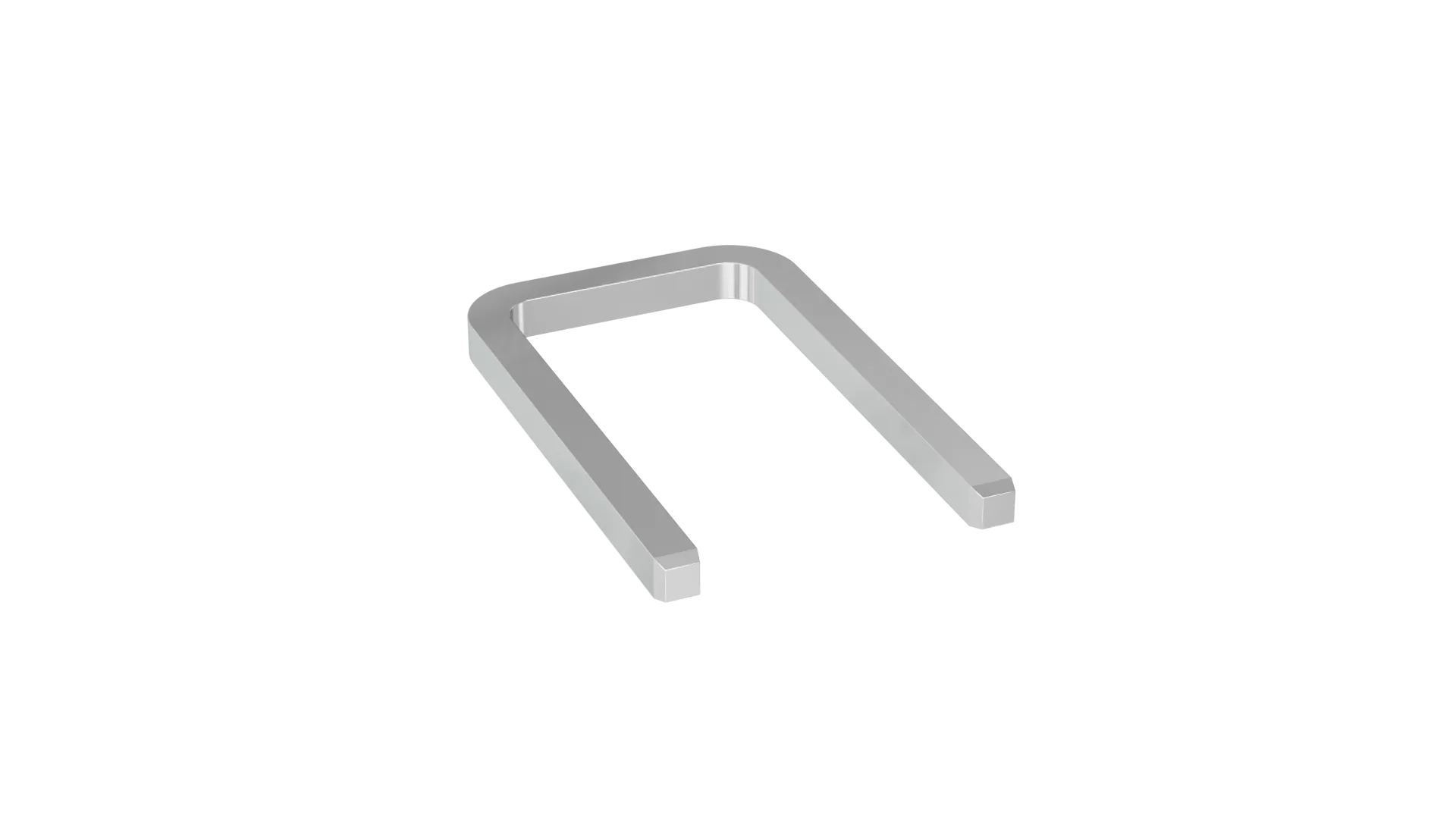

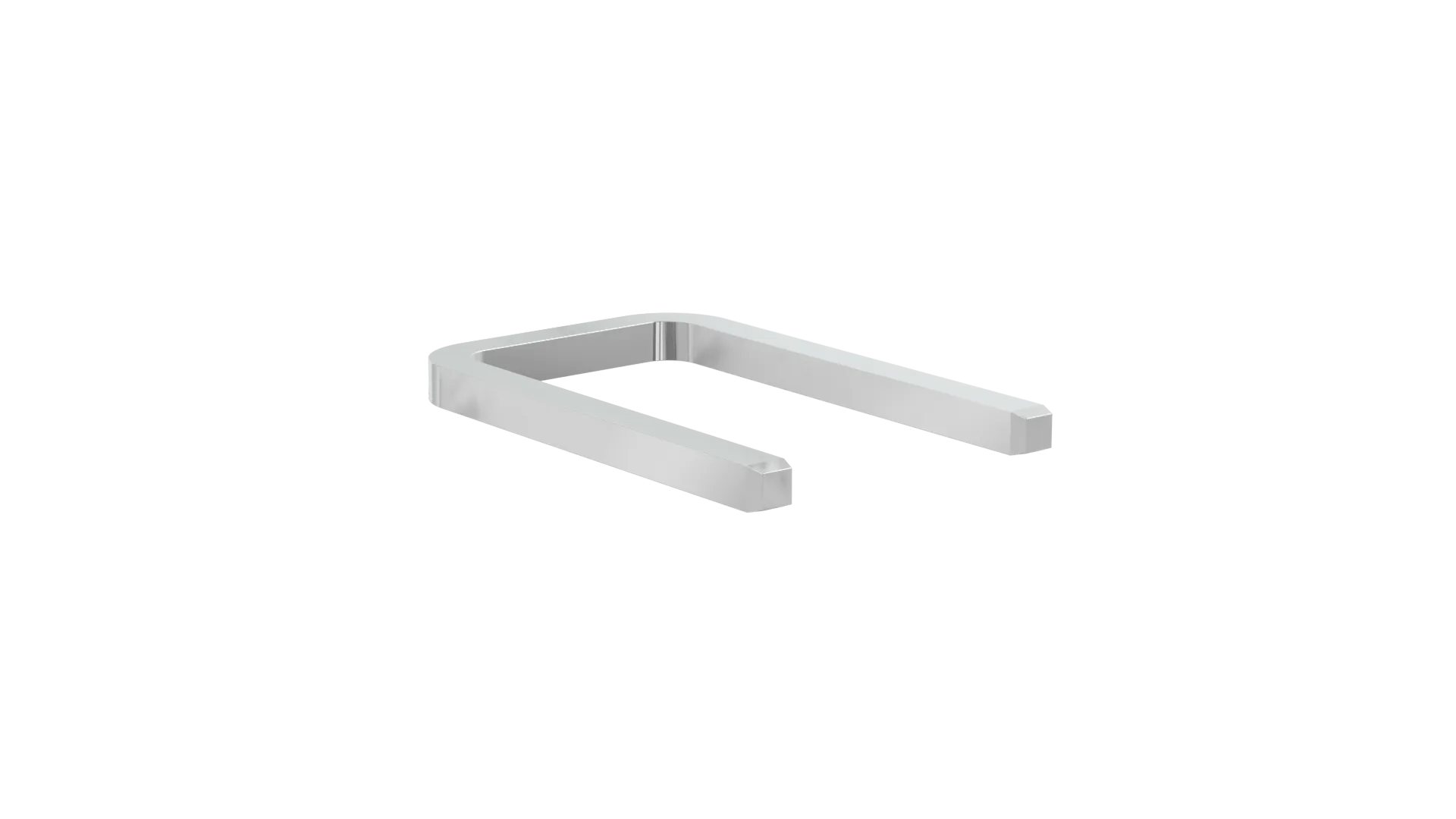

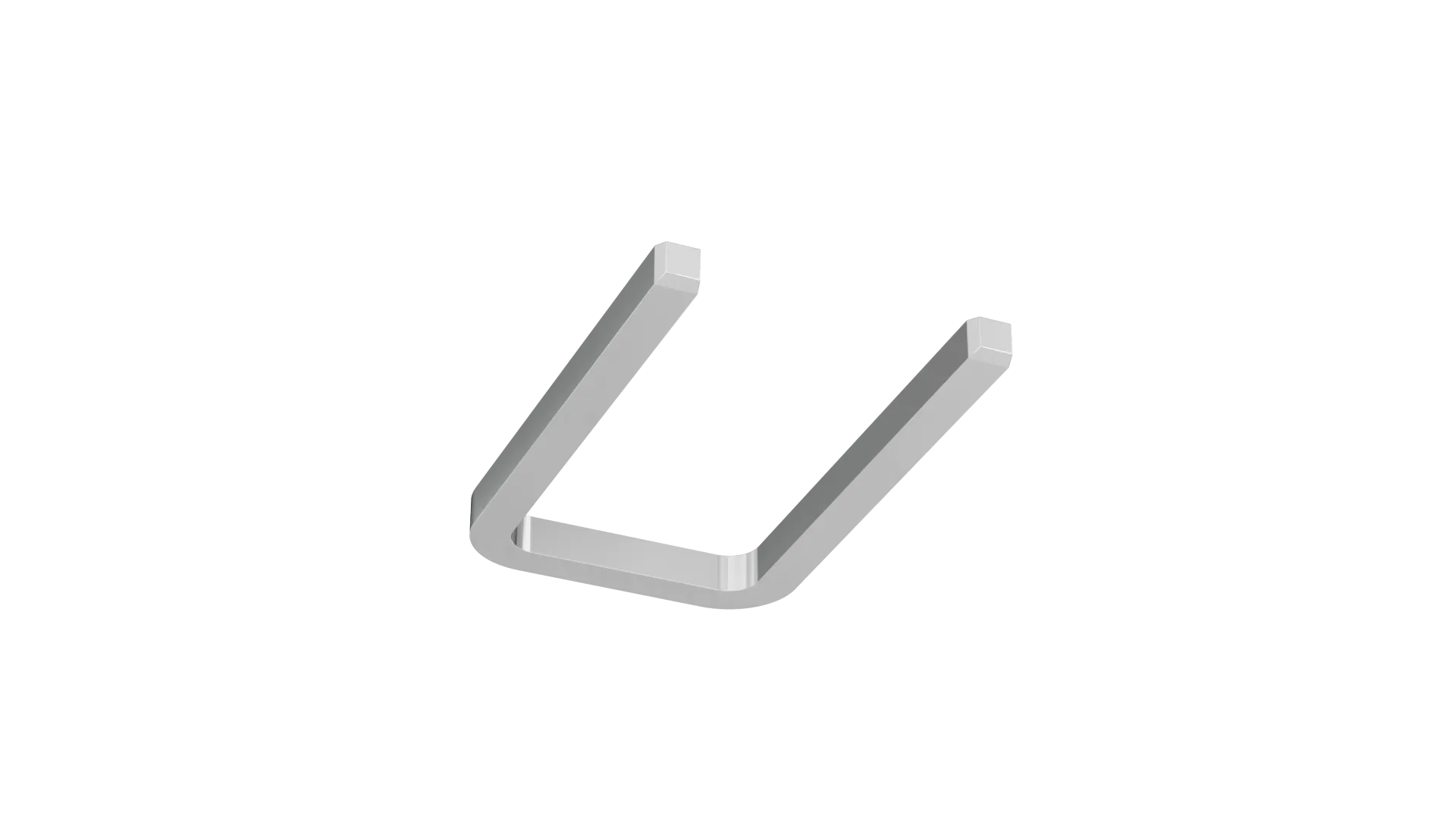

Spare Strain Relief Strap for Male Connectors

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Strain Relief strap, to give added security to the male connectors.
  • Supplied with all horizontal male L-Tek connectors, can also be used with vertical.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Accessory

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.077g

Overall Dimensions (L x W x D) in mm:

5.39 x 0.64 x 8.64
