M7967-05

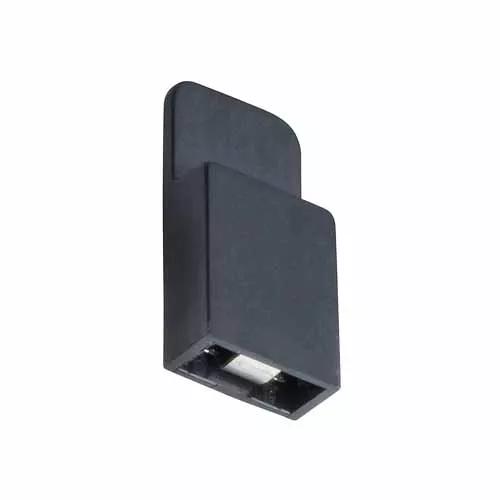

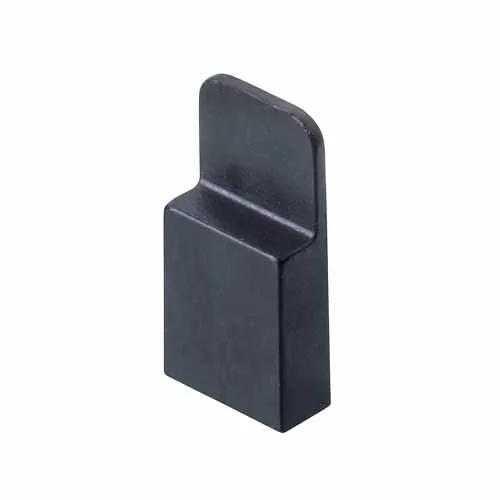

2 Pos. Female Jumper Socket, Handle Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Closed Top jumper socket or shunt, Solid handle (10.3mm total height) - Black housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 3373 Buy Now
Mouser Electronics Inc Global 1939 Buy Now
TTI Europe Europe 152000 Buy Now
TTI Inc USA 869 Buy Now
Harwin Europe 76000

Stock available: contact distributor to purchase

View more stock

Part Number Stock Count View Stock
M7966-46 17923 View Stock
M7967-05 234181 View Stock
M7967-46 77471 View Stock
M7971-05 10151 View Stock
M7971-46 2880 View Stock

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Jumper Socket
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +85°C

Materials

+
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.136g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 2
Height of Connector above PCB: 10.3mm
End Stackable: Yes
Side Stackable: Yes
Polarising Features: No
Can be cut to another size: No

Related Products

+
Product Family: M7965-M7971

Mating Products
