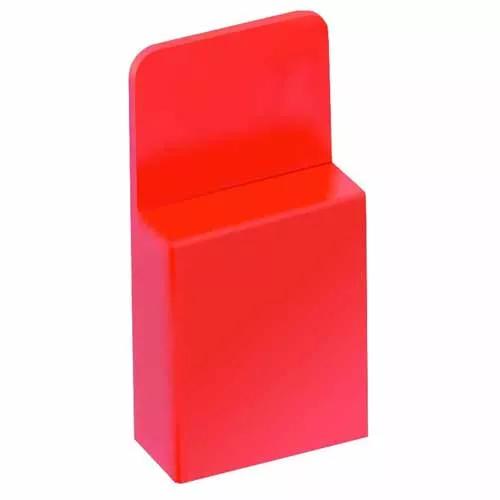

2 Pos. Female Jumper Socket, Handle Shunt, Red
2.54mm (0.1") Pitch PCB Connector - M20 Series
26,905 in stock Check availability
7 similiar products View products
- Closed Top jumper socket or shunt, Solid handle (10.3mm total height) – Red housing color, Tin finish.
- High-Reliability Multi-Usage, up to 50 operations.
- Alternative programming method to DIP switches.
EU RoHS Status:
Mating Pin Size:
3A at 25°C
-40°C to +85°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.00 x 2.30 x 10.30
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
