M7686-46

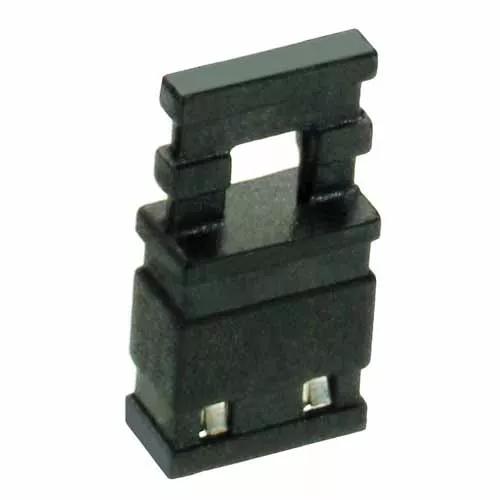

2 Pos. Female Jumper Socket, Handle Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Closed Top jumper socket or shunt, Flexible handle (10mm total height) – Black housing colour, Tin finish.
  • High-Reliability Multi-Usage, up to 50 operations.
  • Alternative programming method to DIP switches.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.128g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 10.00

Availability

Distributor Location Quantity
Digi-Key
Global
Status255
Harwin
Europe
Status1000
Mouser Electronics Inc
Global
Status2663

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M7684-M7687.pdf

ZIP

M7686-46 CAD Model (ZIP file containing STP and IGES)

PDF

C003XX Component Specification - M7XXX Series (2.54mm pitch Jumper Sockets)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M7684-M7687 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
