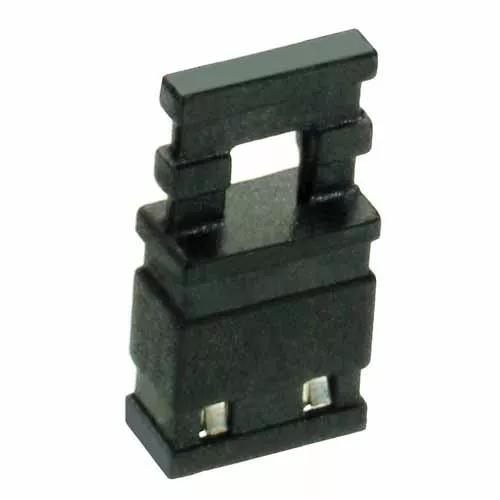

  • M7686-05 - 2 Pos. Female Jumper Socket, Handle Shunt, Black

M7686-05

2 Pos. Female Jumper Socket, Handle Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Closed Top jumper socket or shunt, Flexible handle (10mm total height) - Black housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 304 Website
Digi-Key Global 2520 Buy Now
Farnell Europe 1595 Buy Now
Mouser Electronics Inc Global 6957 Buy Now
Newark USA 44 Buy Now
TTI Europe Europe 19000 Website
TTI Inc USA 1292 Buy Now
Harwin Europe 76000

Stock available: contact distributor to purchase

View more stock

Part Number Stock Count View Stock
M7684-46 9 View Stock
M7685-05 168889 View Stock
M7685-46 4294 View Stock
M7686-05 107712 View Stock
M7686-46 7239 View Stock
M7687-05 19357 View Stock

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Jumper Socket
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +85°C

Materials

+
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.128g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 2
Height of Connector above PCB: 10mm
End Stackable: Yes
Side Stackable: Yes
Polarising Features: No
Can be cut to another size: No
