M7683-46

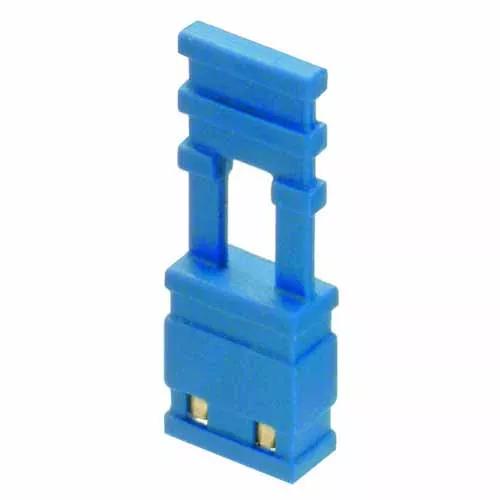

2 Pos. Female Jumper Socket, Handle Shunt, Blue

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Closed Top jumper socket or shunt, Flexible handle (14mm total height) – Blue housing color, Tin finish.
  • High-Reliability Multi-Usage, up to 50 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

3A at 25°C

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Blue

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.144g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 14.00

Availability

10,018 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
