  • M7682-05 - 2 Pos. Female Jumper Socket, Handle Shunt, Black

M7682-05

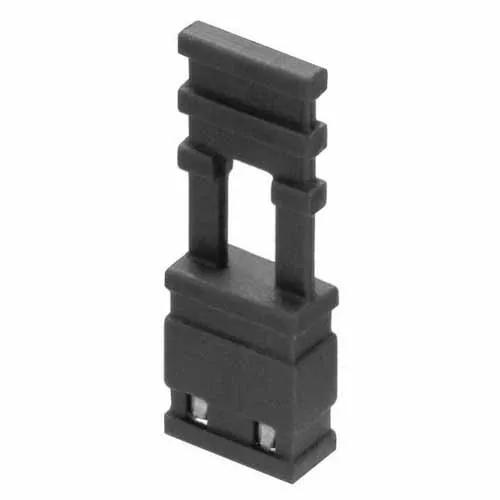

2 Pos. Female Jumper Socket, Handle Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Closed Top jumper socket or shunt, Flexible handle (14mm total height) - Black housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 1422 Website
Avnet Abacus Europe 8000 Buy Now
Digi-Key Global 1800 Buy Now
Farnell Europe 15796 Buy Now
Mouser Electronics Inc Global 2737 Buy Now
Newark USA 13796 Buy Now
TTI Europe Europe 8000 Website
Harwin Europe 100000

Stock available: contact distributor to purchase

View more stock

Part Number Stock Count View Stock
M7680-46 1530 View Stock
M7681-05 648881 View Stock
M7681-46 47595 View Stock
M7682-05 151551 View Stock
M7682-46 47172 View Stock
M7683-05 27717 View Stock
M7683-46 3057 View Stock

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Jumper Socket
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +85°C

Materials

+
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.144g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 2
Height of Connector above PCB: 14mm
End Stackable: Yes
Side Stackable: Yes
Polarising Features: No
Can be cut to another size: No
