M7681-46
2 Pos. Female Jumper Socket, Handle Shunt, Red
2.54mm (0.1") Pitch PCB Connector - M20 Series
21,399 in stock Check availability
8 similiar products View products
Traceparts account required
Product Description

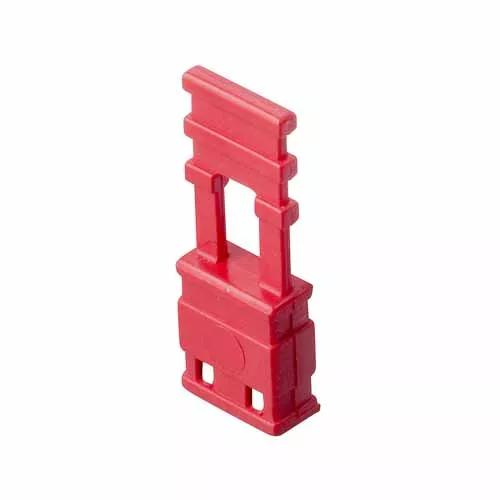

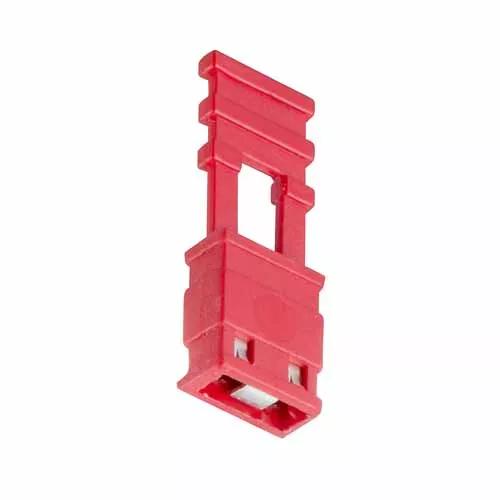

- Closed Top jumper socket or shunt, Flexible handle (14mm total height) – Red housing color, Tin finish.
- High-Reliability Multi-Usage, up to 50 operations.
- Alternative programming method to DIP switches.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Jumper Socket
Mating Pin Size:
0.64mm square
Current Rating:
3A at 25°C
Operating Temperature:
-40°C to +85°C
Polarising Features:
No
End Stackable:
Yes
Side Stackable:
Yes
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
2
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Housing Material:
PBT
Housing Colour:
Red
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.144g
Overall Dimensions (L x W x D) in mm:
5.00 x 2.40 x 14.00
