M7583-05

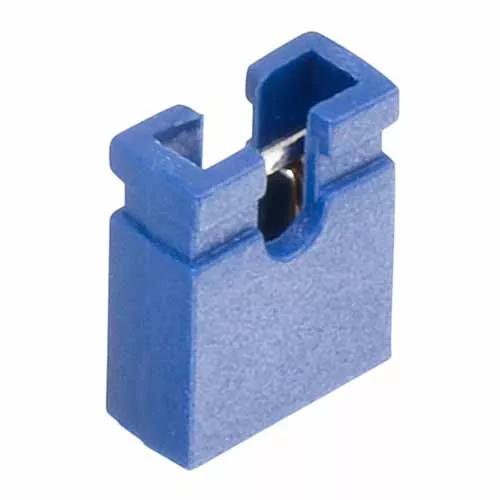

2 Pos. Female Jumper Socket, Open Shunt, Blue

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Blue housing color, Gold finish.
  • High Force, Single Operation.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

1A at 25°C

Operating Temperature:

-55°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Blue

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.088g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 6.00

Availability

15,489 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 10149
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3590
Distributor Newark
Location USA
Quantity (Updated Daily) 1750

Questions & Answers Ask a Question

Do you have a specification for the selective gold thickness?

The gold thickness is a gold flash, thickness is typically around the 0.03µ (1.2µ”).

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
