M7582-46

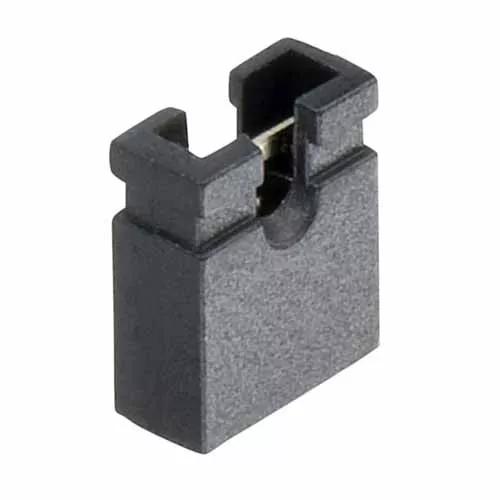

2 Pos. Female Jumper Socket, Open Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Black housing color, Tin finish.
  • High Force, Single Operation.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

1A at 25°C

Operating Temperature:

-55°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.089g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 6.00

Availability

44,940 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 16905
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 9724
Distributor Farnell
Location Europe
Quantity (Updated Daily) 9130
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 7700
Distributor Newark
Location USA
Quantity (Updated Daily) 1481
