M7582-05

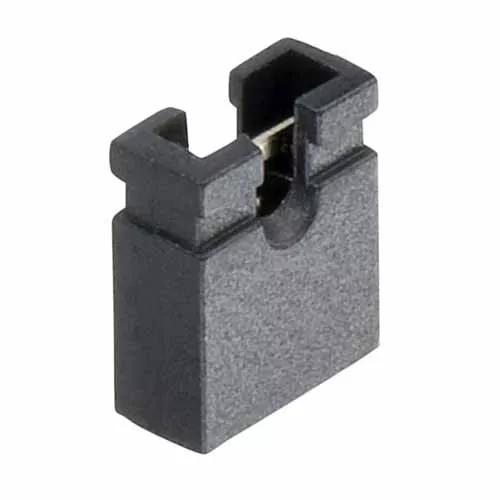

2 Pos. Female Jumper Socket, Open Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Black housing color, Gold finish.
  • High Force, Single Operation.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

1A at 25°C

Operating Temperature:

-55°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.088g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 6.00

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status49477
Farnell
Europe
Status9600
Genalog
Europe
Status2398
Mouser Electronics Inc
Global
Status19751
Newark
USA
Status9525

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M7580-M7583.pdf

ZIP

M7582-05 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M7580-M7583 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
