M7581-05

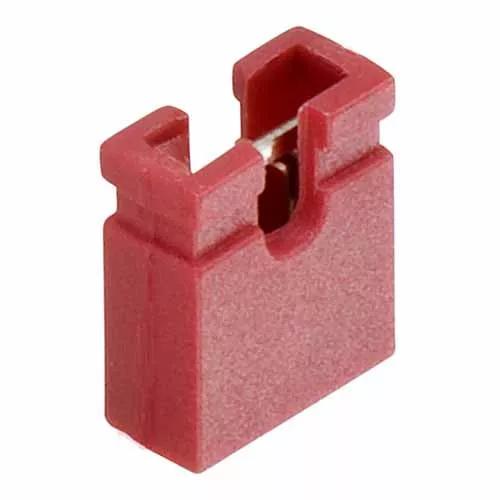

2 Pos. Female Jumper Socket, Open Shunt, Red

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Red housing colour, Gold finish.
  • High Force, Single Operation.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

1A

Operating Temperature:

-55°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.088g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.40 x 6.00

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status5186
Digi-Key
Global
Status37492
Farnell
Europe
Status36707
Mouser Electronics Inc
Global
Status28559
Newark
USA
Status5401
TTI Europe
Europe
Status20000
TTI Inc
USA
Status6100

*Stock available: contact distributor to purchase
