M7571-05

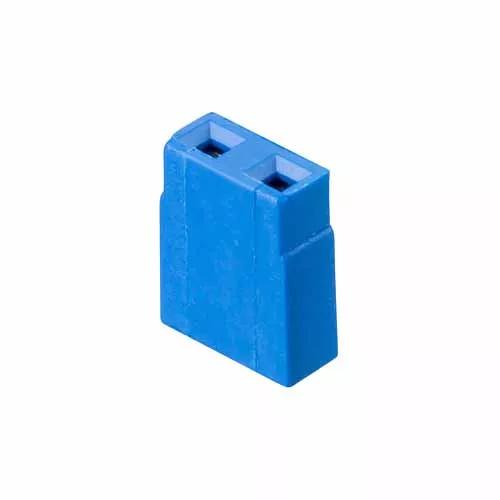

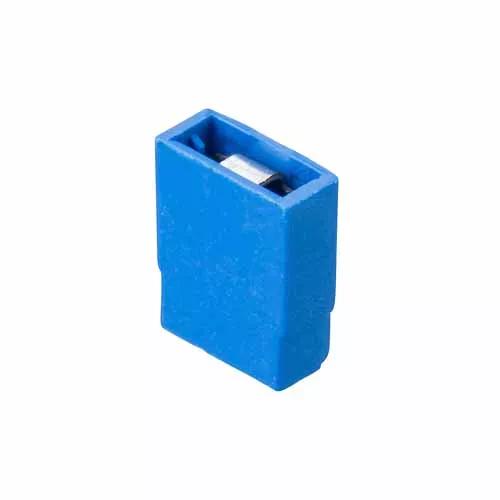

2 Pos. Female Jumper Socket, Open Shunt, Blue

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Blue housing color, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

3A at 25°C

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Blue

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.116g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.30 x 6.30

Availability

135,843 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 86285
Distributor Farnell
Location Europe
Quantity (Updated Daily) 18079
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 11062
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 8914
Distributor Genalog
Location Europe
Quantity (Updated Daily) 6177
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 3425
Distributor Newark
Location USA
Quantity (Updated Daily) 1901

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M7565-M7571.pdf

ZIP

M7571-05 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C003XX Component Specification - M7XXX Series (2.54mm pitch Jumper Sockets)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M7565-M7571 series
