M7567-46

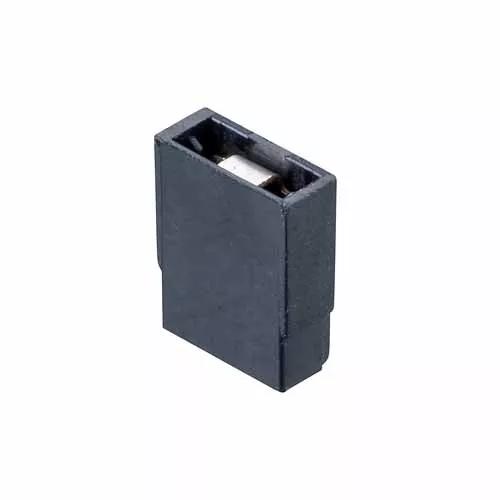

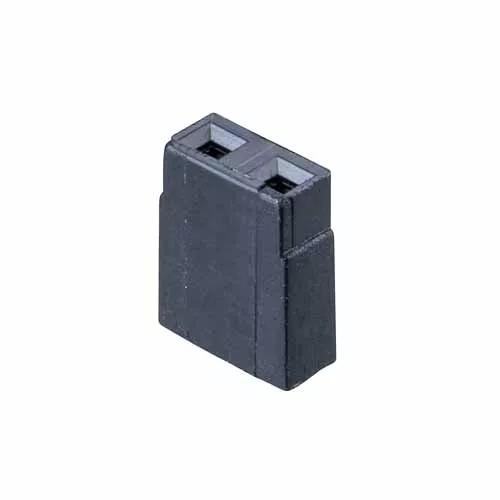

2 Pos. Female Jumper Socket, Open Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Black housing color, Tin finish.
  • High-Reliability Multi-Usage, up to 50 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.118g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.30 x 6.30

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status3799
Mouser Electronics Inc
Global
Status3245

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M7565-M7571.pdf

ZIP

M7567-46 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C003XX Component Specification - M7XXX Series (2.54mm pitch Jumper Sockets)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M7565-M7571 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
