M7566-05

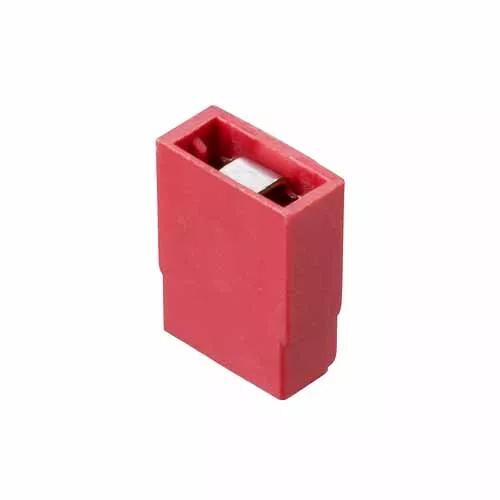

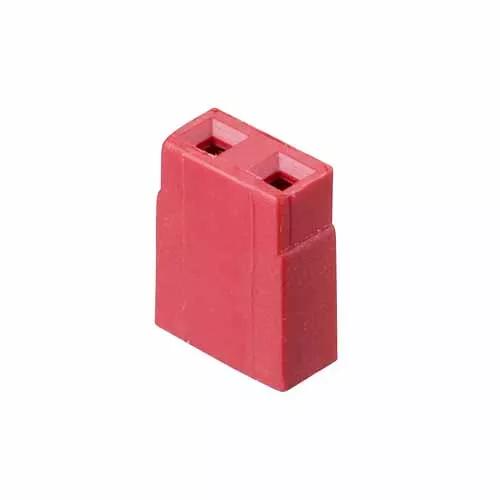

2 Pos. Female Jumper Socket, Open Shunt, Red

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt – Red housing color, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.64mm square

Current Rating:

3A at 25°C

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.116g

Overall Dimensions (L x W x D) in mm:

5.00 x 2.30 x 6.30

Availability

190,002 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 64000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 31165
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 23500
Distributor Anglia
Location Europe
Quantity (Updated Daily) 20705
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 18010
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 13322
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 11302
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 6000
Distributor Newark
Location USA
Quantity (Updated Daily) 1018
Distributor Genalog
Location Europe
Quantity (Updated Daily) 980
