M58-3800842R

40+40 Pos. Male DIL Vertical SMT Conn. (T+R)

0.80mm (0.031") Pitch PCB Connector - Archer .8

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

Double Row vertical board-to-board, surface mount plug connector with location pegs – 80 contacts (40+40).
High-speed connection with a data rate up to 12GHz, 24Gb/s.
Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.

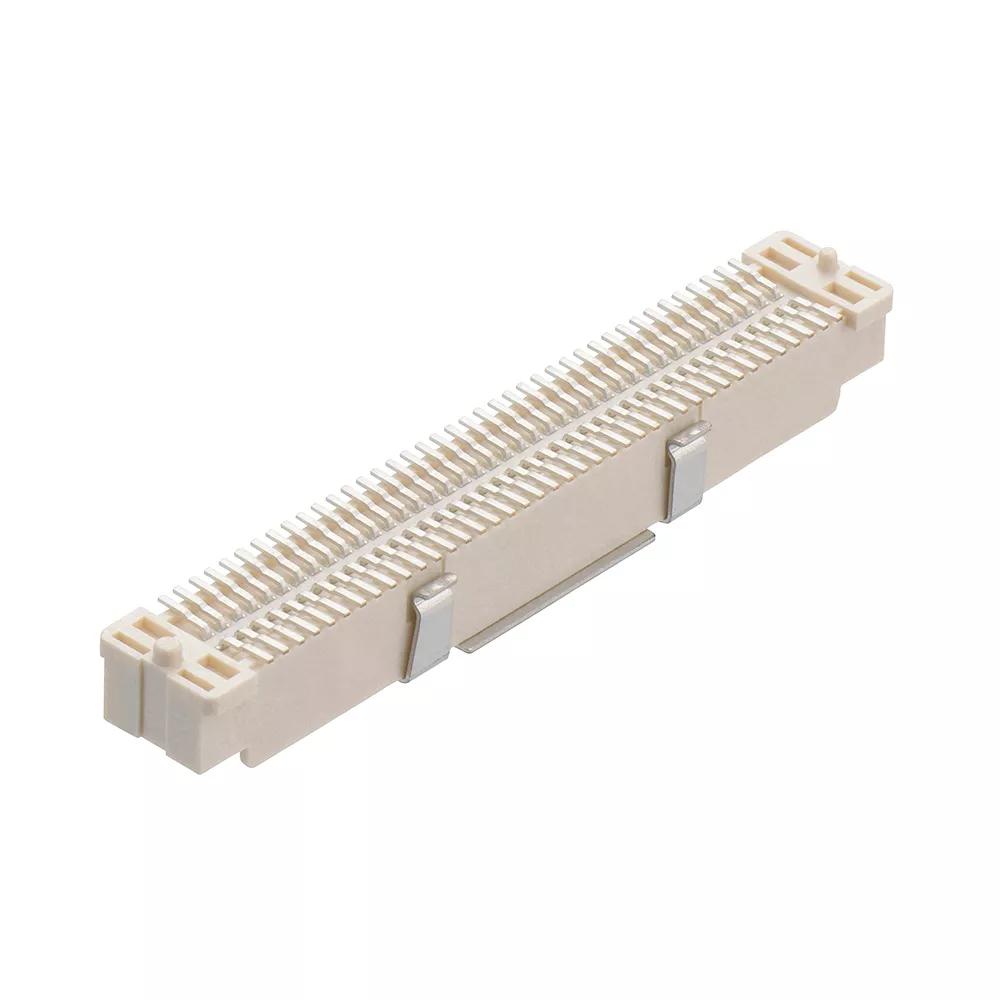

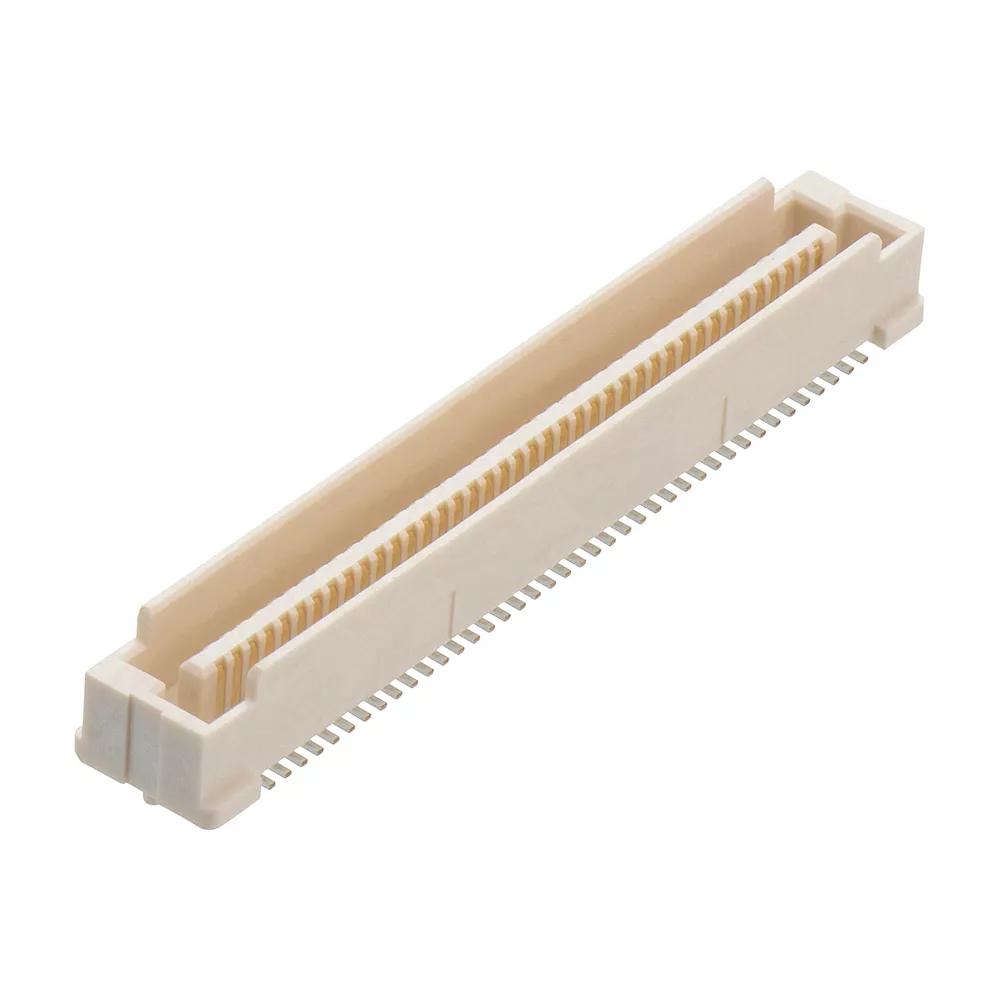

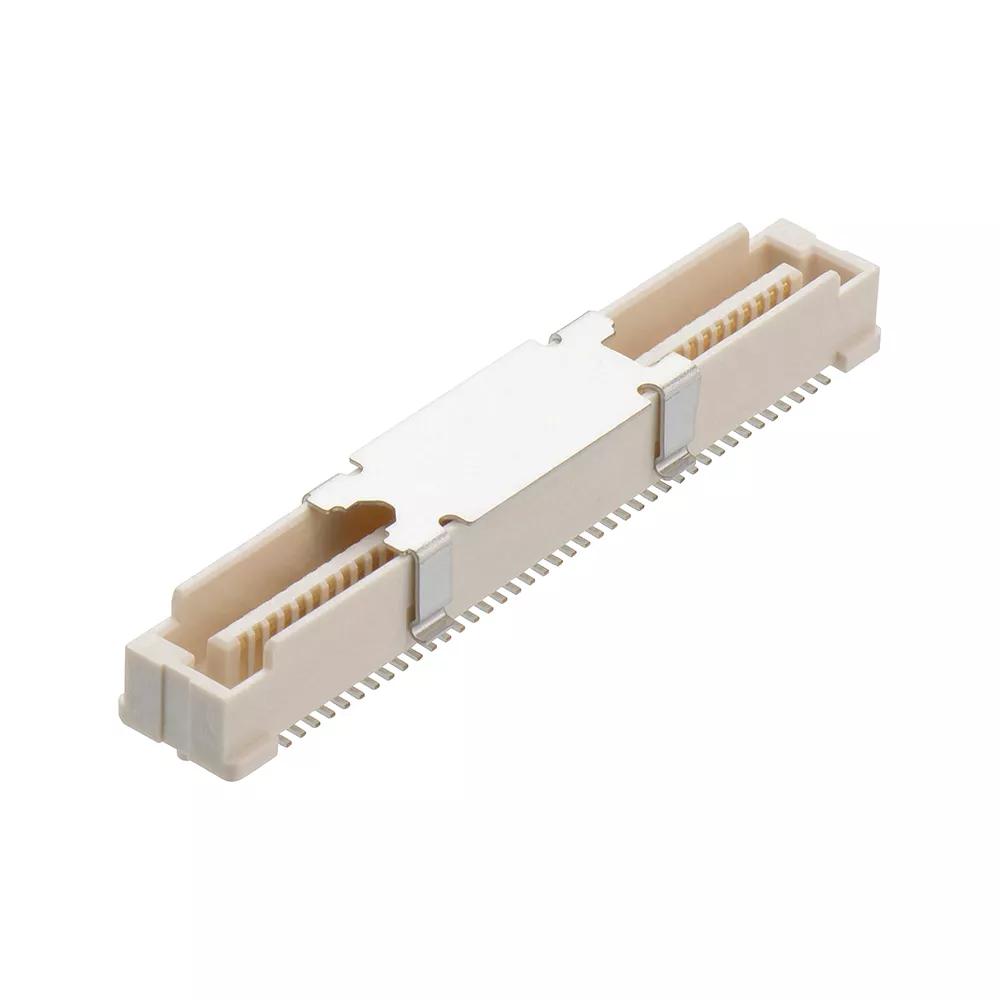

M58-3800842R - 40+40 Pos. Male DIL Vertical SMT Conn. (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

0.80mm (0.031")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 250°C for 5 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

1.124g

Overall Dimensions (L x W x D) in mm:

37.75 x 6.00 x 5.42

Height of Connector above PCB:

4.70mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
