Home > M58-3800442R
Active Product

M58-3800442R

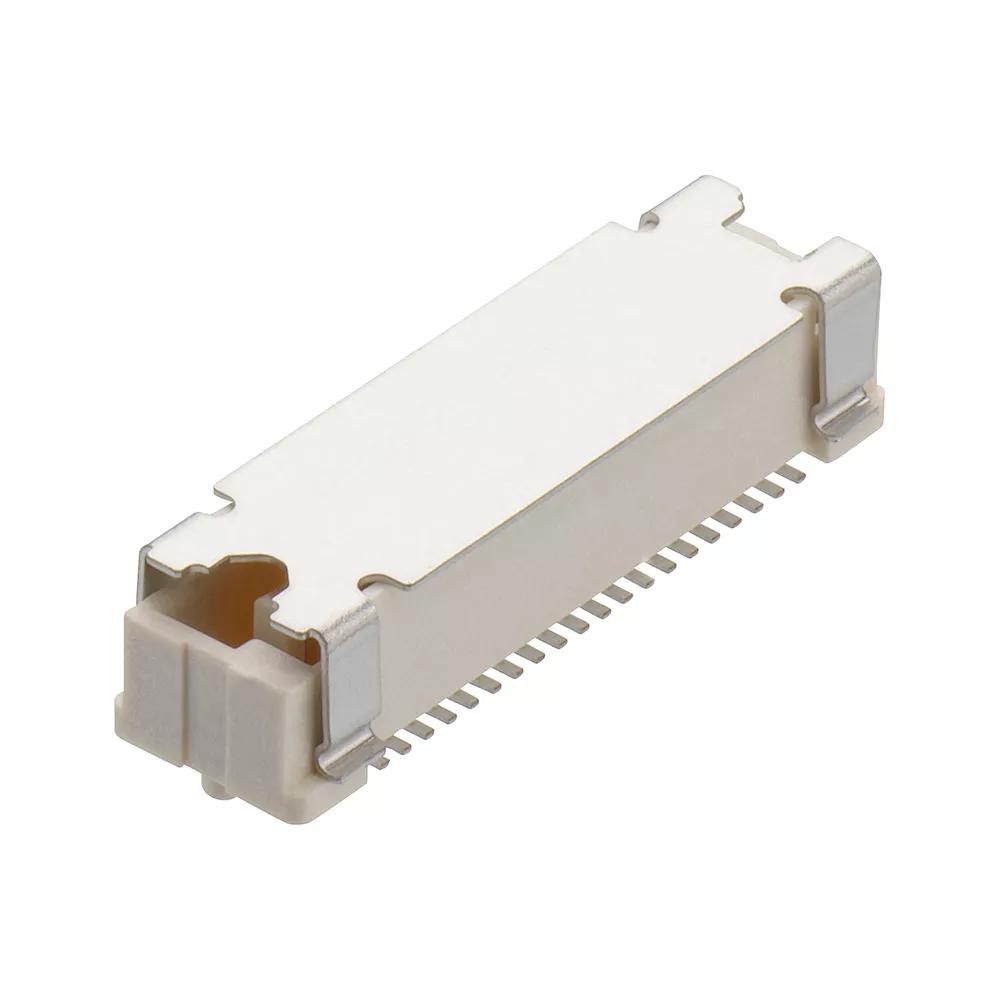

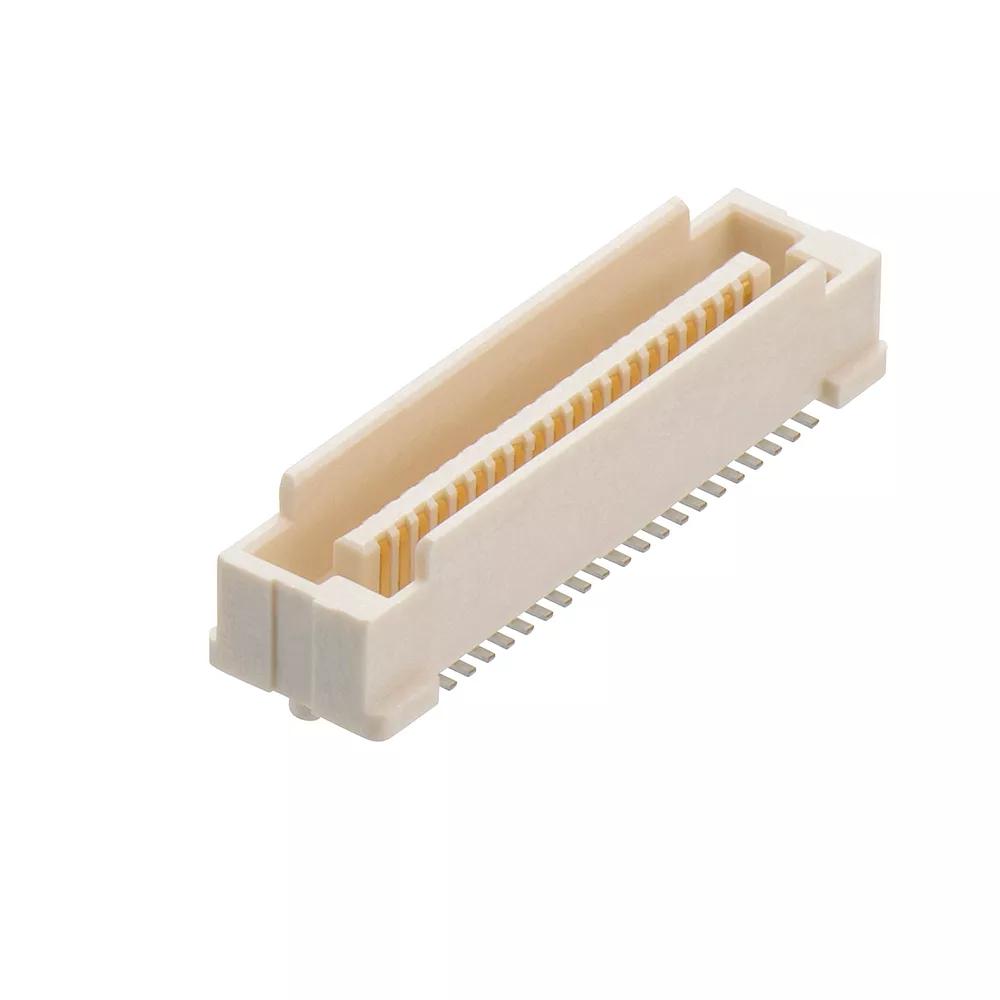

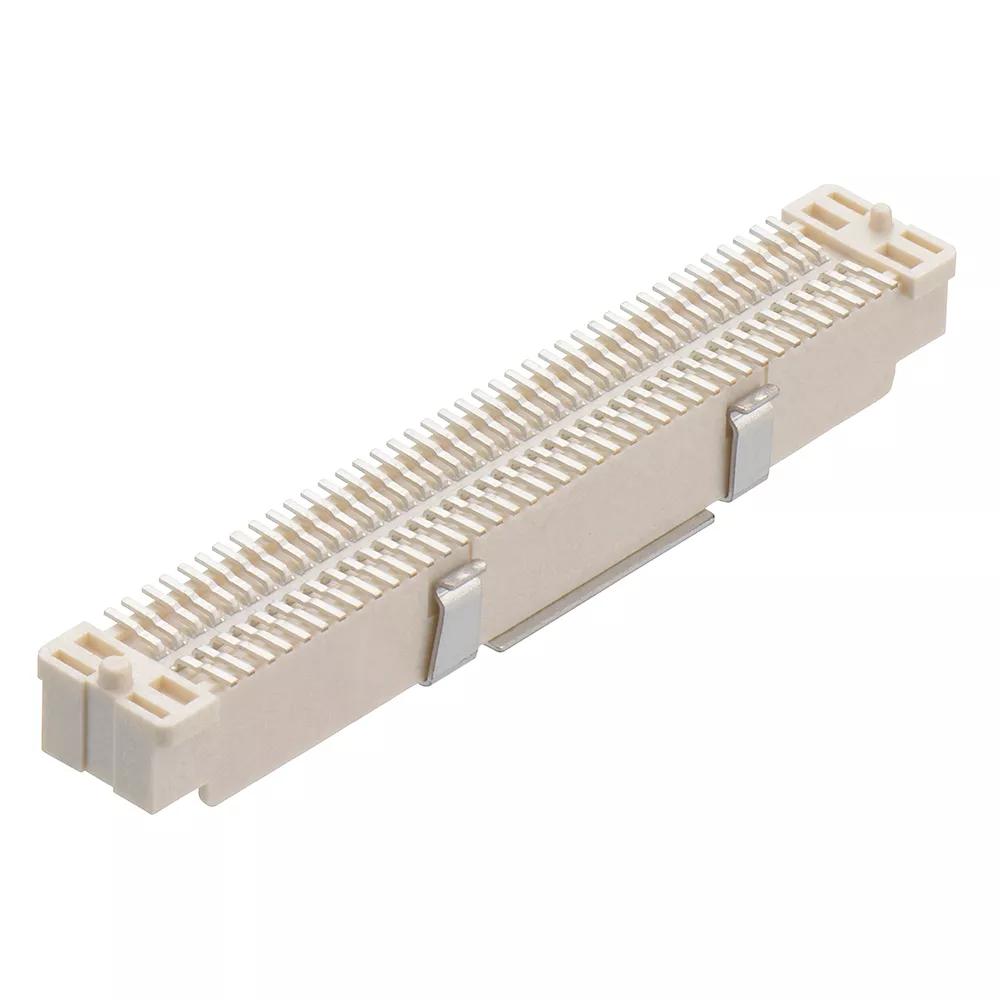

20+20 Pos. Male DIL Vertical SMT Conn. (T+R)

0.80mm (0.031") Pitch PCB Connector - Archer .8

Add to Favorites

6,153 in stock   Check availability

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row vertical board-to-board, surface mount plug connector with location pegs – 40 contacts (20+20).
  • High-speed connection with a data rate up to 12GHz, 24Gb/s.
  • Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.

Technical Details

Specification

Contact Pitch:

0.80mm (0.031")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 250°C for 5 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.734g

Overall Dimensions (L x W x D) in mm:

21.75 x 6.00 x 5.42

Height of Connector above PCB:

4.70mm
