M58-3800342R

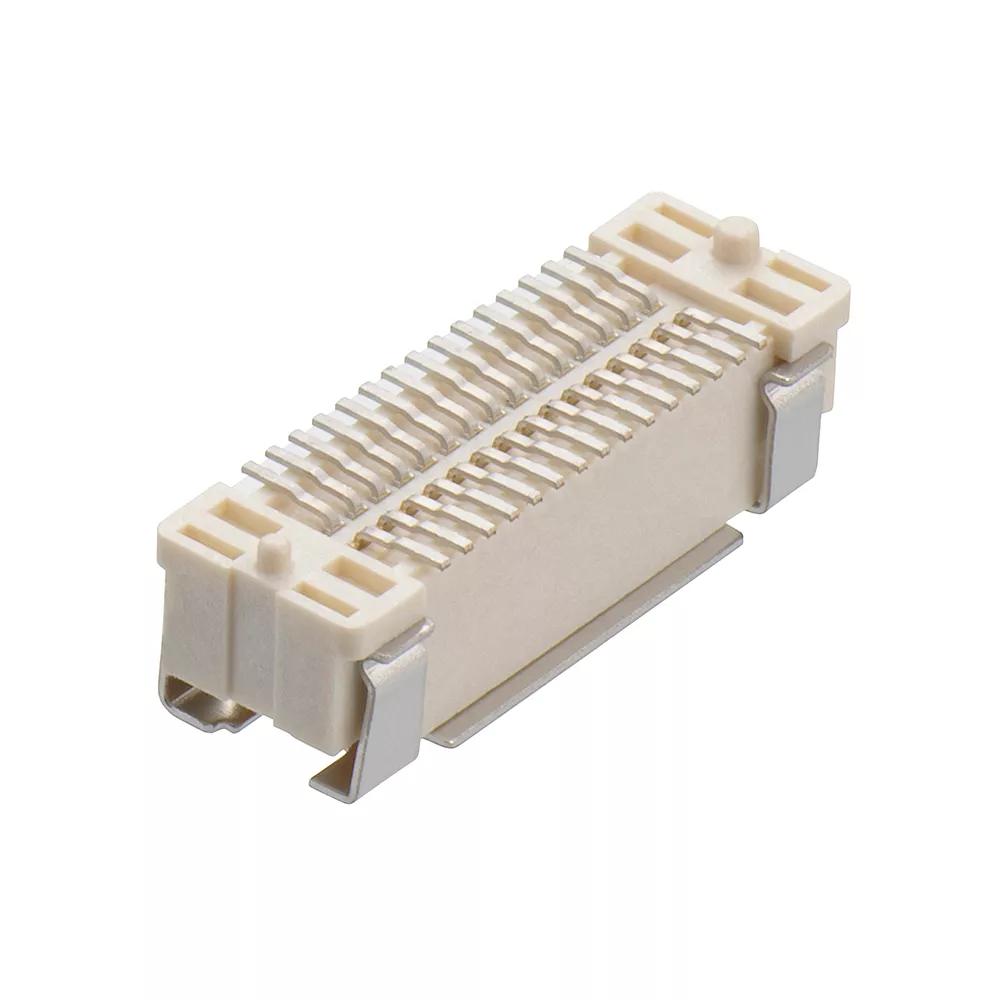

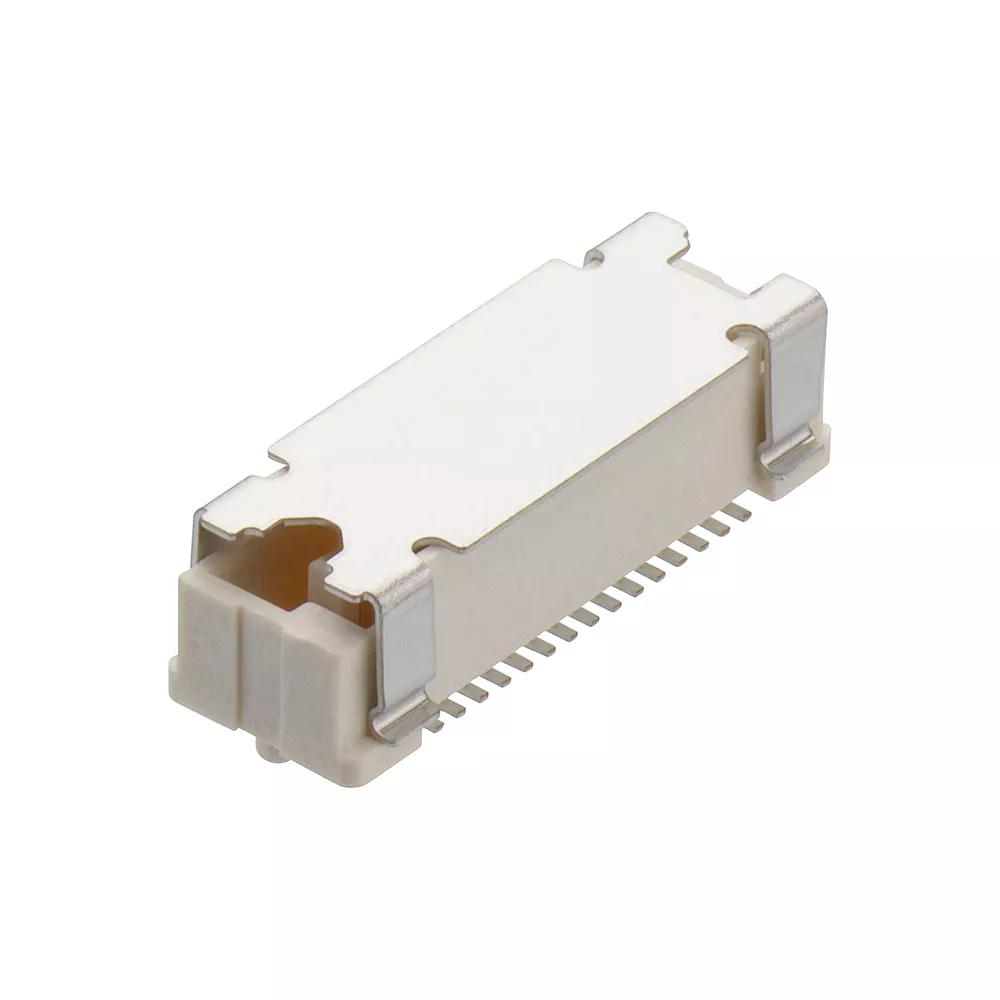

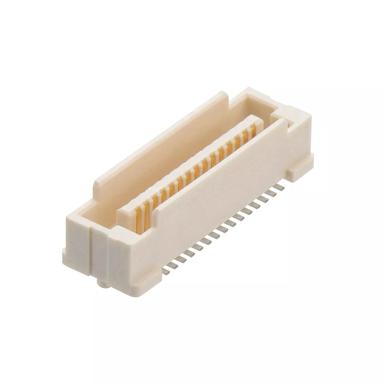

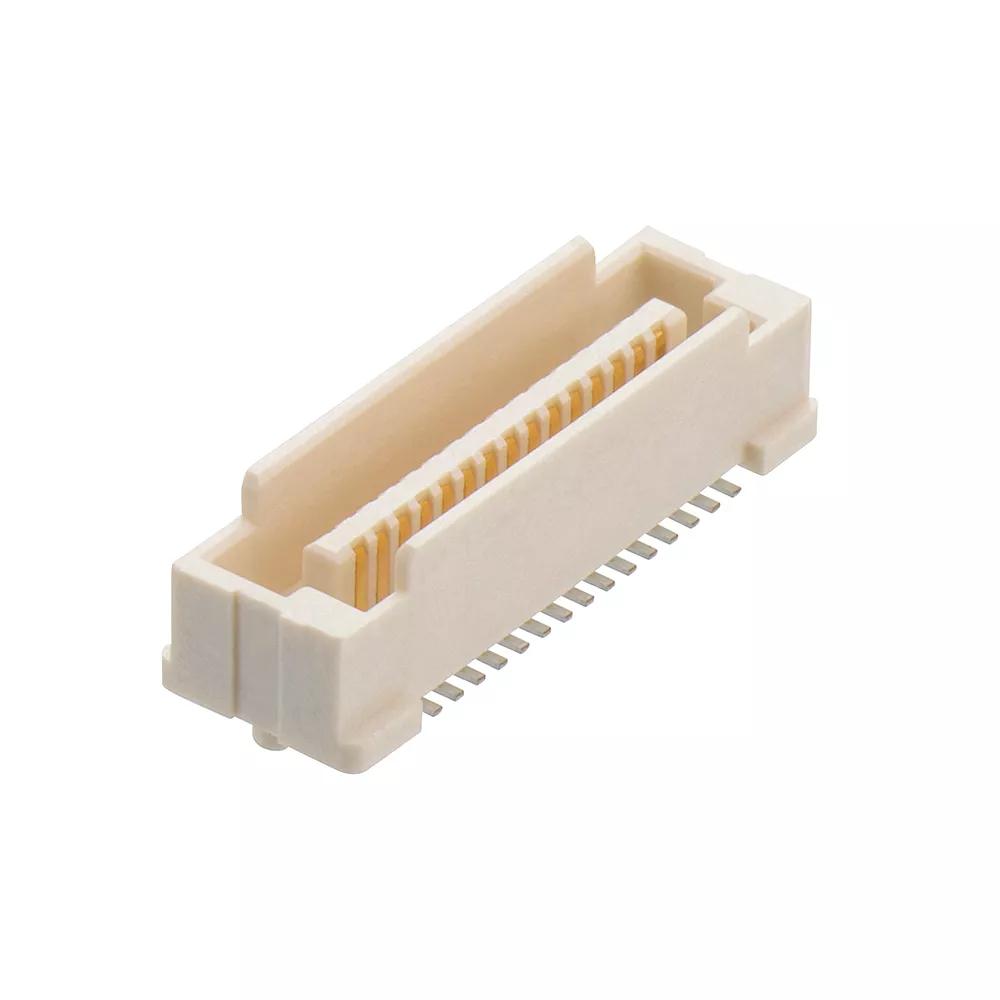

15+15 Pos. Male DIL Vertical SMT Conn. (T+R)


0.80mm (0.031") Pitch PCB Connector - Archer .8

  • Double Row vertical board-to-board, surface mount plug connector with location pegs - 30 contacts (15+15).

  • High-speed connection with a data rate up to 12GHz, 24Gb/s.

  • Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    0.80mm (0.031")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Surface Mount (SMT)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    30

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    LCP

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Height of Connector above PCB:

    4.70mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Surface Mount (SMT)

  • Current Rating:

    0.5A per contact

  • Soldering Data:

    Max Solder Temperature: 250°C for 5 seconds

  • Weight:

    0.637g

  • Dimensions:

    17.75 x 6.00 x 5.42

  • Operating Temperature:

    -40°C to +125°C

Downloads

    Environmental Compliance

  • M58-3800342R

  • Material composition for M58-380 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M58-380R.pdf

  • C053XX Component Specification - Archer .8 M58 Series (0.80mm pitch PCB Connectors)

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT080 - Archer .8 (M58 Series) - General Testing

  • Product Information

  • Product Training Module - Overview of the Archer .8 and Archer .5 ranges

  • Product Datasheet - ARCHER: Archer .5 and Archer .8 range (BBi)
